Gefen VGA to DVI Conversion Box
The VGA to DVI Conversion Box connects traditional analog video graphic cards (VGA) to DVI compliant digital monitors. The VGA to DVI Conversion Box, enables users to connect laptops or legacy PC computers equipped with HD-15 video connections, to the new DVI (digital visual interface) video display format.
How It Works

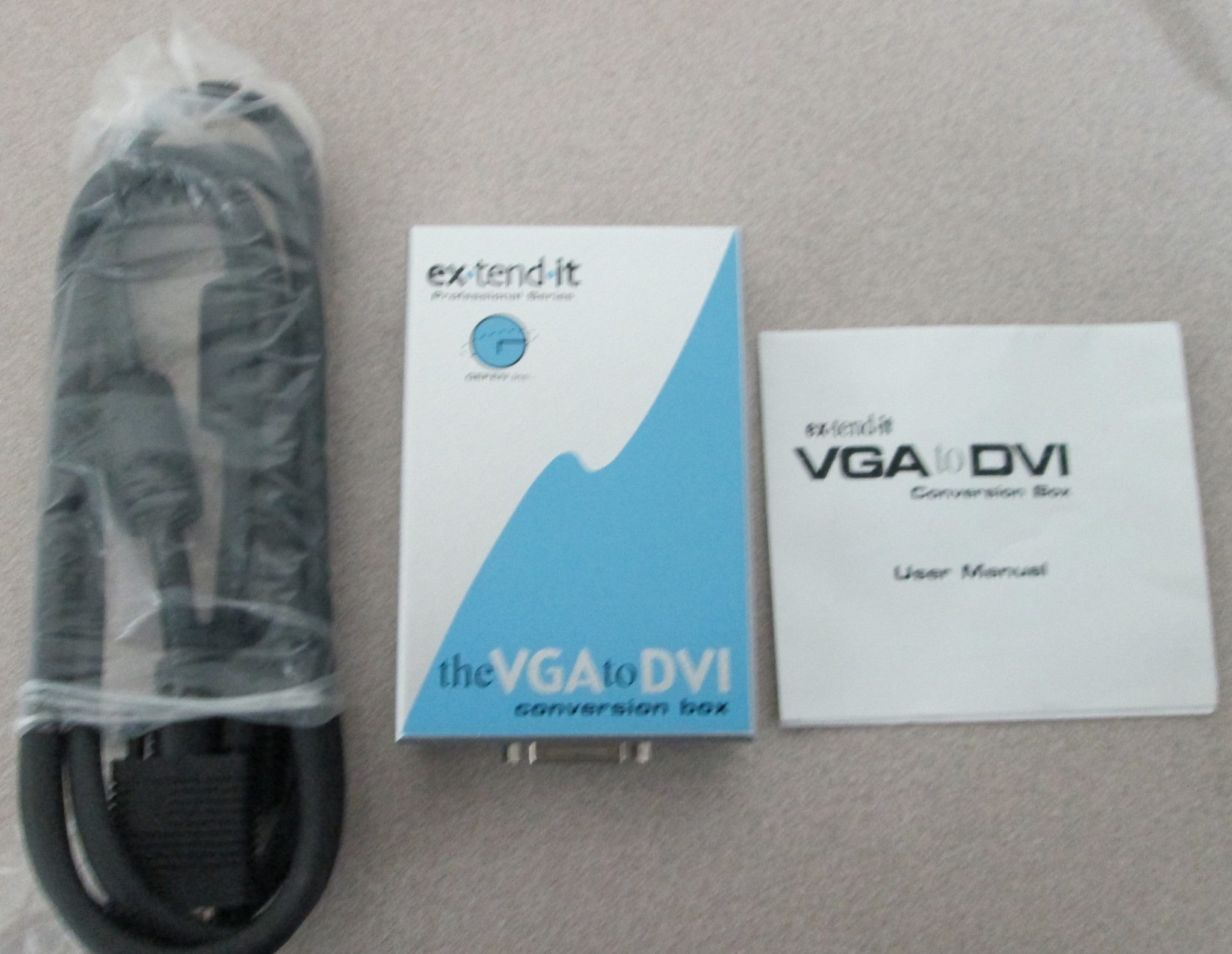

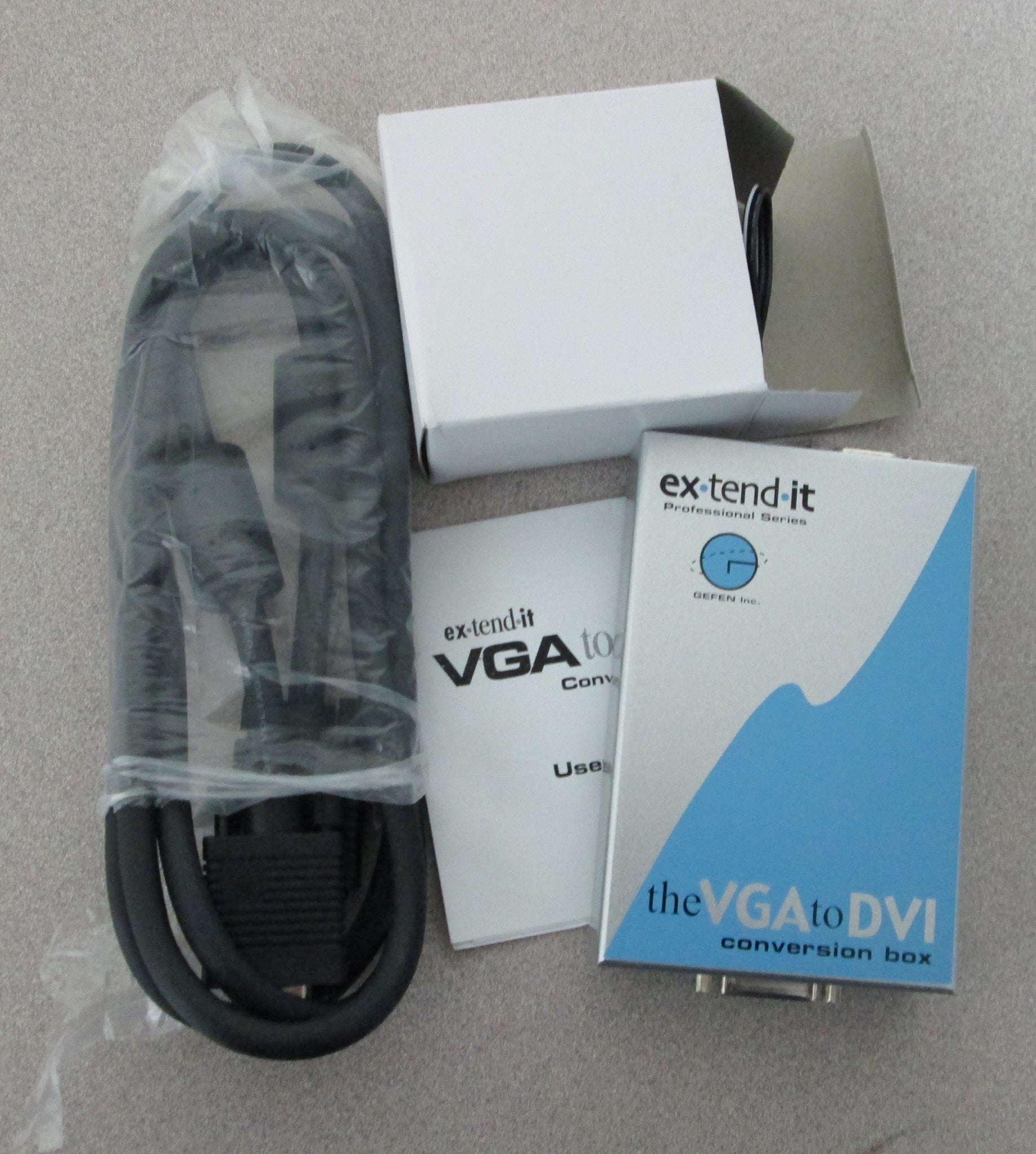

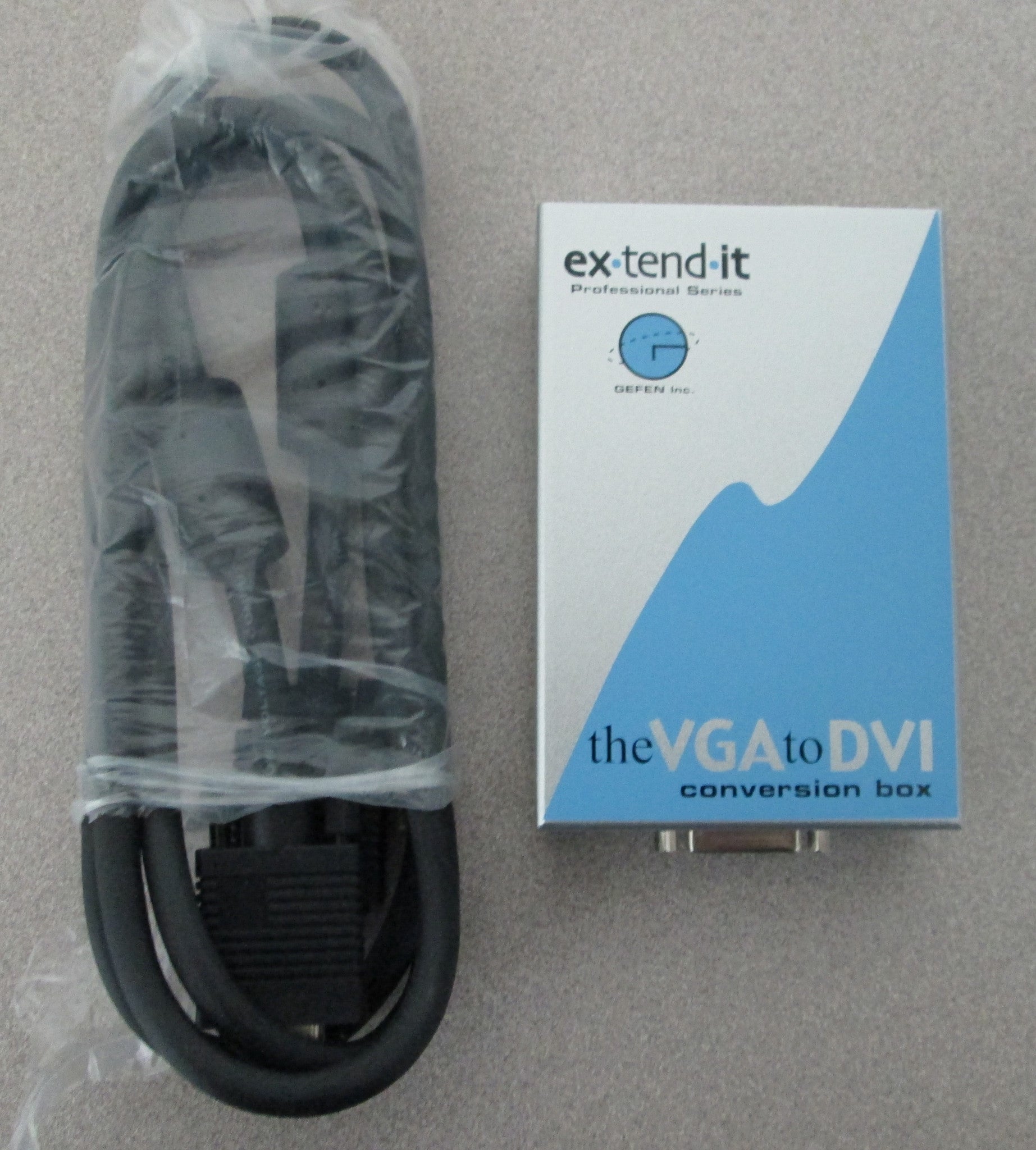

Simply connect the supplied VGA (M-F) cable to the input side of the VGA to DVI Conversion Box. Then connect the DVI monitor or projector to the DVI output of the VGA to DVI Conversion Box. The converter generates the compatible analog to digital conversion signals to make the connection between the analog input and the digital output work.Many different resolution settings are supported including: 1024 x 768; 1280 x 1024; 1600 x 1200 and 1920 x 1200. Also 1600x1024 for the 22" Cinema Display. One specific program must be selected based on the native resolution of the display the conversion box will be used with. The wrong program will result in no picture on the screen.
Option #1 - 1280x1024 and 1600x1200 VESA standard timing
Option #2 - New 20" Apple Cinema DVI Display (1680x1050)
Option #3 - New 23" Apple Cinema DVI Display (1920x1200)
Option #4 - 15"(1024x768), 17", 20", 22", and 23" Apple ADC Displays
Option #5 - 1280x1024 @ 60Hz Locked
Option #6 - 17" ADC Display w/ OSX Tiger
Option #7 - Formac Gallery 2010
Features:
* Connects computers with VGA (HD-15) analog video graphics output to DVI or ADC digital monitors or DVI equipped projectors
* Maintains up to 1920 x 1200 x 60 resolution
* Supports Apple flat panel displays
* Supports DDWG standard for DVI monitors
Specifications:
* Digital Video Amplifier Bandwidth: 165 MHz
* VGA Amplifier Bandwidth: 350 Mhz
* Input Video Signal: RGBHV: 0.7 Vp-p, 75 ohm H/V: 3 to 5 Vp-p TTL, Y: 1 Vp-p 75 ohm Pb/Cb, Pr/Cr: 0.7 Vp-p 75 ohm
* Input DDC Signal: 5 volts p-p (TTL)
* DVI Connector: DVI-I (29 pin) female (digital only)
* VGA Connector: HD-15 female
* Power Consumption: 10 watts (max)
* Power Supply: 5V DC
* Dimensions: 3.5"W x 1"H x 5.25"D
* Shipping Weight: 2 lbs.
