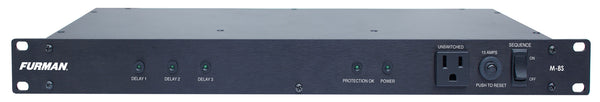

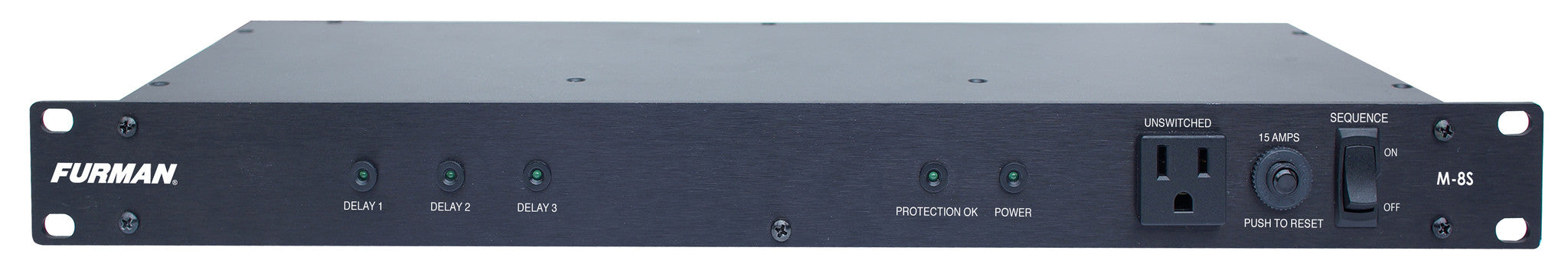

Furman Sound M-8S

SKU: M-8S
$ 349.95 -20%
$ 279.00

Merit M-8S Power Sequencer is the perfect low-cost AC power solution for any rack mount system. Install an M-8S in your rack, and the eight outlets in the rear panel will power up in sequence and protect all your equipment up to a 15-amp load.

Features:

  • Noise Filtration: AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI)
  • Surge Protection: Spike & surge protection ensures equipment stays safe and your power stays clean
  • 9 Total Outlets: 8 rear panel outlets and 1 front panel outlet
  • 15 Amp Rating: 15 amp rating, with circuit breaker
  • "Protection OK" Indicator: Front panel indicator LED lets you know that your equipment is being protected
  • Wall Wart Spacing Indicator: Rear outlets have been spaced to accommodate even the bulkiest of wall warts and adapters
  • Power Sequencing: Prevents excessive inrush currents.

Maximum Output Current: 15 amps, 120 VAC (Thermal breaker)
Line Cord: 14AWGx3, 10 feet, black, fixed, NEMA 5-15P plug
AC Receptacles: • Convenience Outlet (Front Panel) 1 Un-switched NEMA 15-5R
• Rear Panel Outlets: 2 Un-switched NEMA 5-15R (1 duplex),
• 6 Sequenced NEMA 5-15R (3 duplexes, each controlled by separate relay)
Standard level AC Surge Protection : Merit Class (sacrificial)
Spike Protection Mode : Line to neutral, zero ground leakage
Max Continuous Operating Voltage : 130V RMS
Max Clamp Voltage : 500 Volts Peak
Peak Impulse Current : 12,000 Amps
Energy Rating (2 X 820μS) : 225 Joules
AC Filtering : Standard level Pi LCR Filter
Noise Attenuation : >26dB, 100 Khz to 1 MHz
Operating Temperature Range : 5C (40F) to 40C (105F) degrees
Humidity Range : <90% rH (Relative Humidity)
Rocker Switch : Front panel, Sequence (ON, OFF)
Thermal Circuit Breaker : Front panel, push to reset
Front Panel Indicators : Delay 1, Delay 2, Delay 3, Power, Protection OK
Rear Panel DIP Switches : 12V Mode On/Off, GND Mode On, Momentary/Maintained
Potentiometer : Rear panel, time calibration fine tune delay adjust
Remote Terminal : +5-30VDC In, 12VDC (12mA) Out
Remote Terminal : Phoenix type 4-Pin Connector with Screw terminals; +12V, STAT, REM, GND (Class 2 Wiring)
Dimensions : 19"L x 8.75"D x 1.75"H – ANSI 1RU
Weight : 7 lbs.
Power Consumption : 5 Watts
Safety Agency : C/CSA/US
