$ 179.99 -22%
$ 139.99

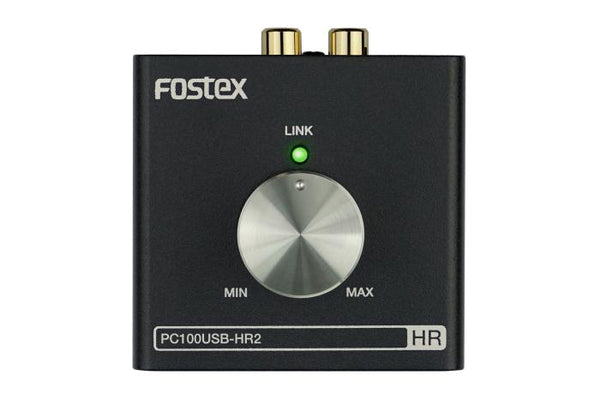

Model PC100USB-HR2 is a desktop type of volume controller with built-in USB/DAC that comply with 24bit 96kHz high resolution audio playback. The ideal tool for controlling the audio level of your PC when using a powered speaker system such as Fostex speakers PM0.1, PM0.3(d) etc.

Main Features

  • Quick and easy volume control of the connected powered speakers right next to your PC.
  • High resolution DAC compatible up to 24bit / 96kHz and audio quality parts realize best performance in this affordable price range.
  • Works as a quality headphone amp too

In Detail

  • Quick and easy volume control of the connected powered speakers right next to your PC.
  • High resolution DAC compatible up to 24bit / 96kHz and audio quality parts realize best performance in this affordable price range.
  • Works as a quality headphone amp too
  • No external power is required as it works with USB buss power.
  • No need to install extra driver software both on PC and Mac
  • High class looking in silver finish and well-weighted volume knob
  • Works right out of box with the supplied USB and RCA pin cable

Specifications

Connectors

[USB] connector
Connector type:     USB Connector B
Sampling frequency:    32, 44.1, 48, 88.2, 96 kHz
Quantization:    16/24bit

[OUTPUT (L,R)] connectors
Connector type:     RCA jack
Applicable load impedance:     10k ohm
Nominal output level:     +6dBv (0dBFS)

[PHONES] connector
Connector type:     3.5mm stereo mini jack
Applicable load impedance:     32 ohm or more
Maximum output power:     30mW + 30mW (32 ohm load, THD < 0.5%)

General

Dimensions:    66 (W) x 44 (H) x 70 (D) mm (excluding legs)
Weight:    Approx. 200g
Power requirement:    USB bus power (5V, 500mA)
Max Power Consumption:    2.5W
Supplied accessories:     USB2.0 cable (AB type, 1m) x 1
    RCA – RCA pin cable (1m)   x 2
