Flock Audio PATCH XT

Sale price$ 12,999.00 Regular price$ 13,999.00
Save $ 1,000.00

Call us at 1-877-223-8858 or Ask a Question below

Flock Audio PATCH XT


Flock Audio PATCH XT

The highly anticipated and long awaited PATCH XT System harnesses the advanced analog routing technology of the PATCH Series of products in a mammoth I/O configuration of 192 Points (96 Inputs / 96 Outputs). Meticulously designed, the PATCH XT System was created for power users who need to get the most of out of their analog hardware routings capabilities. Equipped with the same Patented Matrix Technology as our flagship model PATCH, the XT System boasts some sought after upgrades including Locking USB Host Connector, CAT5 Ethernet Network Host Connector option, Beautifully machined anodize panel among many other upgrades. Visit www.flockaudio.com/patchxt for more details.

In the Box:

  • PATCH - (3U Hardware Rack Unit) Dimensions: 19" (W) x 5.25" (H) x 12" (D)
  • USB 2.0 - (6 ft) Host Control Cable (USB-A to USB-B) w/ Locking USB Connection
  • Power Supply - Internal Power (110V or 220V) Power Supply
  • Power IEC Cable - (Shipped with IEC Plug based upon customer region)
  • 6 Step Quick Start Setup Guide
  • Hardware Index Setup Template


  • Computer Connectivity: USB 2.0
  • Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer

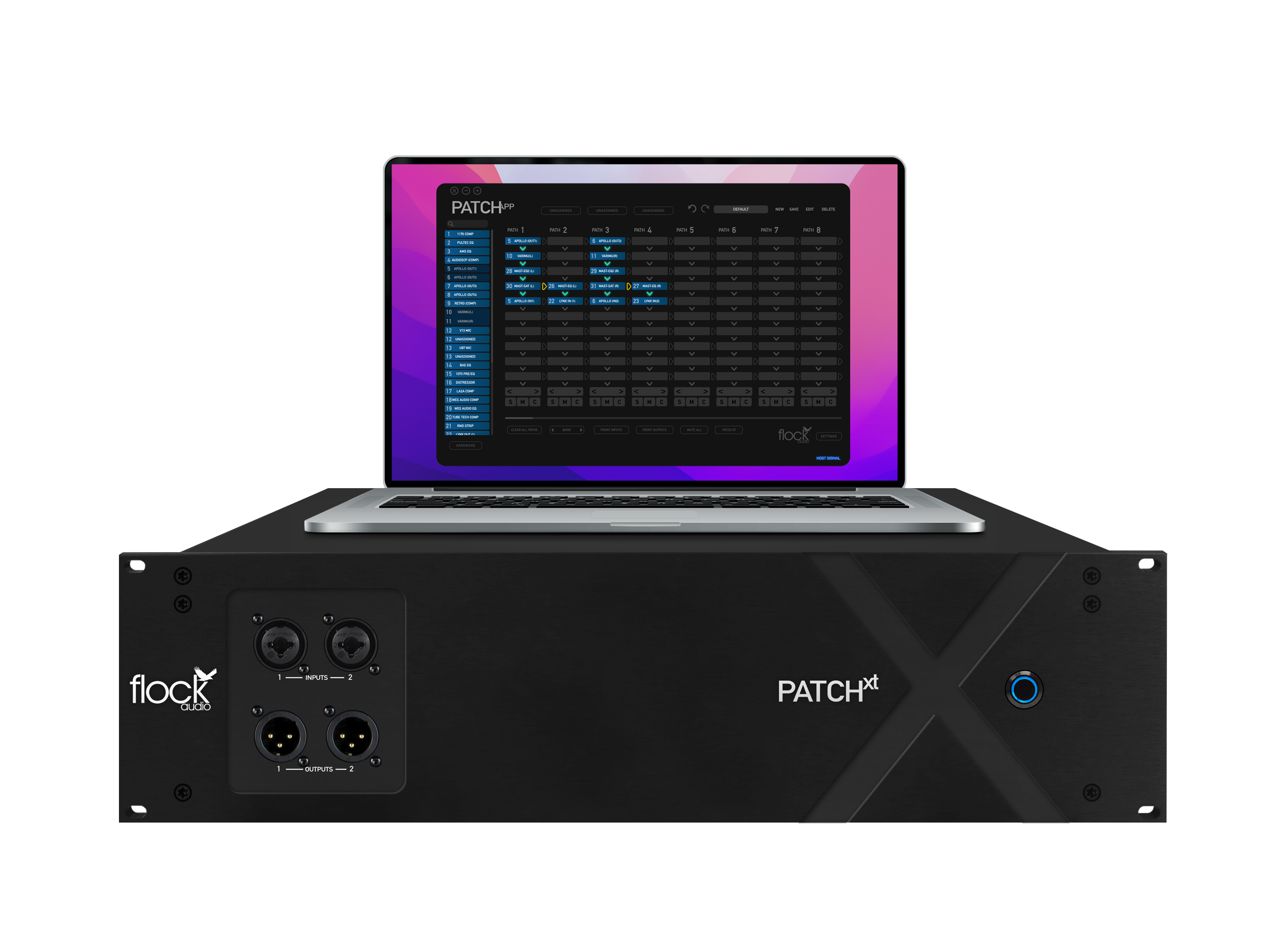

  • Software: PATCH APP (Online Download)
  • Chassis: 3U Rackmount (13" Deep)
  • Patch Point Connections: 192 Total - 96 Inputs / 96 Outputs (Expandable with all PATCH Models)
  • 48v Phantom Power: 32 Channels Independently Controllable

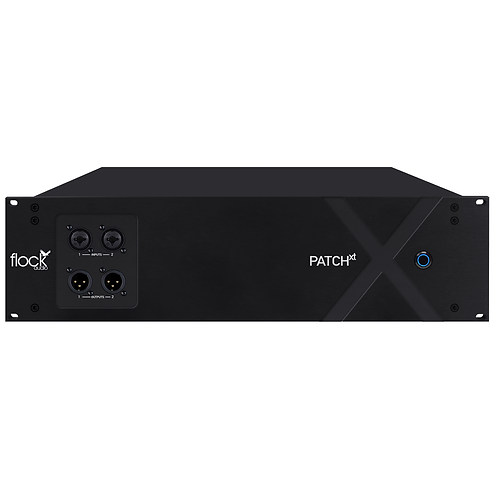

  • Front Connectors: 2x Combo TRS/XLR Inputs & 2x XLR Outputs
  • D/A or A/D Conversion: No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path
  • Routing System: Patended Flock Audio Matrix Technology
  • Audio Detection: Input Analog Audio Detection Functionality
  • Sleep/Wake Function: Remote Control PXT's On/Off via PATCH APP Software

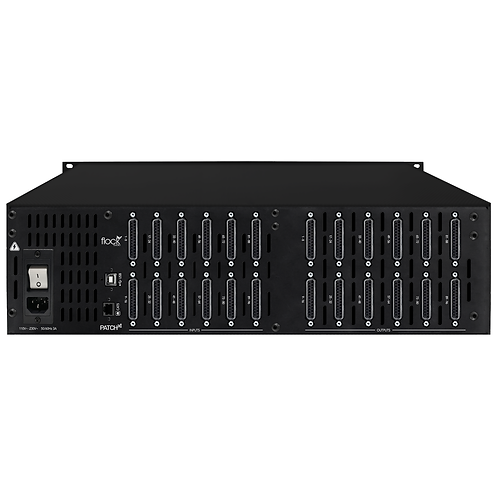

  • Analog Connections: DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)
  • Warranty: 1 Year Total System + Included Cables Manufacturers Warranty
