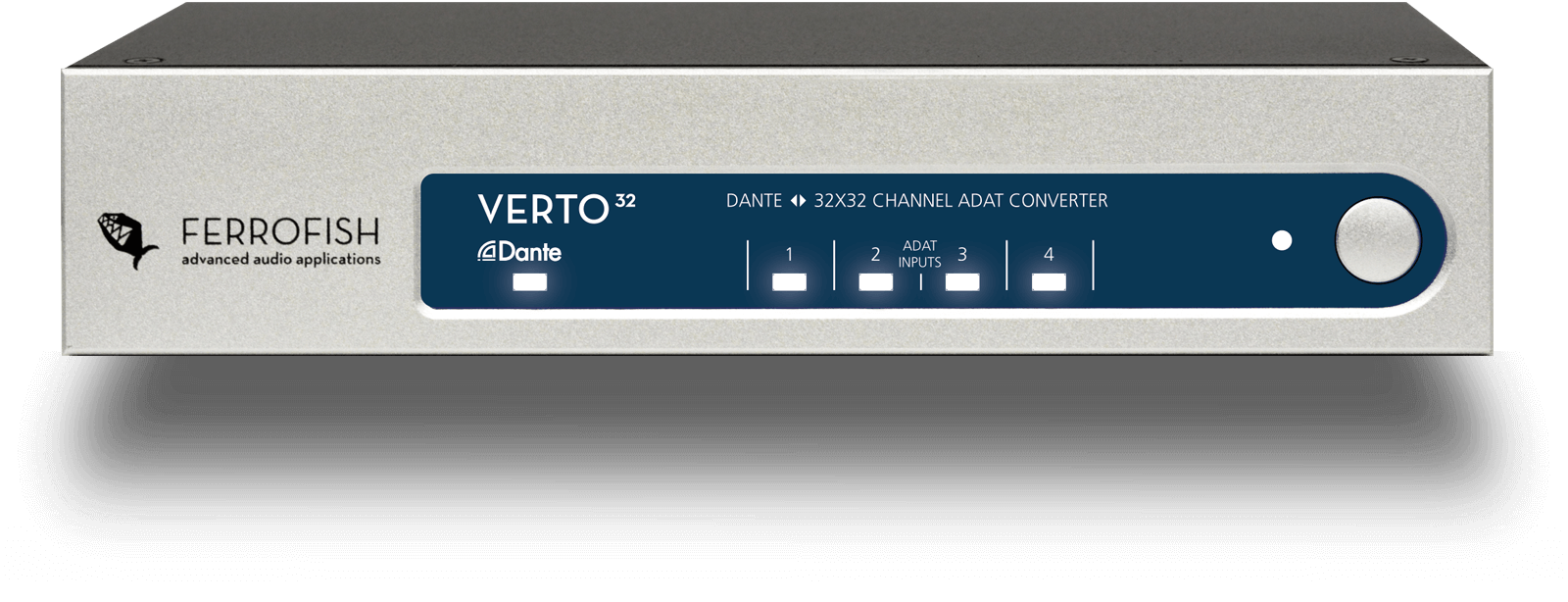

Ferrofish Verto 32 - 32 channel ADAT - Dante Format Converter
Ferrofish

Ferrofish Verto 32 - 32 channel ADAT - Dante Format Converter

Sale price$ 1,249.00 Regular price$ 1,499.00
Save $ 250.00
SKU: Verto 32
Call us at 1-877-223-8858 or Ask a Question below

Ferrofish Verto 32 - 32 channel ADAT - Dante Format Converter

Model

Ferrofish Verto 32 - 32 channel ADAT - Dante Format Converter

Dantify your equipment. Easy.

Dante is the de facto standard for networking audio equipment. With the Verto 32 it’s now possible to easily integrate up to 32 x 32 channels via ADAT into a Dante network. No matter which ADAT device you use – the Verto 32 makes all channels immediately avalilable in the network: “plug and play”.

The ultra compact device has 8 ADAT connectors: 4 for transmitting, and 4 for receiving digital data (8 channels each).

On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto 32 supports up to 96kHz sample rate, MIDI jacks for control, and BNC wordclock jacks for external synchronization.

Want your beloved equipment to survive? Add Verto. Done.

Dante Plug & Play
Integrate the Verto 32 seamlessly into your Dante network. Just plug it in and the device is visible on the network and ready to be routed freely using the Dante Controller software. Together with the Dante Virtual Soundcard, also from Audinate, the Verto 32 turns into a high channel ADAT audio interface.

Additional features
The VERTO 32 is equipped with a MIDI port and two BNC wordclock connectors. This way an external Wordclock can be fed to the Dante network, or the Dante wordclock can be used for external devices.

VERTO 32 SPECIFICATIONS


Dante I/O

  • 2x RJ-45 Ethernet port (PRIMARY/SECONDARY), 1 GBit Network
  • 64 x 64 channel I/O (Dante Brooklyn II board built-in)

ADAT I/O

VERTO 32: 4x ADAT Input + 4x ADAT Output, optical TOSLINK

Channel count:

  • 32×32 channels at 48kHz,
  • 16×16 channels at 96kHz



VERTO 64: 8x ADAT Input + 8x ADAT Output, optical TOSLINK

Channel count:

  • 32×32 channels at 48kHz
  • 16×16 channels at 96kHz
MIDI I/O
  • 2 x DIN5 connector for MIDI embedding/de-embedding

Wordclock I/O

  • BNC: 1 x input, 1 x output
  • 75 Ohm Termination set by default (switchable via Dante)

Power Supply

14.4VA (1.2A at 12V)

  • Polyfuse internal, self-resetting
  • 1 x power supply included

Operation

  • Temperature range: 41°F up to 113°F (+5°C up to +45°C)
  • Humidity: <75%, non-condensing

Weight/Size

  • Weight: 0,9 kg
  • Dimensions: 22 x 9 x 4,5 mm (without rack ears)

Optional accessories

  • 19“ Rack mountain kit, metal (for mounting 1 x Verto in a 19” rack-space)
  • Multi-range Power Supply 12V (EU)
  • ADAT Cable Locking Plate (Part. No. 7027)
