More than a Compressor

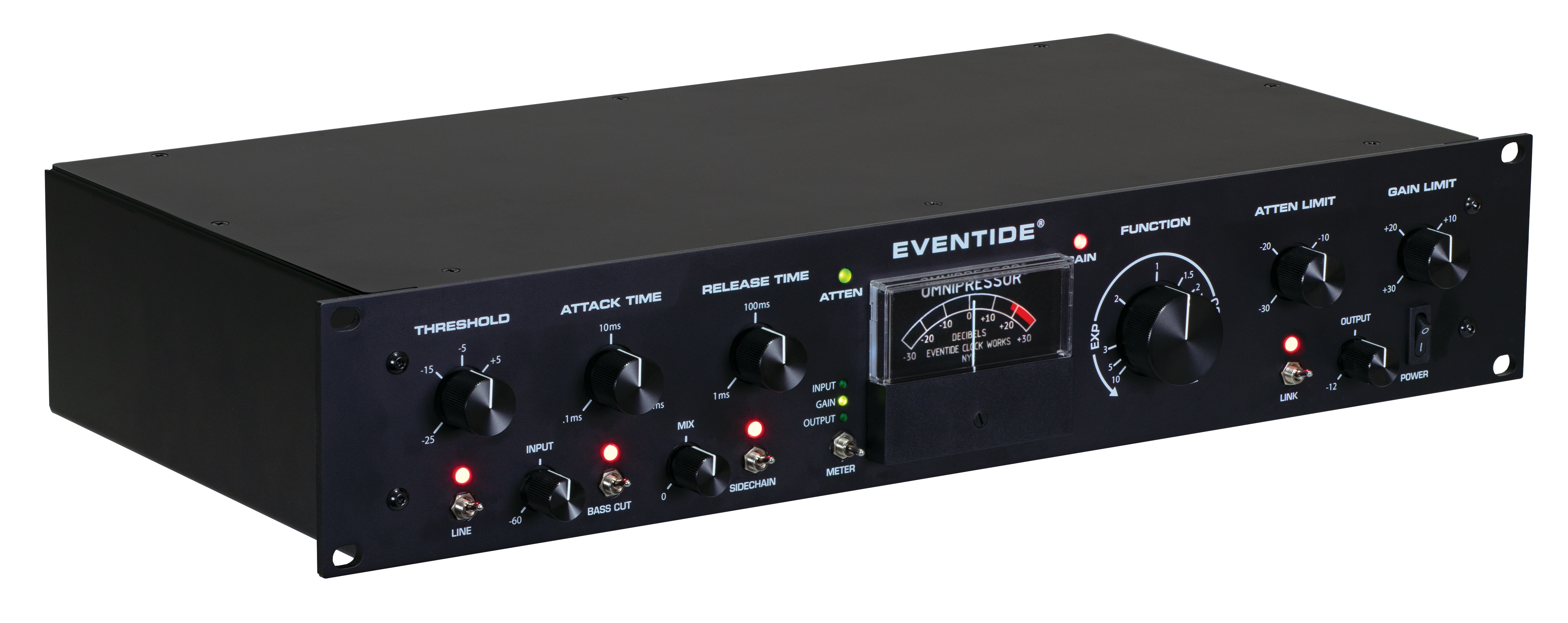

The 50th anniversary Model 2830*Au Omnipressor® is a professional-quality dynamic modifier, combining the functions of an analog compressor, expander, noise gate, and limiter in one convenient package. Its dynamic reversal feature makes high-level input signals lower than corresponding low-level inputs. Musically, this reverses the attack-decay envelope of plucked strings, drums, and similar instruments and gives the effect of “talking backward” when applied to a voice signal.
The new 50th anniversary model incorporates professional Lundahl transformers on both input and output, a switchable active-balanced side-chain, stereo and master linking capability and a mix control for parallel compression applications. Balanced/unbalanced XLR and TRS options are provided throughout.
Features
-
Switchable External Side-chain — fully integrated version of the original
-
Mix/Blend Control — allows for built-in parallel compression
-
Configurable Stereo/Master Linking — useful for bus compression and multi-channel dynamics processing
-
Dynamics Processing — capable of creating otherworldly sounds
-
Dynamic Reversal — the first of its kind, soft signals come out loud and loud signals come out quiet, simulating tape reversal, a near unique attribute of this versatile compressor
-
Function Control — sets a ratio over a continuous range allowing extreme expansion, to infinite compression, and is even able to push further into dynamic reversal
-
Variable Control of attack and release time
-
Variable Control of maximum gain and maximum attenuation
-
Gating — amplitudes of signals that fall below a set threshold are ‘squooshed’
-
Expansion — widen a signal’s dynamic range, louder gets louder, softer gets softer
-
Compression offers variable control of compression ratio
-
Infinite Compression — if you want everything to come out at the same level, this is the feature for you
-
Limiting — a fast, versatile limiter, useful for maintaining a loud sound
-
Intuitive Interface — clean and easy to operate

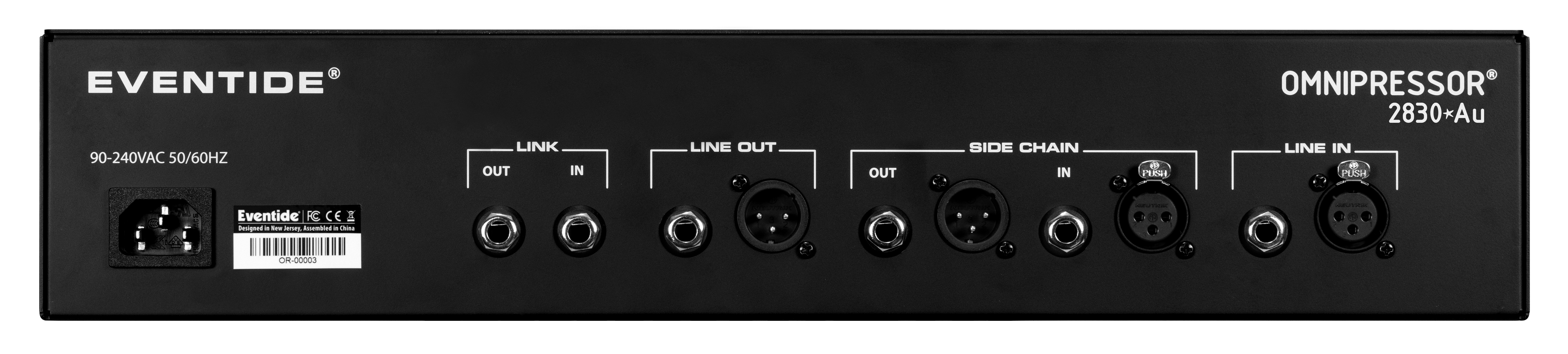

Specifications
Analog Audio I/O
Transformer-coupled, balanced XLR and TRS 1/4
Transformer-coupled, balanced XLR and TRS 1/4
Side-chain Input
Side-chain Output
Active balanced XLR and TRS 1/4
Active balanced XLR and TRS 1/4
Control voltage, TS 1/4
Control voltage, TS 1/4
Audio Specs
Input/Output Levels
Gain Range
Input Impedance
Output Impedance
Balanced or unbalanced, +20dB max
-30dB to +30dB
25 kOhms, transformer-coupled
80 Ohms, transformer-coupled
