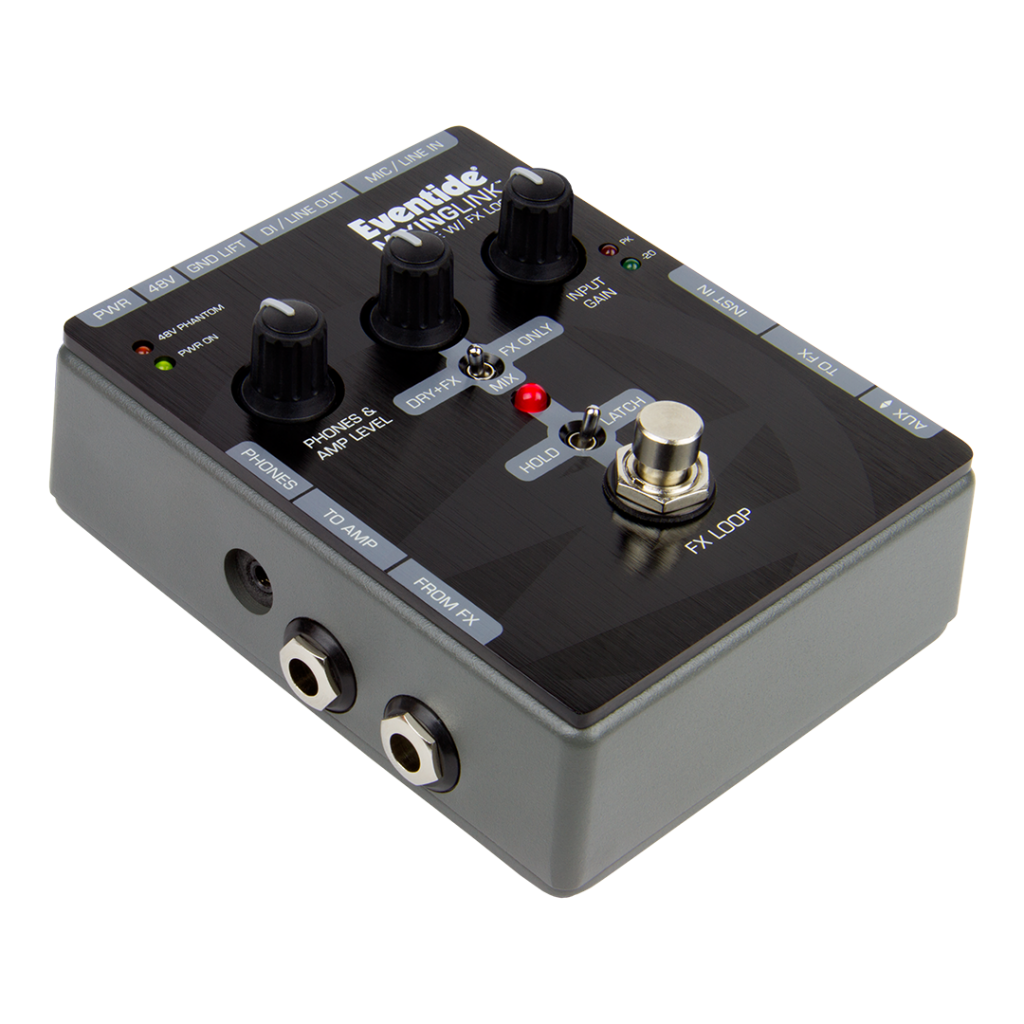

Eventide MixingLink®
Eventide MixingLink®
Eventide MixingLink®
Eventide

Eventide MixingLink®

Sale price$ 349.00
SKU: 1183-011
Call us at 1-877-223-8858 or Ask a Question below

Eventide MixingLink®

Model

Eventide MixingLink®

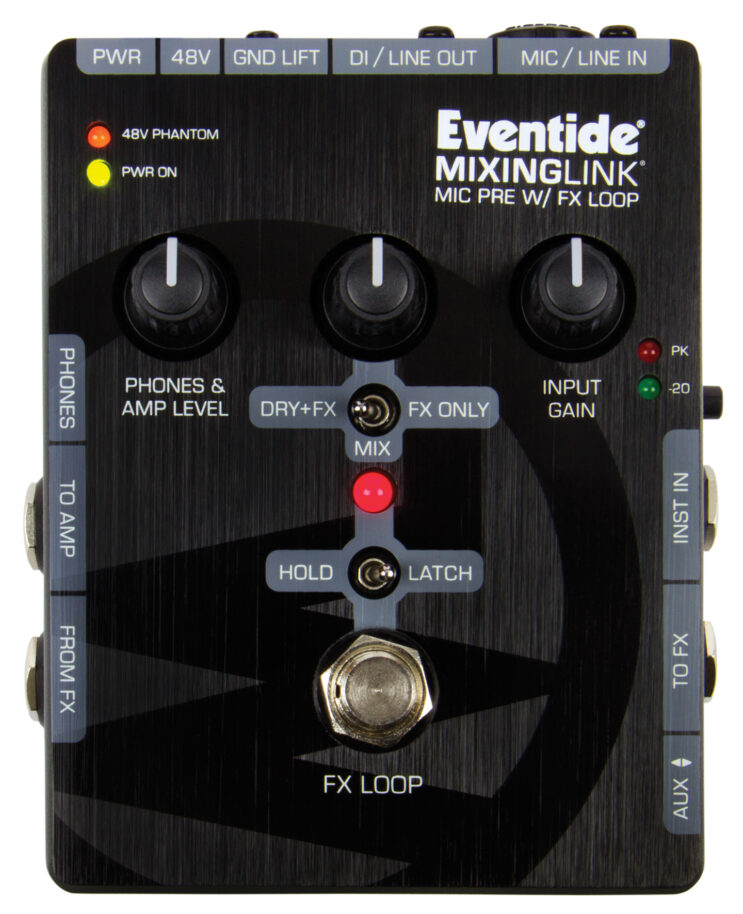

High-quality Mic Pre with FX Loop

A stompbox-size audio toolkit for on-stage, in the studio, and everywhere in between. Includes a quiet high gain mic-pre, 48V phantom power, and enough I/O and control for applications such as FX Loop for microphone signal processing (vocals, horns, strings, etc), signal splitting, and combining, complete re-amp setup, impedance, and gain matching, mixing and more.

Features

Ultimate Versatility

  • Latching or momentary footswitch control of FX loop for performance effects
  • Works with a wide range of microphones including condenser and ribbon mics with up to 65dB of clean gain
  • Aux I/O connection supporting stereo input and send
  • Guitar amp output and headphone monitor output with separate master volume control
  • International universal power supply included
  • Operates on 9V battery (no phantom power when operating on a battery)
  • 48V phantom power for condenser mics

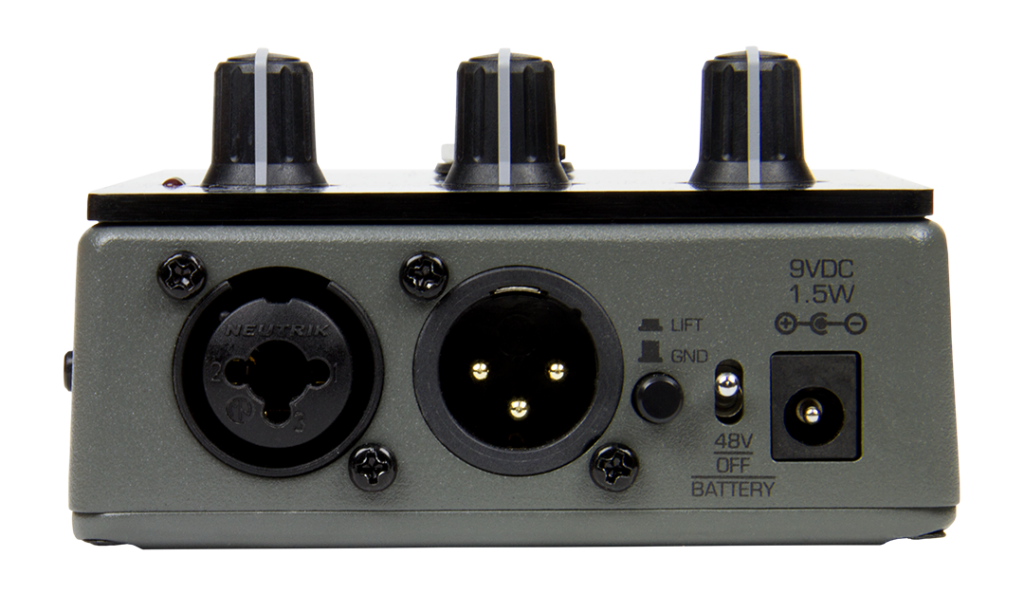

  • Balanced XLR output which supports DI and line levels
  • Instrument and balanced line level inputs
  • Versatilemixcontrol supports 3 modes
    • 100% Dry w/FX blended in
    • Mic/FX balance control
    • 100% FX (no Dry)

Specifications

Input

Analog Input
MAX Input Levels, Input Impedance

INST IN

+10dBu, 500kΩ

1/4″ Line IN

+24dBu, 22kΩ

Out 2

+4dBu, 2kΩ

EXP

+10dB, 200kΩ

AUX IN

+4dBu, 5.0kΩ

Output

Analog Output
MAX Output Levels, Output Impedance

TO FX

+10dBu, 400Ω

TO AMP

+10dBu, 250Ω

PHONES

150mW per channel, min Load = 8 Ohms

DI/LINE OUT

(DI) -10dBu, (LINE) +18dBu, 200Ω

AUX OUT

18mV, 200Ω (mobile mic level)

Specifications

Power Supply

9V DC @ 200mA / Center Negative (-), 5.5mm/2.1mm jack (BOSS standard)

Dimensions

English: 3.6” (H) x 2.65” (W) x 1.5” (D)
Metric: 91(H) x 67(W) x 38(D) mm

Weight

.96 lb / .43 kg
