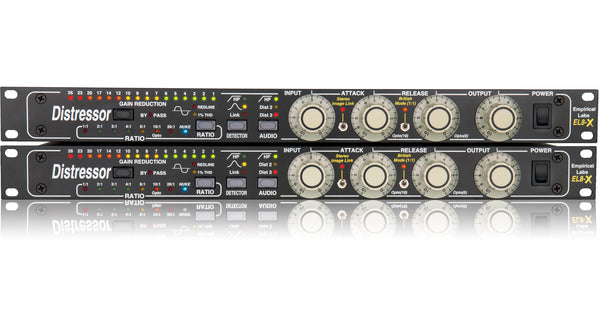

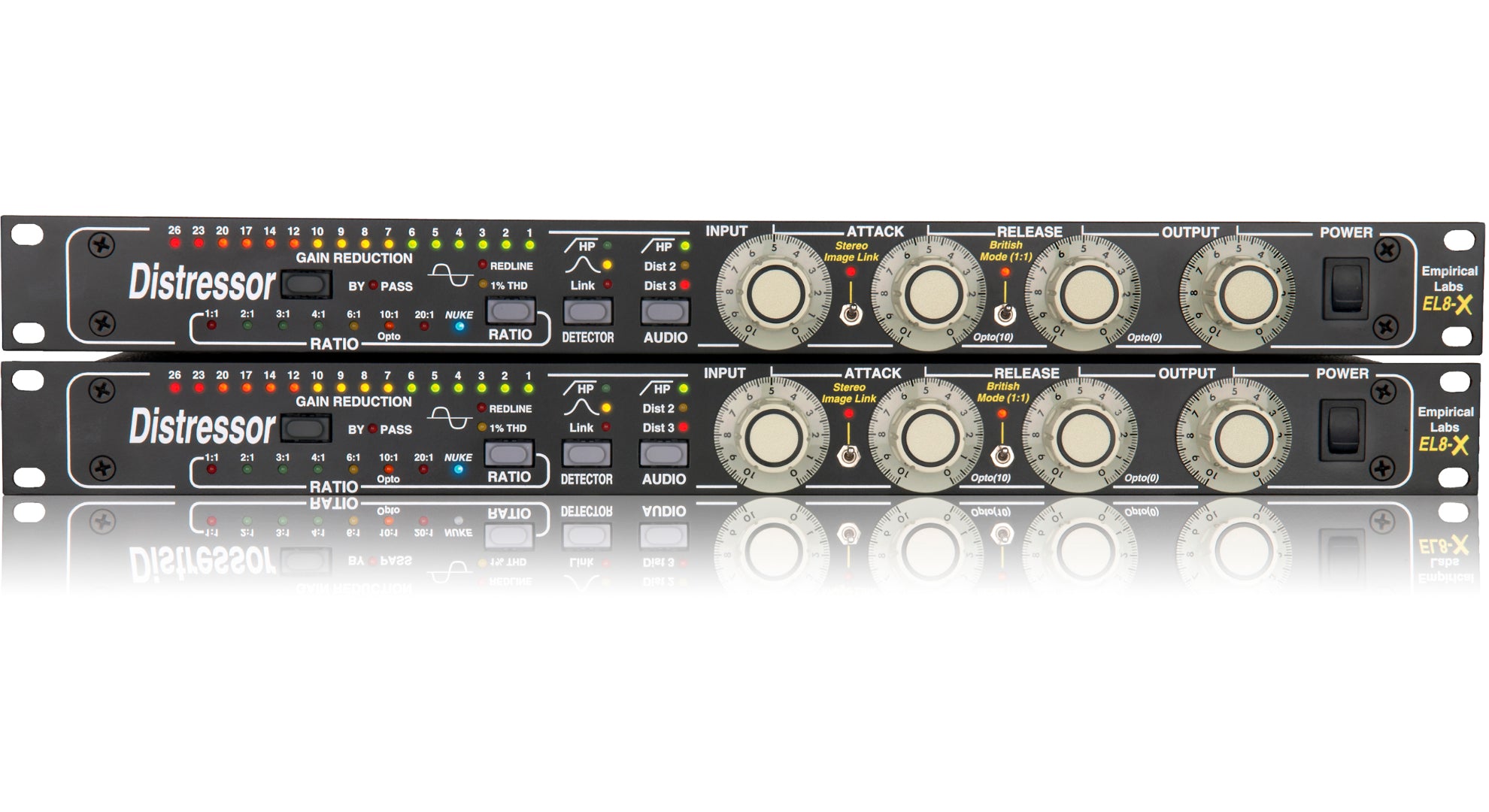

Empirical Labs EL8X-S Stereo Pair

SKU: Empirical Labs EL8X-S Stereo Pair
$ 3,600.00
The original Distressor stereo link function used a summing and phase detection method, which allowed slight stereo image shifting.  Although frequently desirable for its phase correction, and its “thickening” on open room mics and other stereo sources, this approach can sometimes be a problem on stereo program material where the producer/engineers want to maintain absolute left/right balance at all times. With the new “Stereo Image Link” option, the EL8-X now has three link options - the original “phase” link, the new Image Link and the combination of the two, phase and image linking - something never before offered on any compressors or limiters.

SPECIFICATIONS

• Freq. response is 2 Hz to 160 kHz in clean audio mode (+0, -3 dB). Response is shaped in distortion modes (Dist 2, Dist 3).



• Dynamic range 110 dB from max. output to min. output in 1:1 mode. Greater than 100 dB signal to noise in distort 3 mode.



• Distortion ranges between .02% and 20% depending on distortion mode and release times set on front panel.



• DC coupled output - High quality input caps.



• Input impedance is 20K Ohms, Output impedance is < 75 ohms



• Time constants - Attack range 50uS - 50mS. Release range .05 sec to 3.5 seconds, normal modes and up to 20 seconds in 10:1 opto mode. Time constants are dependant on ratio.



• Metal Chassis - single height 1.75" high, 10" deep, 19" wide.



• Shipping info - 12.1 lbs mono, 24.2 lbs Stereo pair. Mono box dimensions 22.5" x 18.5" x 3 1/4".



• Stereo Pair box dimensions 22.5" x 18.5" x 6 1/4
