Elysia Nvelope

SKU: Elysia Nvelope
$ 1,679.00 -11%
$ 1,499.00

The nvelope is a powerful audio processor capable of making subtle or drastic changes to a sound by providing control over its attack and sustain characteristics. This is extremely useful for reshaping all sorts of individual tones, and is a wonderful tool in any mixing situation as well.

The nvelope operates independently of the specific level of a signal, and (unlike with compressors) you do not have to spend a lot of time trying to balance a set of complex controls to quickly get the results you seek.

With its unique Dual Band mode, the nvelope gives you enhanced control over processing, and can easily handle complex program material. Additionally, its dynamics sections can be bypassed, allowing it to function as a flexible high/low shelf EQ.

• Discrete Class-A Topology

 Pristine audio quality.

• Full Range Mode

Fast & efficient envelope shaping.

• Dual Band Mode

 Enhanced frequency controls.

• EQ Mode

Alternative high/low shelf equalizer.

• Mixed Mode
Two different processors at the same time.

• Stereo Link/Dual Mono
Flexible channel use and combination.

• Auto Gain
Eliminates level peaks and distortion.

• Made in Germany
High grade components, solid aluminum knobs.

Features

Discrete Class-A Topology

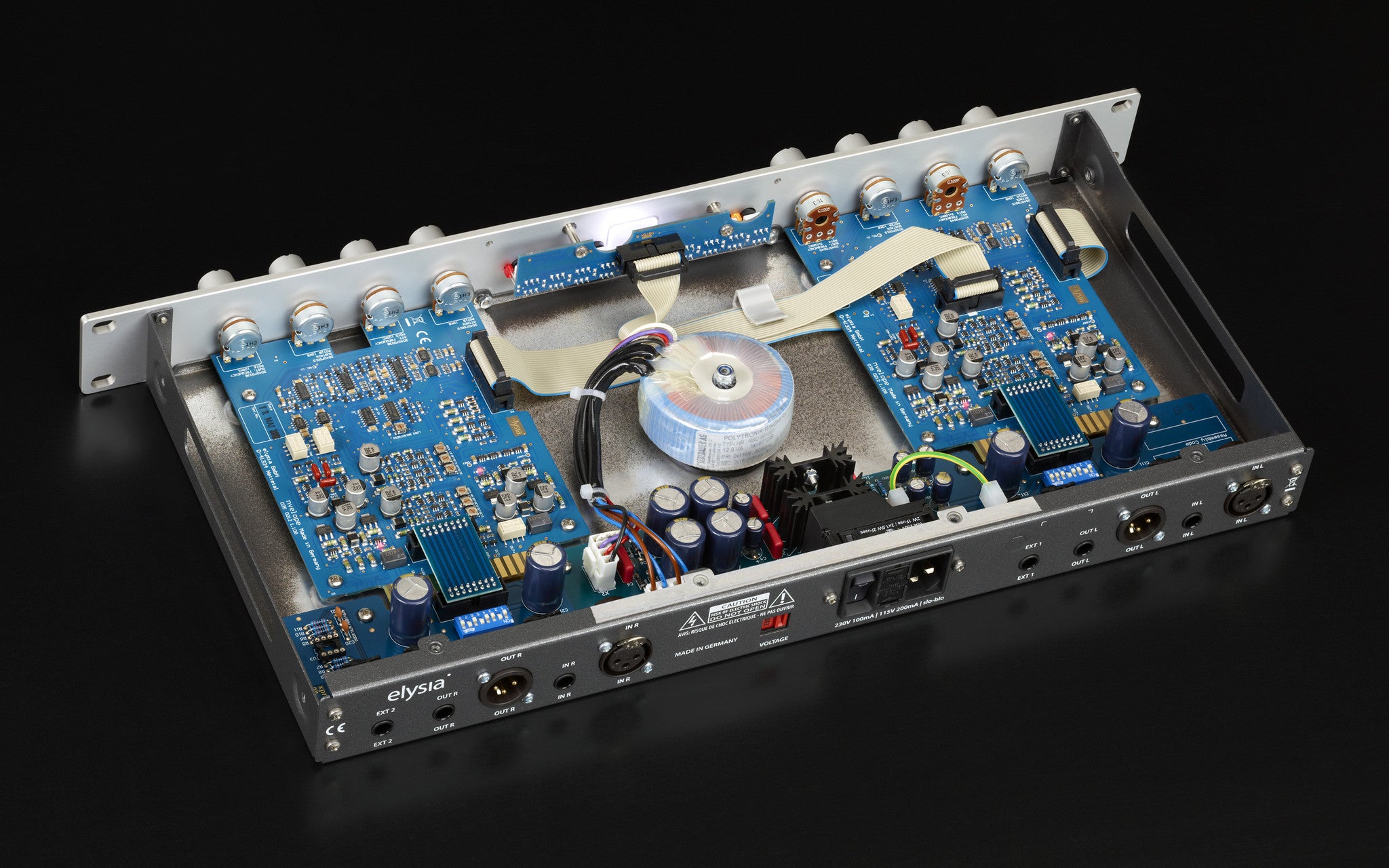

As a true elysia specialty, the audio path of the nvelope is completely based on discrete circuitry and does not use any integrated circuits at all.

Full Range Mode
In Full Range mode, the attack and sustain intensity of a signal can be raised or reduced fast and efficiently with just two controllers.

Dual Band Mode
This mode functions basically the same as Full Range, but it provides more tweakability by assigning the attack and sustain controls to individual frequency selectors.

EQ Mode
The nvelope can mutate into a two band equalizer with a high/low shelf characteristic, and even here the channel link for processing stereo material can be activated.

Mixed Mode
When Stereo Link mode is not active, the two individual channels can be used as completely different processors at the same time.

Dual Mono/Stereo Link
For ultimate flexibility, the nvelope offers true dual mono and linked stereo operation as well – no matter if you are using it in Full Range, Dual Band or EQ mode.

Auto Gain
Should distortion or huge jumps in level occur as an unwanted side effect of the attack processing, the Auto Gain function will compensate and get the level right.

Stepped Potentiometers
The frequency potentiometers have 41 steps for an easy recall, while the gain pots have a center detent for finding their neutral position at once.

Frequency response:                  <10 Hz - 400 kHz (-3.0 dB)
THD+N:
@ 0 dBu, 20 Hz - 22 kHz
@ +10 dBu, 20 Hz - 22 kHz

0.006 %
0.01 %
Noise floor A-weighted:
20 Hz - 20 kHz (Full Range, EQ)
20 Hz - 20 kHz (Dual Band)

-90.0 dBu
-87.0 dBu
Dynamic range:
20 Hz - 22 kHz

112 dB
Maximum level:
Input
Output

+21 dBu
+21 dBu
Impedance:
Input
Output

10 kOhm
68 Ohm
