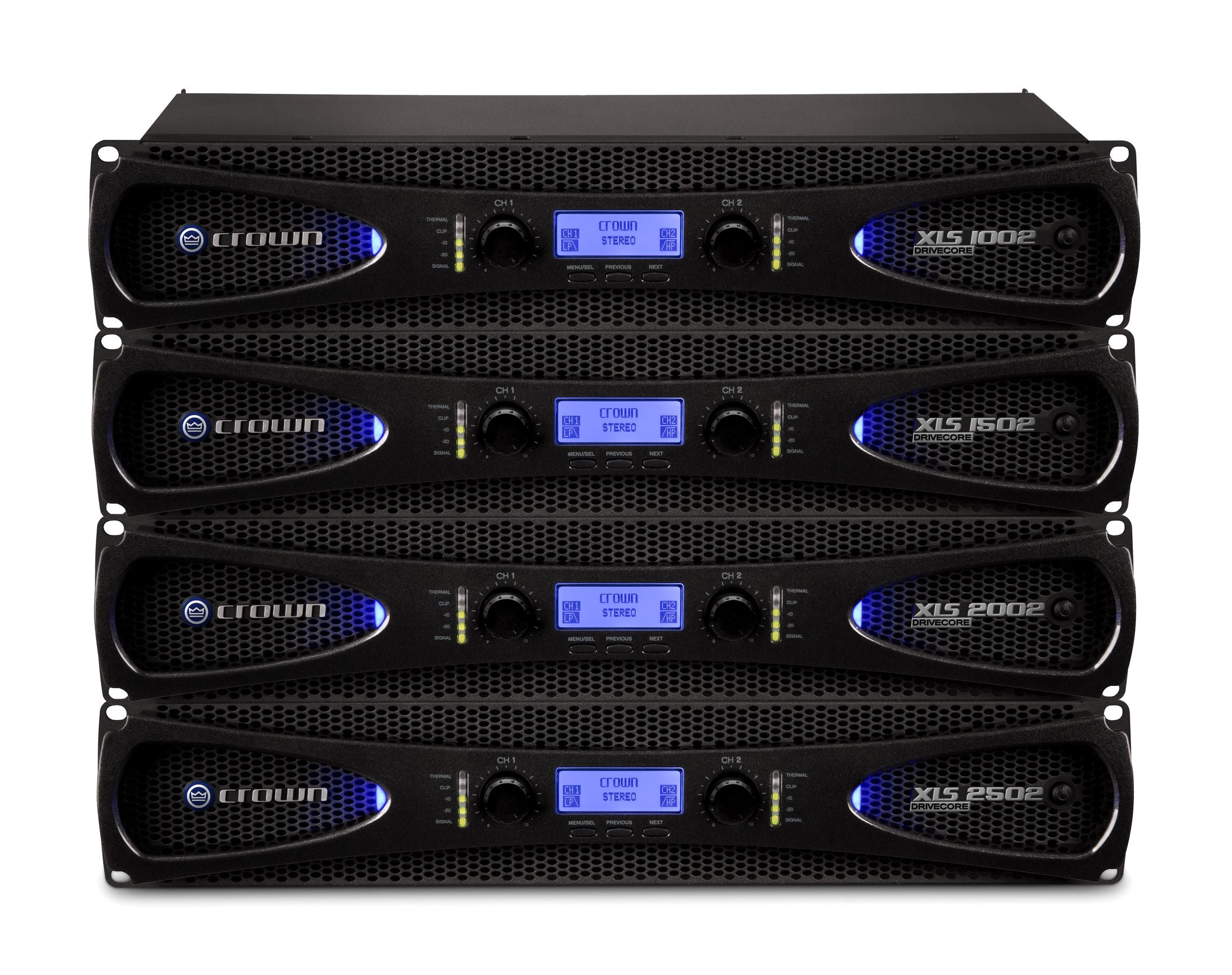

Meet the new XLS DriveCore™ 2 Series
The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.
- Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb
- Higher DSP capabilities: More control; has band pass filter per channel
- Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
- Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
- Set sleep mode after specified time without having to press a button
- Security setting disables menu buttons; menu locked/unlocked by entering combination
- System reset allows factory settings to be restored
- Remote power trigger
- Peakx™ Limiters provide maximum output while protecting your speakers

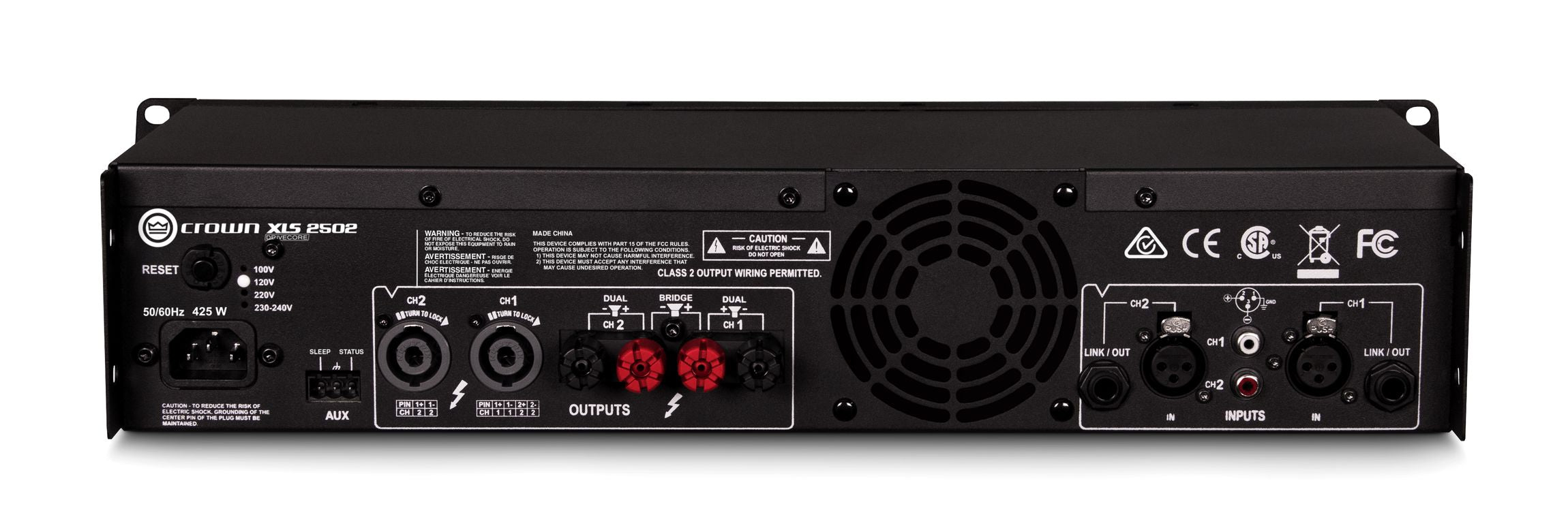

- XLR, 1/4", RCA inputs provide flexibility
- Integrated PureBand™ Crossover System for better performance and control
- Efficient forced-air fans prevent excessive thermal buildup
Sensitivity |
1.4Vrms |
Frequency Response |
+0dB, -1dB |
Signal to Noise |
>103dB (at .775Vrms, 6dB lower) |
Intermodulation Distortion |
< 0.3% |
Damping Factor |
> 200 |
THD |
< 0.5% |
Crosstalk |
At 1kHz: > 85dB, At 20kHz: > 55dB |
Dimensions |
19" (48.3 cm) x 3.5" (8.9 cm) x 10.7" (21.2 cm) |
Weight |
10.8 lbs (4.9 kgs) |
