Crane Song Insigna

SKU: Insigna
$ 1,299.00
Wishlist

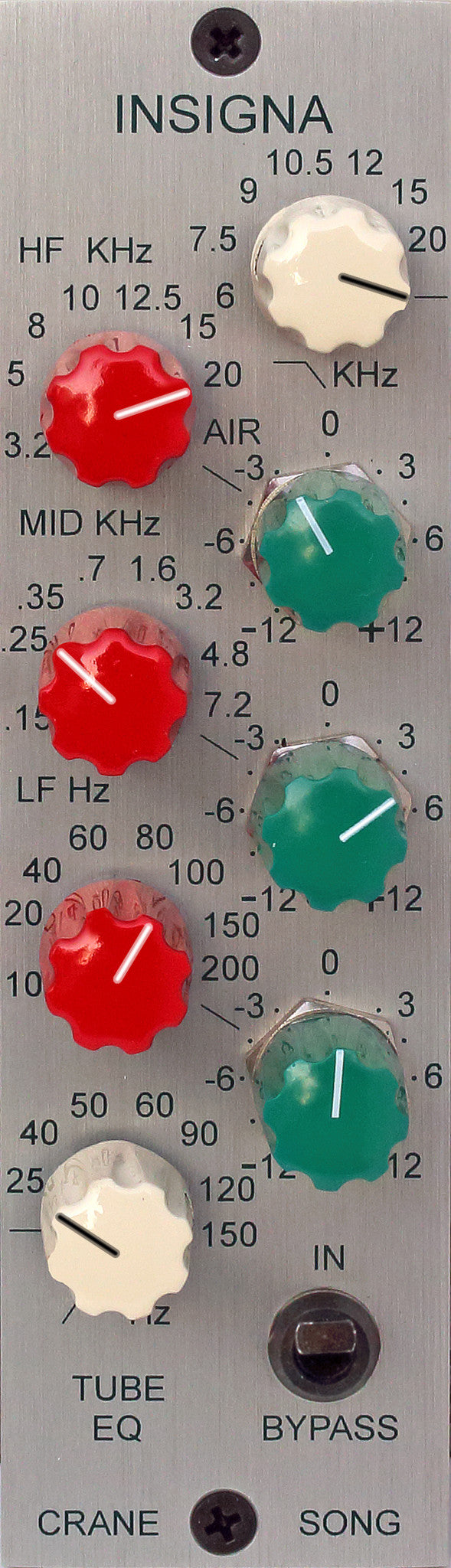

INSIGNA is a tube equalizer in a 500 series package, using a dual triode circuit with a 12AX7 tube.

The eq has 24 db/oct high pass and low pass filters each with 7 frequencies.
The top and bottom band are shelving each with 8 frequencies
The mid band is peaking with 8 frequencies.

The three bands work by using buffered RC circuits in the negative feedback path around the tube amplifiers. The result is a fat sounding eq rich in second harmonic triode tube color.

TECHNICAL SPECIFICATIONS

Maximum input: +24 dBU

Maximum Output: +25 dBU

Frequency Response: 1 Hz to 100 kHz

Noise Floor: -84 dBU 20 Hz - 20 kHz

Input Impedance: 32K Ohms

Output Impedance: 160 Ohms

Current Consumption: 120 mA

Weight: 1.7 Lbs

Number of Channels: 1

Number of EQ Sections: 37

Switched Ranges

High Pass: 7 + Flat

Low Pass: 7 + Flat

Low Shelf: 8 (10 Hz - 200 Hz)

Mid Bell: 8 (150 Hz - 7.2 kHz)

High Shelf: 8 (3.2 kHz - AIR)

Bypass Switch: True Bypass - Hard Bypass
