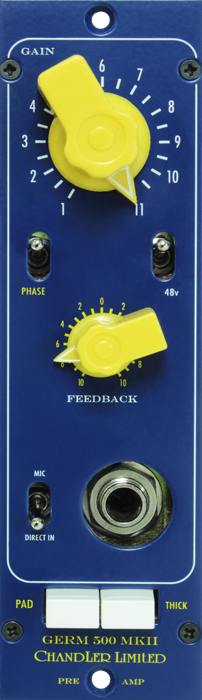

Chandler Limited 500 Series Germ 500 MKII

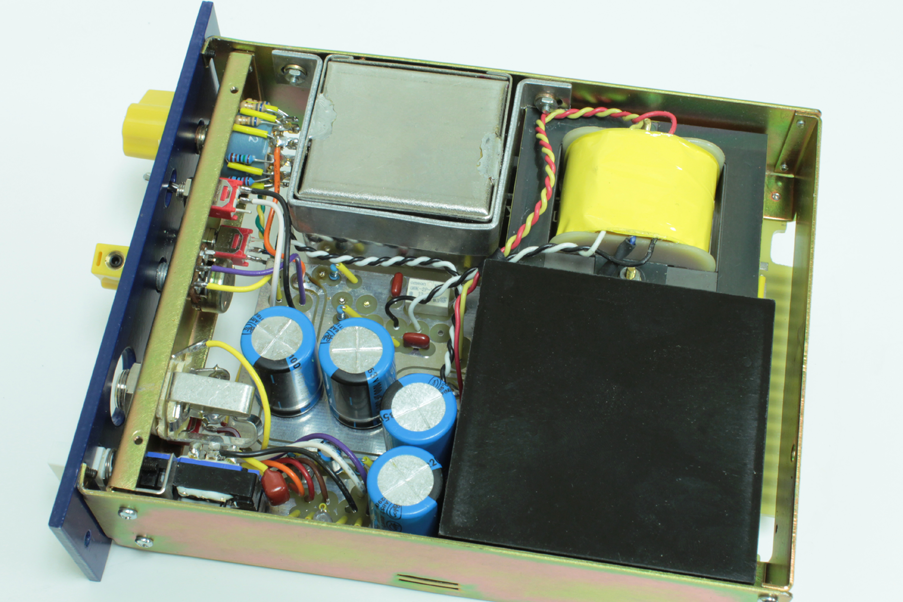

The Germ 500 MKII is an updated version of our original Germ 500. This unit has an improved faceplate layout and nicer look. It uses classic germanium transistors in all Class A, transformer balanced circuits. The Germ 500 MKII is our well-known Germanium Preamp adapted for 500 series racks. We use the same transformers and amp blocks to assure the sound is consistent with our rack version. We've updated the power on the MKII so there no known power-up issues with current lunchboxes and rack systems.
All Chandler 500 series units have now been tested and proven to have no power issues in the following racks: API 500V 10-slot with L200 PSU; API 500-6B Lunchbox; API 500-6B HC “new version” Lunchbox; BAE 11-slot with power one supply; BAE 6-slot portable with power one supply; BAE 6-slot with Avedis designed supply; A-Designs 2-slot; Purple Sweet 10; and Empirical Labs 2-slot.
- FORMAT: 500 Series
- CHANNELS: Mono
- CIRCUIT: Class A, Discrete, Transistor
- GAIN: -5db to +65db
- I/O: 500 Series Enclosure
- Mic Input: Transformer Balanced, Input Impedance: 300 Ohm
- DI: 1/4" Unbalanced, Input Impedance: 100k
- PHANTOM POWER: +48v
