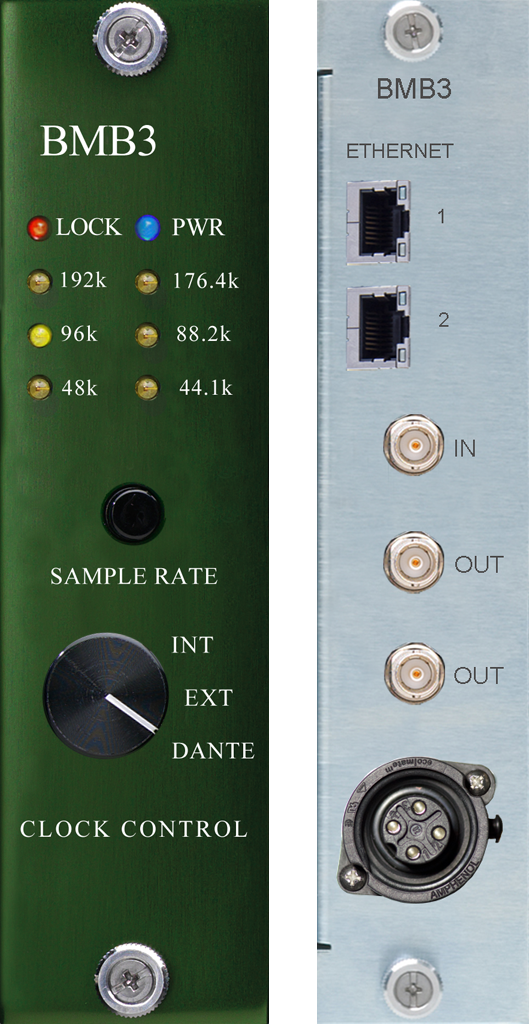

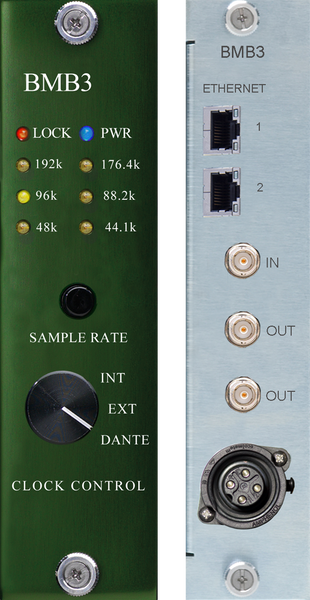

Burl Audio BMB3 - DANTE MOTHERBOARD

The BMB3 features two Ethernet ports for use with Dante enabled DAWs and any Dante enabled device, such as a digital mixing console. With two Dante ports, 64in/64out at 44.1k, 48k, 88.2k, 96k, and 32in/32out at 176.4k, and 192k are supported. With 6 BAD8s and 4 BDA8s a 48×32 IO can be achieved.  With 2 BAD8s and 8 BDA8s a 16×64 IO can be achieved.  With the configurability of the MOTHERSHIP the IO possibilities are limitless.

BMB3 Features:

• 2 Dante Ethernet ports (sold standard with one port)
• 64-channel IO at 44.1k, 48k, 88.2k, 96k
• 32-channel IO at 176.4k, 192k
• 2 BNC Word Clock outputs
• 1 BNC Word Clock input
