BSS Audio BLUDIGITAL-IN

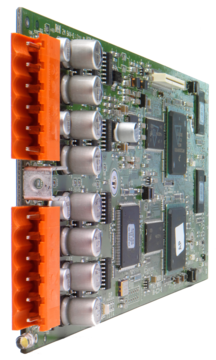

The Soundweb London Digital Input card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. These digital cards enable Soundweb London devices to receive AES/EBU and S/PDIF audio signals.

The Digital Input Card can be configured in the following ways:

2 Stereo AES/EBU Signals
1 Stereo AES/EBU signal / 1 Stereo S/PDIF Signal
2 Stereo S/PDIF Signals
The Digital Input Card has two Combicon connectors which are used as follows:

Connector 1
Stereo Audio, Channels 1 and 2 - AES/EBU
Stereo Audio, Channels 3 and 4 - AES/EBU
Connector 2
Stereo Audio, Channels 1 and 2 - S/PDIF
Stereo Audio, Channels 3 and 4 - S/PDIF
