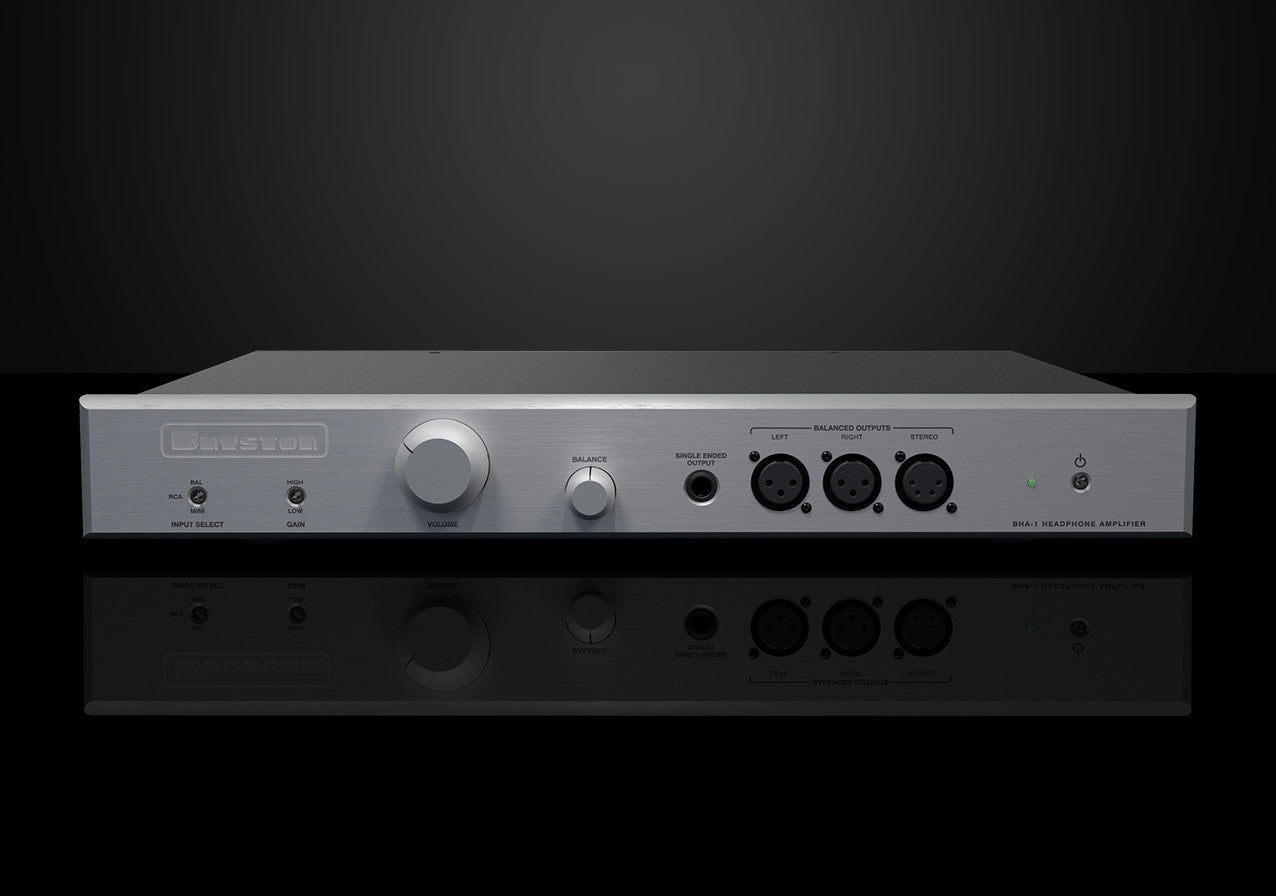

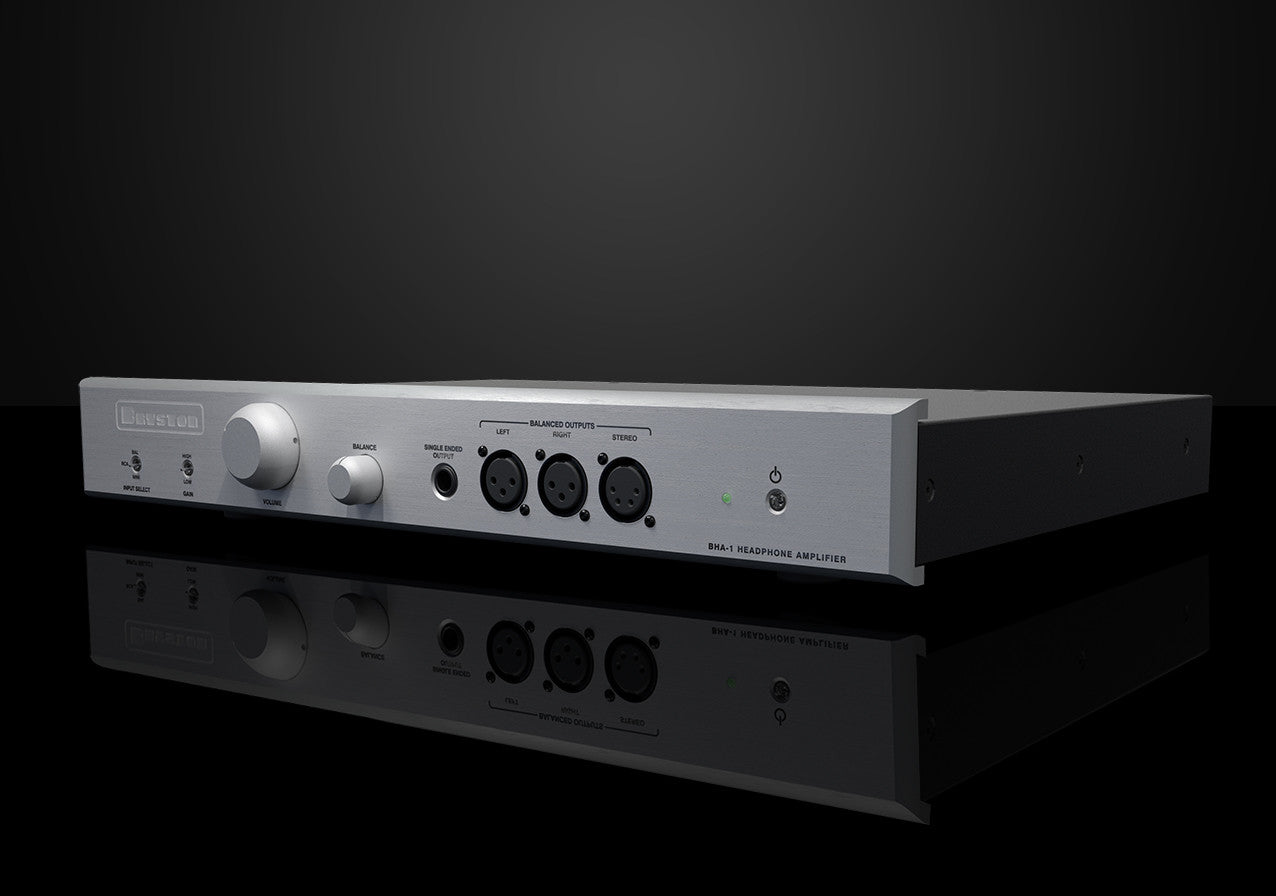

Bryston BHA-1 Headphone Amp

SKU: Bryston BHA-1 Headphone Amp
$ 1,995.00

Bryston BHA-1 Headphone Amp

Advancing our tradition of unmatched audio performance and functionality, the BHA-1 Balanced Headphone Amplifier is Bryston’s reference amplifier solution for the finest listening experience from your headphones. The BHA-1 is compatible with both traditional (single-ended) and balanced headphones.

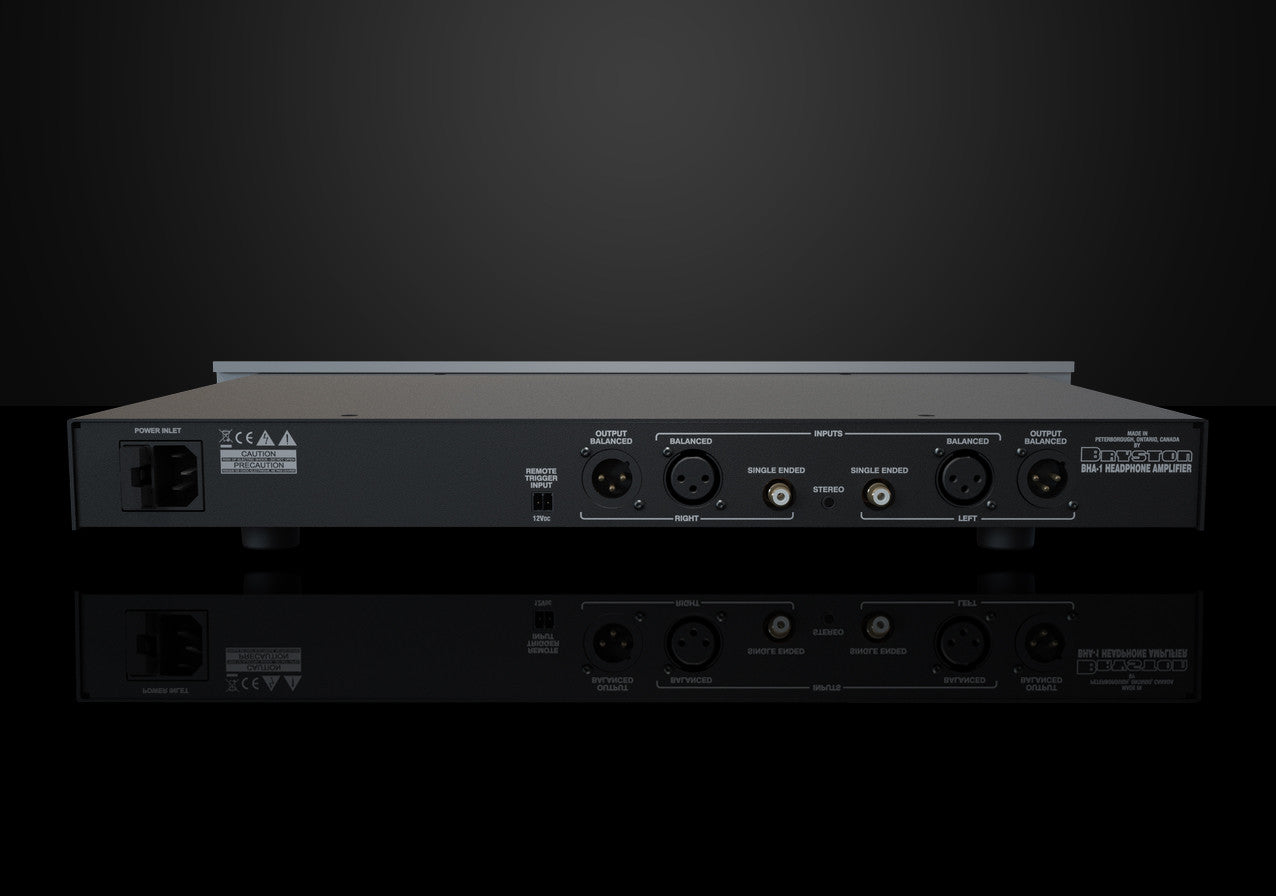

Inputs: Balanced XLR Pair, Single Ended Pair (RCA), 3.5mm Stereo Mini Jack (MP3 Player Source, etc.)
Outputs: Balanced XLR (4 Pin Stereo), Balanced XLR Pair (3 Pin Left/Right), ¼" Headphone Jack
Control: Remote Trigger Input ( 5 - 12V AC/DC @10mA)

Features:

  • Balanced outputs
  • Balanced dual mono circuitry
  • Left/Right balance control
  • Six fully discrete Class A Bryston operational amplifiers
  • 14dB or 20dB gain
  • 10k input impedance
  • High quality noble stereo volume control (laser trimmed)
  • Gold plated input and output connectors
  • Multiple headphone drive capability

    Options:

    • Available with Silver or Black Faceplate (2U)
    • 17” or 19” Faceplate available
    • Rack Mountable Ears available
    • Locking mechanisms on Balanced XLR connectors



        Specifications

        • Power output: Maximum; 2 Watts per channel into 32 Ohms at 1% THD
        • Input impedance: 10K ohms single ended (unbalanced), +15K/-5K ohms double ended (balanced)
        • Sensitivity:
          • HI (approx 20 dB) setting: 70mVin = 100 mWout into 50 ohms (500mVin = 5Vout)
          • LO (approx 14 dB) setting: 140mVin = 100 mWout into 50 ohms (500mVin = 2.5Vout)
        • THD+noise: < 0.005% 20 Hz to 20 kHz
        • Noise: >103 dBv
        • Frequency response: 20 Hz to 20 kHz
        • Power bandwidth: <1 Hz to over 100 kHz
        • Power consumption: 500 Watts
        • Heat load: 130 BTU/hr
        • Dimensions: 17" faceplate (2.75” (2" W/O feet) H x 17” W x 12.25” D), 19" faceplate (2.75” (2" W/O feet) H x 19” W x 12.25” D)
        • Weight: 13.25 Ib
        • Warranty: Bryston analog audio products are warranted to be free from manufacturing defects for twenty (20) years from the original date of manufacture. The warranty includes parts and labor.
