$ 2,500.00

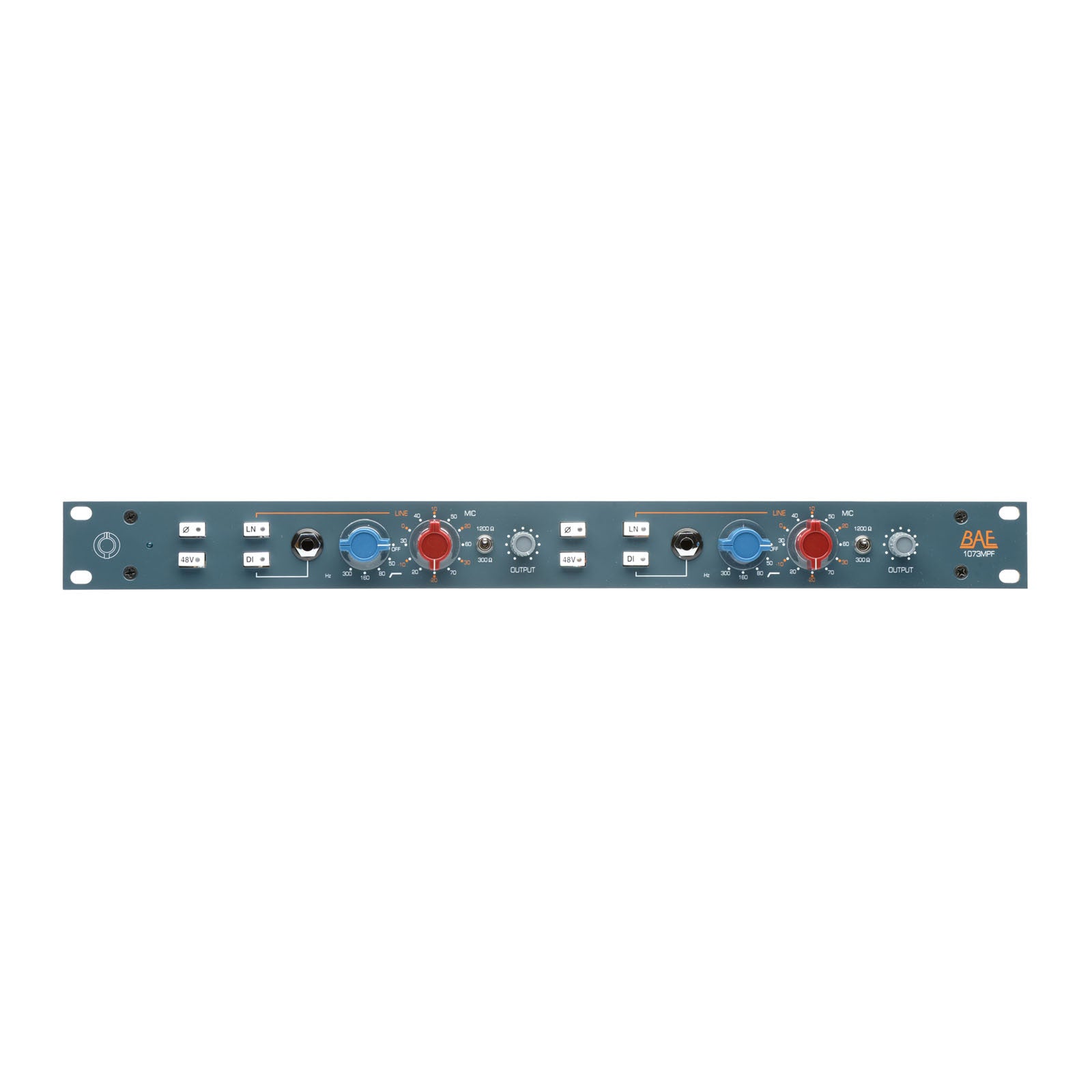

This is the high-pass filter version of the 1073MP. The 1073MPF is the mic pre-amp version of the 1073 equaliser, sharing the the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs and maintained focused mids.

A transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones.

There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.

As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.

  • All Class A, transformer-coupled design in a 19" 1U chassis.
  • Inductor based high pass filter
  • Line level XLR inputs for extra versatility as a line preamp.
  • High impedance DI for guitar and synth.
  • The same Class A components as the 1073 and 1084.
  • Illuminated phase reverse and phantom power pushbuttons.
  • Input impedance selector switch between 1200 and 300 ohms.
  • Same modular design and hand-wiring BAE is known for.
  • Regulated linear power supply will run up to four channels.

    Frequency Response
    10Hz to -3dB at 55kHz

    High Pass Filter
    50Hz, 80Hz, 160Hz, 300Hz

    Mic Input Impedance
    ≈1200/300 ohms

    Line Input Impedance
    10k ohms

    DI Input Impedance
    ≈150k ohms

    Output Impedance
    65 ohms

    Common Mode Rejection Ratio
    100dB min @ 60Hz

    Maximum Output Level
    +27.4 dBu @ 600Ω

    Power Requirements
    115/230 VAC, 30W

    Gain dB
    0 to 71 dB

    Equivalent Input Noise
    -110 dBu; Unweighted 300kHz Bandwidth

    Weight (Single/Dual)
    8 LBS / 3.63 KG
    10 LBS / 4.54 KG

    Dimensions (Inches)
    19W x 1.75L x 9D
