$ 1,145.00

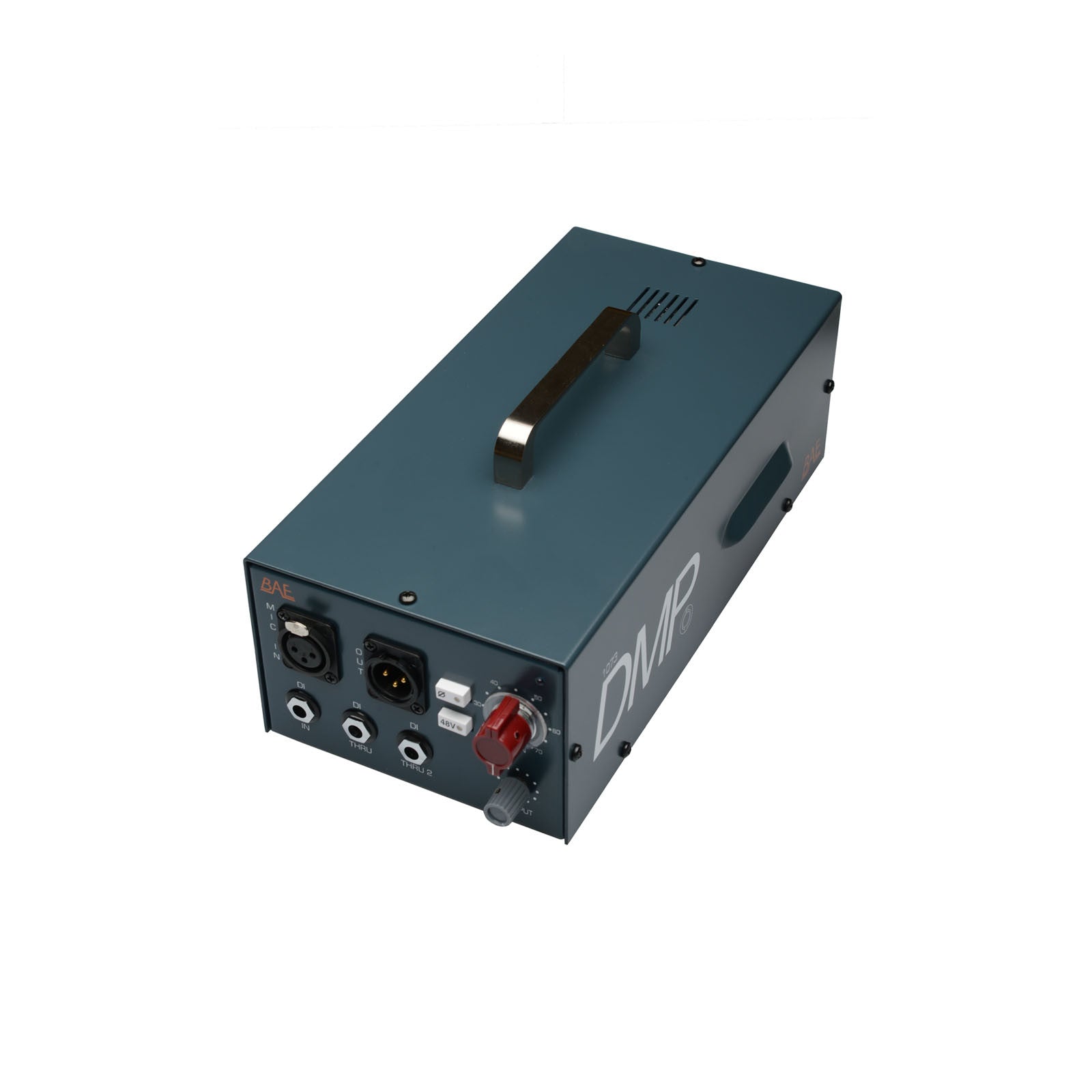

The 1073 DMP features the same pre-amp and the same Carnhill (St Ives) transformers as the 1073 and 1084.

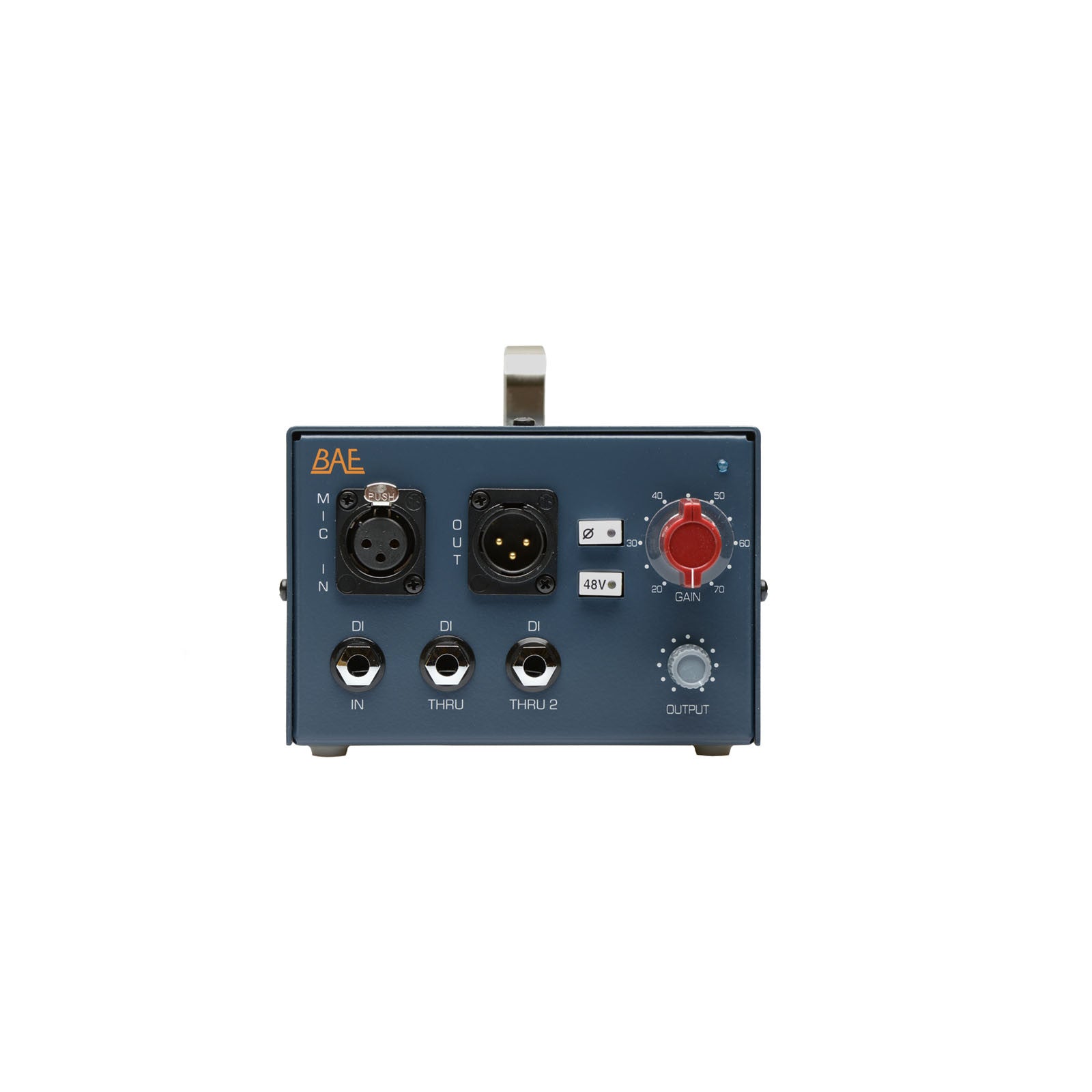

All units come standard with the 'Bootsy Collins' mod which consists of a Jensen DI transformer to create the first 1073 direct box. The 1073DMP features include two DI thrus, phase reverse, 48V for phantom power, a built in PSU for extra portability and the same hand-wired modular design that BAE is known for.

Features

  • Built in PSU for extra portability.
  • DI in and DI through.
  • 48v for phantom power.
  • Solid steel chassis.
  • Same hand-wired modular design that BAE is known for.

Frequency Response
10Hz to -3dB at 55kHz

Mic Pre Input Impedance
≅1200 ohms

DI Input Impedance
≅150k ohms

Output Impedance
65 ohms

Common Mode Rejection Ratio
100dB min @ 60Hz

Maximum Output Level
+27.4 dBu @ 600Ω

Power Requirements
115/230 VAC, 28W

Gain Voltage
0 to 33.4 Volts

Gain dB
0 to 71 dB

Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth

Weight
7.3 LBS/3.31 KG

Dimensions (Inches)
5.3W x 4L x 11D
