Aviom16/o-Y1 A-Net Card

SKU: Aviom16/o-Y1 A-Net Card
$ 926.00 -9%
$ 845.00

Aviom16/o-Y1 A-Net Card

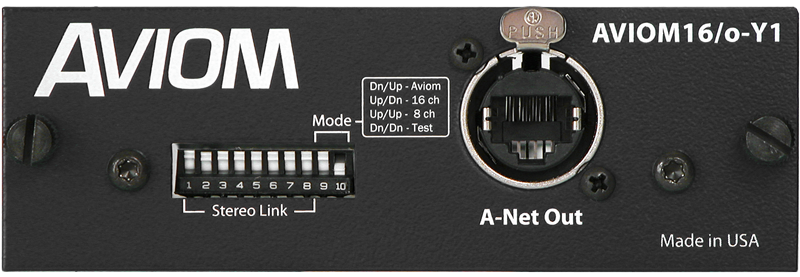

The Aviom16/o-Y1 A-Net Card provides a direct digital interface between Yamaha® digital mixer products and Aviom's Pro16®Series, including the A360, A320, and legacy A-16II Personal Mixers*, A-Net distributors, and output modules.

The Y1 card eliminates the need for an analog input module when creating a monitor mixing or audio distribution system. Assign any combination of channels, direct outputs, aux sends, groups, or sub-mixes from the Yamaha console user interface to the Y1 card as needed. Each Y1 card installed in a console’s MY expansion slot supports up to 16 channels.

Product Details

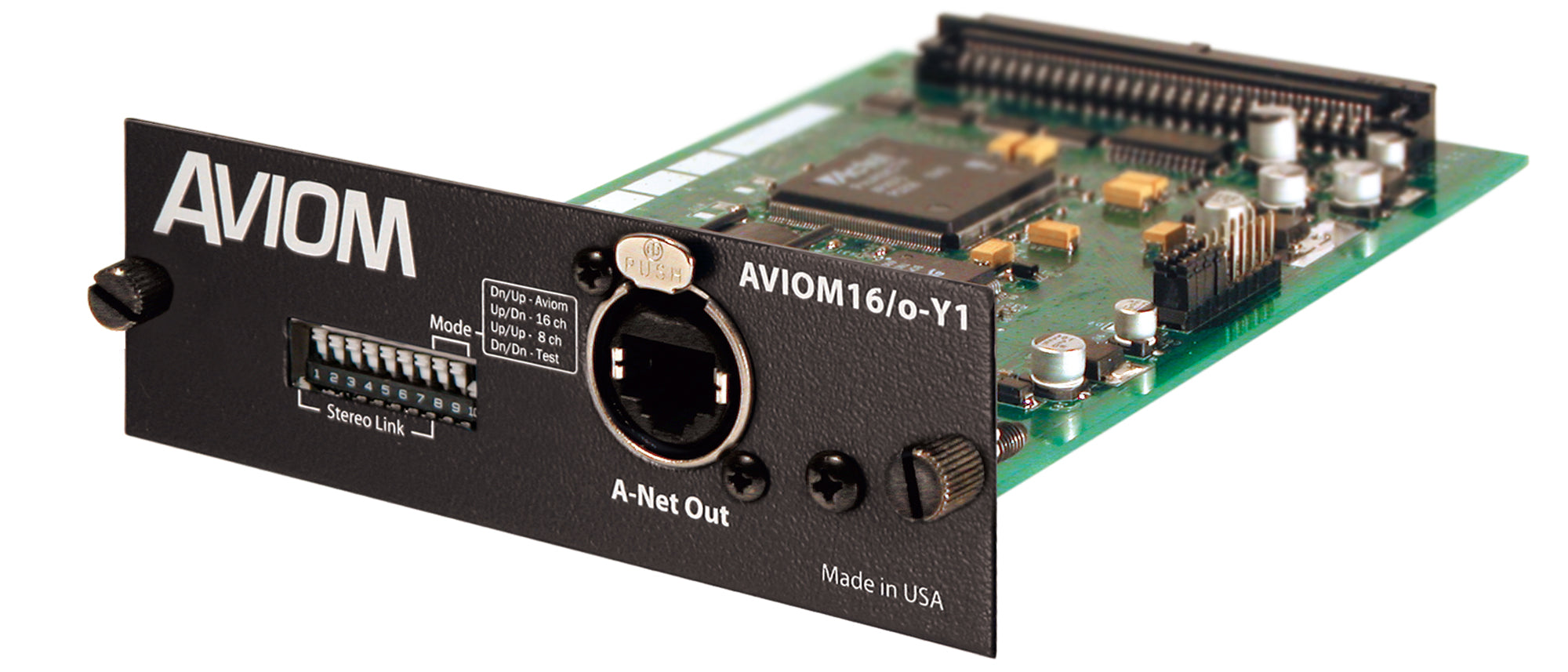

The Aviom16/o-Y1 card provides a direct digital interface between Yamaha digital products and Aviom's Personal Mixers. The Y1 card becomes the head end to the monitoring system, simplifying system setup. Just connect a Cat-5e cable from the card to the an A-Net Distributor or Personal Mixer and you've created a monitor system that can be expanded as needed with additional personal mixers, output modules, and A-Net distributors.

In systems using the A360 or A320 Personal Mixer, two or more console cards can be combined to create a network up up to 64 sources. Just add the SB4 System Bridge to combine the console cards' A-Net outputs and connect the SB4 output to a D800 or D800-Dante A-Net Distributor. The D800 will merge the data into a single A-Net stream.

Yamaha Product Compatibility

The Y1 card fits into any available MY expansion slot and is compatible with all Yamaha consoles and mix engines that support the Mini-YGDAI (MY) format**, including:

** The Y1 card is not compatible with the TF Series consoles; these consoles do not have Yamaha MY-format expansion slots.

Configuration and Setup

Configuration of the input sources for an Aviom monitoring system can be done digitally from the Yamaha console's user interface. This gives the console operator the option of routing any combination of channels, direct outputs, aux sends, groups, or sub-mixes from the console to the Y1 card as needed. The console's powerful scene memory can be used to send different groups of channels into the monitors as needed during a performance.

* The original A-16 Personal Mixer (discontinued in 2004) is not compatible with the Y1 card.


Aviom16/o-Y1 Technical Specifications


A-Net Pro16 Output 16 channels of A-Net digital data;
   * 8 channels on PM1D
Interface Format Yamaha mini-YGDAI (MY) Expansion Card
Maximum Expansion Limited only by the number of available MY expansion slots in the digital mixer
Sample Rate 44.1kHz to 48kHz, +/-10%
Digital Conversion 24-bit
A-Net Output A-Net Out: 1; EtherCon® RJ45 connector
DIP Switch Switch 1-8: Stereo Link on/off
   Switch 9-10: A-Net mode
   A-Net Modes: 8-channel, 16-channel, Aviom, Test
Default is switch 9 up, 10 down
A-Net Pro16 A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable
   use unshielded Cat-5e UTP (or better) cable;
   max. length 500 feet (150m) between devices
Latency <0.880 msec (measured from analog input to
 analog output)
Power Supply none required;
   uses Yamaha host device as source of power
Dimensions 4.75" (120.7 mm) wide x 6.25" (158.8 mm) deep; 1.5" (38.1 mm) high
Weight 0.8 lbs (0.36 kg)
Options SB4 System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable (requires D800 or D800-Dante A-Net Distributor)
