Aviom Mix320-Y-MEE

Sale price$ 5,439.00 Regular price$ 5,899.00
Save $ 460.00
SKU: Mix320-Y-MEE

Call us at 1-877-223-8858 or Ask a Question below

Aviom Mix320-Y-MEE


Aviom Mix320-Y-MEE

The Mix320-Y Personal Mixing System is a complete personal mixing system for six performers, designed for users of Yamaha® digital mixing consoles.

The Y1 A-Net Card plugs into any open MY expansion slot on your Yamaha console. There's nothing to configure—just assign sources from the Yamaha user interface to the card's 16 channels and they will appear on the Personal Mixer's channel buttons.

The A320 Personal Mixers get their digital data and power over the same cable, so all you need to do is connect a Cat-5 cable and you're ready to start using the system.

A complete monitoring system in a box, ready to use!
The Mix320-Y Personal Mixing System is available in two versions. The standard version is great if you already have in-ear monitors and /or headphones. If you're new to personal mixing and need IEMs, there is an enhanced version of the kit with six MEE Audio M6 Pro in-ear monitors included. These single-driver IEMs include a 72-inch cable, an assortment of ear tips, and a case.

Product Details

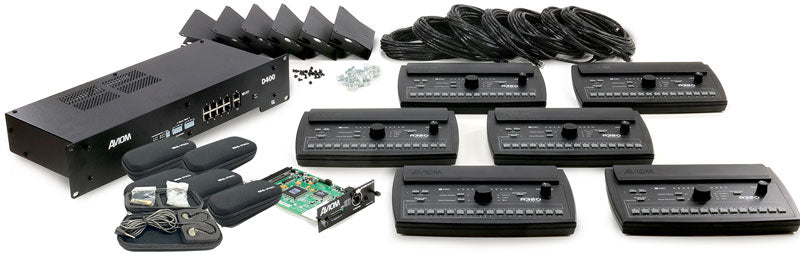

The Mix320-Y Personal Mixing System gets its inputs from a Y1 A-Net card installed in your Yamaha digital mixing console. A D400 A-Net Distributor is used to supply A-Net digital data and DC power to the mixers, and the system includes six A320 Personal Mixers for the performers. It also includes six MT-1a Mic Stand Mounts for attaching the A320 mixers to mic stands, as well as all the Cat-5e cables you'll need to connect the products.

** The Y1 card is not compatible with the TF Series consoles; these consoles do not have Yamaha MY-format expansion slots.

Intuitive Mixing

The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. It features 16 mono or stereo mix channel buttons, individual volume controls, and easy-to-use Stereo Placement controls. Plug headphones, ear buds, or a wireless in-ear monitoring system into the Personal Mixer and you're ready to start mixing.

A Simple Digital Console Interface

The Y1 A-Net Card for Yamaha allows up to 16 sources from the console to be assigned as inputs to the personal mixing system.

Assign any combination of channels, direct outputs, aux sends, groups, or sub-mixes from the Yamaha console user interface to the Y1 card.

Power and Audio Over Cat-5

For distributing the A-Net digital data and DC power to the A320 Personal Mixers, the system includes the D400 A-Net Distributor. Just connect the console card to the distributor's A-Net In and use the D400's powered A-Net ports for connecting Personal Mixers.

In-Ears Included

The enhanced version of the Mix320-A system includes six MEE Audio M6 Pro IEMs. The earbuds feature detachable, replaceable cords and come with an assortment of flexible ear tips that reduce outside noise and allow you to easily find the most comfortable fit for your ears. Each IEM set also includes custom-engraved metal faceplates and a protective case.

System Options

The Mix320-Y system is designed specifically for user of Yamaha® digital consoles. If you have a Dante-enabled console or network, the Mix320-D Personal Mixing System is what you need. It includes the D400-Dante A-Net Distributor instead of the D400 and does not require a separate input device or console card. if you have an analog console or recording system, the Mix320-A Personal Mixing System is what you need. It includes the 16-channel, line-level AN-16/i Input Module as its front end.

The mixing system packages are also easy to expand when you're ready—just add more Personal Mixers and A-Net Distributors as needed.

Mix320-Y Technical Specifications

A320 Specifications

Audio Output 1/4" TRS stereo, headphone or line level
Stereo Mix Output, Headphone/Line Tip: Audio Left;
Ring: Audio Right;
Sleeve: Ground
A-Net I/O 1 A-Net In, RJ45 connector;
Supports Pro16 and Pro16e
D/A Conversion 44.1/48kHz, 24-bit
Stereo Operation Stereo Link, per channel pair;
Set at the input module;
Variable pan per mono channel or pan/spread per stereo channel pair
Headphone Output 275 mW per side into 50 Ohms (both sides driven)
Output Impedance 5 Ohms
Freq. Response 3Hz-22kHz +0.2dB/-3dB at 50 Ohms
THD +N < 0.003%
Output Voltage for Personal Mixers 24VDC, 0.5 amp
Transmitted over the Cat-5e cable
Signal to Noise
-106dB (measured with zero data into all channels)
Latency 0.880 msec (measured from analog input to analog output)
Pro16e A-Net Use Cat-5e (or better) cable;
Maximum 400 ft (122 m) between devices;
Supports Power Over A-Net
Cat-5 cable Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Power 24 VDC, 0.5 amp;
Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor
Dimensions 10.26" (260.6 mm) wide x 6.14" (155.95 mm) deep x 1.91" (48.51 mm) high
Weight 1.3 lb. (0.59 kg)
Options MT-1a Mic Stand Mount

Y1 A-Net Card Specifications

A-Net Pro16 Output 16 channels of A-Net digital data;
* 8 channels on PM1D
Interface Format Yamaha mini-YGDAI (MY) Expansion Card
Maximum Expansion Limited only by the number of available MY expansion slots in the digital mixer
Sample Rate 44.1kHz to 48kHz, +/-10%
Digital Conversion 24-bit
A-Net Output A-Net Out: 1; EtherCon® RJ45 connector
DIP Switch Switch 1-8: Stereo Link on/off
Switch 9-10: A-Net mode
A-Net Modes: 8-channel, 16-channel, Aviom, Test
Default is switch 9 up, 10 down
A-Net Pro16 A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable
use unshielded Cat-5e UTP (or better) cable;
max. length 500 feet (150m) between devices
Latency <0.880 msec (measured from analog input to
analog output)
Power Supply none required;
uses Yamaha host device as source of power
Dimensions 4.75" (120.7 mm) wide x 6.25" (158.8 mm) deep; 1.5" (38.1 mm) high
Weight 0.8 lbs (0.36 kg)
Options SB4 System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable (requires D800 or D800-Dante A-Net Distributor)

D400 Specifications

A-Net Input Pro16 or Pro16e A-Net;
RJ45 connector
A-Net Offset Base Slot 2-position DIP switch selects the starting channel that Personal Mixers will receive from the network (1, 17, 33, or 49)
Defeat Stereo Switches Chooses between local (front panel) stereo links (up) or network stereo links (down)
A-Net Out to Personal Mixers Eight RJ45 connectors, powered
A-Net Out Pro16e A-Net;
RJ45 connector, unpowered
LEDs Power On (red); Network Sync (green)
Stereo Link Two 8-position DIP switch blocks (1-16, 17-32)
Output Voltage for Personal Mixers 24VDC, 0.5 amp
Transmitted over the Cat-5e cable
A-Net Cables Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Unshielded Cat-5e cable may be used on all rear panel connections
Power Supply Internal, IEC connector
Input Voltage 100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
AC Fuse Types 115V range: T2.5AL/250V
230V range: T1.25AL/250V
Dimensions 19" (482.6 mm) wide x 7.386" (187.6 mm) deep; 2U, 3.5" (88.9 mm) high
Weight 12.0 lbs (5.44 kg)
