Aviom Mix320-A-MEE

SKU: Mix320-A-MEE
$ 6,299.00 -9%
$ 5,739.00

The Mix320-A Personal Mixing System includes everything you need to create a 16-input personal mixing system for six performers. It's perfect for stage or studio use.

Connect balanced analog inputs from a mixing console for live use or to the outputs of your DAW recording interface or console to create a studio cue system.

The A320 Personal Mixers get their digital data and power over the same cable, so all you need to do is connect a Cat-5 cable and you're ready to start using the system.

A complete monitoring system in a box, ready to use!
The Mix320-A Personal Mixing System is available in two versions. The standard version is great if you already have in-ear monitors and /or headphones. If you're new to personal mixing and need IEMs, there is an enhanced version of the kit with six MEE Audio M6 Pro in-ear monitors included. These single-driver IEMs include a 72-inch cable, an assortment of ear tips, and a case.

Product Details

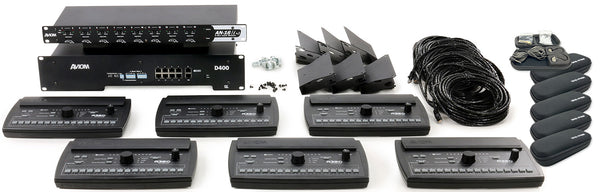

The Mix320-A Personal Mixing System features the analog AN-16/i v.2 Input Module as the front end of the system, a D400 A-Net Distributor to supply A-Net digital data and DC power to the mixers, and six A320 Personal Mixers for the performers. It also includes six MT-1a Mic Stand Mounts for attaching the A320 mixers to mic stands, as well as all the Cat-5e cables you'll need to connect the products.

Intuitive Mixing

The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. It features 16 mono or stereo mix channel buttons, individual volume controls, and easy-to-use Stereo Placement controls. Connect headphones, ear buds, or a wireless in-ear monitoring system to the Personal Mixer and you're ready to start mixing.

Analog Front End

The analog AN-16/i v.2 Input Module allows up to 16 line-level signals to be connected as the inputs to the personal mixing system. Each channel features a 1/4-inch TRS balanced input and thru jack that make it easy to interface with direct outs, aux sends, or insert points on your mixing console or recording interface. Analog audio is converted to 48kHz, 24bit A-Net digital data for distribution to the Personal Mixers.

Power and Audio Over Cat-5

For distributing the A-Net digital data and DC power to the A320 Personal Mixers, the Mix320-A system includes the D400 A-Net Distributor. The D400 has A-Net In and Out jacks plus eight powered A-Net ports for Personal Mixers.

In-Ears Included

The enhanced version of the Mix320-A system includes six MEE Audio M6 Pro IEMs. The earbuds feature detachable, replaceable cords and come with an assortment of flexible ear tips that reduce outside noise and allow you to easily find the most comfortable fit for your ears. Each IEM set also includes custom-engraved metal faceplates and a protective case.

System Options

The Mix320-A system is designed around an analog front end, the AN-16/i v.2. If you use a digital console, check out the Mix320-Y Personal Mixing System which includes a Y1 card for Yamaha® consoles instead of the analog inputs. Or, if you have a Dante-enabled console or network, the Mix320-D Personal Mixing System is what you need. It includes the D400-Dante A-Net Distributor instead of the D400 and does not require a separate input device or console card.

The mixing system packages are also easy to expand when you're ready—just add more Personal Mixers and A-Net Distributors as needed.

Mix320-A Technical Specifications

A320 Specifications

Audio Output 1/4" TRS stereo, headphone or line level
Stereo Mix Output, Headphone/Line Tip: Audio Left;
Ring: Audio Right;
Sleeve: Ground
A-Net I/O 1 A-Net In, RJ45 connector;
Supports Pro16 and Pro16e
D/A Conversion 44.1/48kHz, 24-bit
Stereo Operation Stereo Link, per channel pair;
Set at the input module;
Variable pan per mono channel or pan/spread per stereo channel pair
Headphone Output 275 mW per side into 50 Ohms (both sides driven)
Output Impedance 5 Ohms
Freq. Response 3Hz-22kHz +0.2dB/-3dB at 50 Ohms
THD +N < 0.003%
Output Voltage for Personal Mixers 24VDC, 0.5 amp
Transmitted over the Cat-5e cable
Signal to Noise
-106dB (measured with zero data into all channels)
Latency 0.880 msec (measured from analog input to analog output)
Pro16e A-Net Use Cat-5e (or better) cable;
Maximum 400 ft (122 m) between devices;
Supports Power Over A-Net
Cat-5 cable Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Power 24 VDC, 0.5 amp;
Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor
Dimensions 10.26" (260.6 mm) wide x 6.14" (155.95 mm) deep x 1.91" (48.51 mm) high
Weight 1.3 lb. (0.59 kg)
Options MT-1a Mic Stand Mount


AN-16/i v.2 Specifications

Audio Inputs 16, balanced line-level, 1/4-inch TRS connector
Inputs Tip: Audio +; Ring: Audio -; Sleeve: Ground
TRS Thru Impedance matched output
Analog to Digital Conversion 48kHz sample rate, 24 bit
Frequency Response 4Hz-22kHz
A- Net In One Category 5 (RJ45 connector)
Four-position slot range selector switch for use with Pro16e A-Net
A-Net Out One Category 5 (RJ45 connector)
Gain Settings Four-position switch, -10dBv, 0dBu, +4dBu, and +22dBu
Channel LED Indicators Signal Present and Clip, per channel
Line Inputs Impedance: 48k ohms
Metering LEDs; green: Signal Present, red: Clip; per channel
Stereo Operation Stereo Link, per channel pair;
Two-position switch (Normal, Link)
Maximum Input Level +22dBu
Input Impedance 17.8k ohm
Freq. Response 4Hz-22kHz +0.2dB/-3dB
THD +N < 0.003%
Crosstalk -90dB
Bit Error Rate (BER) 10(-12)
Signal to Noise (unweighted) 90dB typical, A/D to D/A
Measured from AN-16/i to AN-16/o Output Module
Digital Outputs A-Net: 1; RJ45 connector
Pro16e A-Net Use unshielded Cat-5e UTP (or better) cable
Latency <0.880 msec (measured from analog input to analog output)
Power Supply
      Input Voltage
      Output Voltage
      Plug Size
External, DC, universal switching type
100-240 volts, 50/60Hz, 30VA
18-24 VDC, 0.5 amp
2 mm
Power 18-24 VDC, 500mA
Dimensions 19" (482.6 mm) wide x 5.75" (146 mm) deep;
1U high
Weight 6.8 lb (3.08 kg)

D400 Specifications

A-Net Input Pro16 or Pro16e A-Net;
RJ45 connector
A-Net Offset Base Slot 2-position DIP switch selects the starting channel that Personal Mixers will receive from the network (1, 17, 33, or 49)
Defeat Stereo Switches Chooses between local (front panel) stereo links (up) or network stereo links (down)
A-Net Out to Personal Mixers Eight RJ45 connectors, powered
A-Net Out Pro16e A-Net;
RJ45 connector, unpowered
LEDs Power On (red); Network Sync (green)
Stereo Link Two 8-position DIP switch blocks (1-16, 17-32)
Output Voltage for Personal Mixers 24VDC, 0.5 amp
Transmitted over the Cat-5e cable
A-Net Cables Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Unshielded Cat-5e cable may be used on all rear panel connections
Power Supply Internal, IEC connector
Input Voltage 100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
AC Fuse Types 115V range: T2.5AL/250V
230V range: T1.25AL/250V
Dimensions 19" (482.6 mm) wide x 7.386" (187.6 mm) deep; 2U, 3.5" (88.9 mm) high
Weight 12.0 lbs (5.44 kg)
