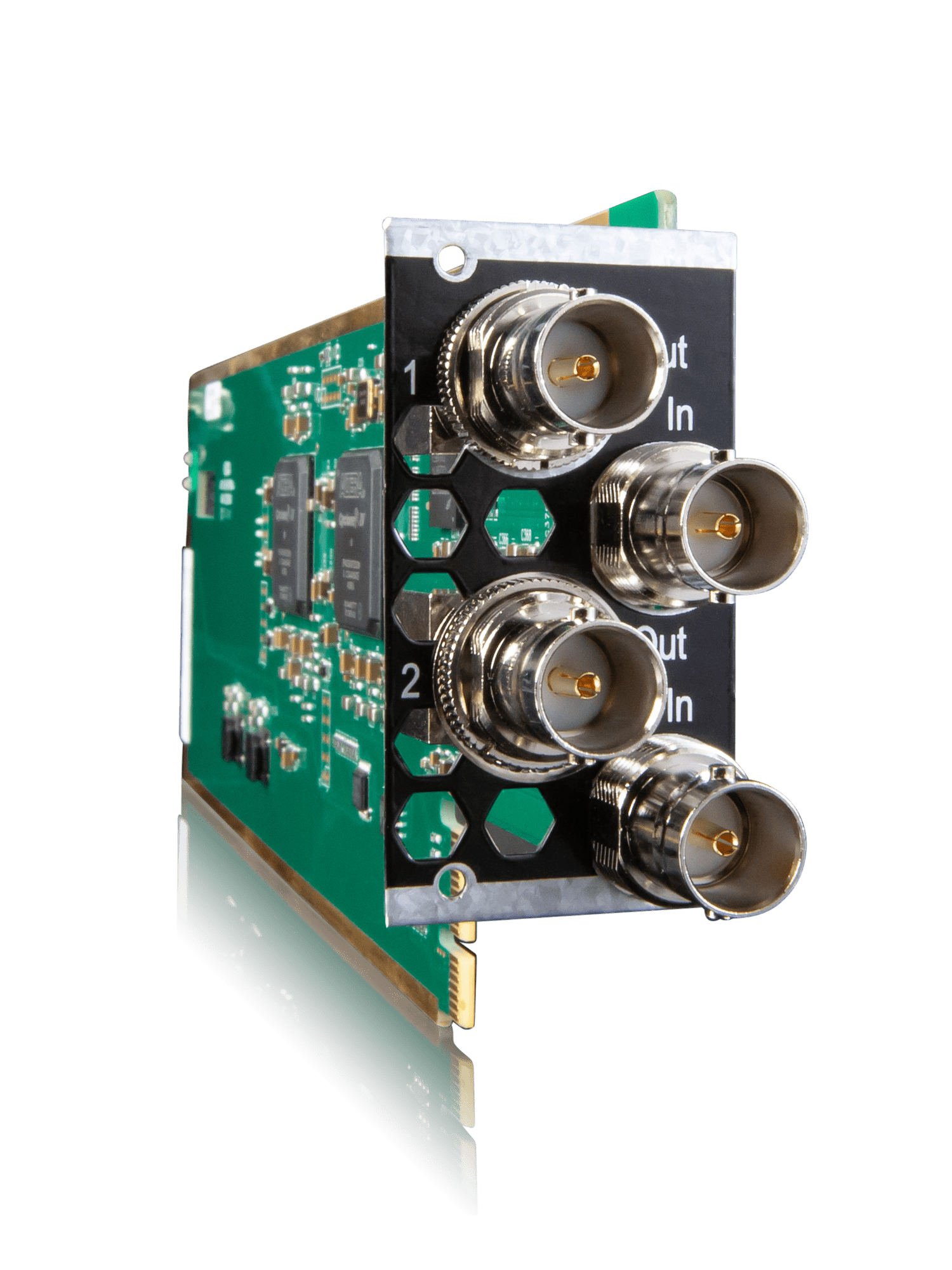

Avid MTRX Dual SDI/HD/3G Card (Embed/De-Embed)

The Avid MTRX SDI/HD/3G Embed/De-embed Option Card provides 2 x 16 channels of audio embedding/de-embedding with built-in sample rate conversion and supports SDI, HD, and 3G formats.

The MTRX SDI/HD/3G Embed/De-embed Option Card for the Pro Tools | MTRX allows you to extract up to 16 channels of audio from an SDI input signal to the MTRX via MADI, Dante, AES3, or analog. Additionally the MTRX Dual SDI/HD/3G option card, enables you to embed 2-channel audio in SDI directly from Pro Tools, MADI, Dante, or analog.

MTRX Dual SDI/HD/3G Option Card - Just the Facts:

• Extract (de-embed) and process up to 16 channels of audio embedded in a digital video stream directly to Pro Tools
• Embed 2-channels of audio in SDI
• Accepts 3G, HD-SDI and SD-SDI signals
• Built-in automatic sample rate conversion

The MTRX Dual SDI/HD/3G Embed/De-embed card enables video post-production engineers to extract or embed high quality audio in and out of Pro Tools, MADI, Dante, or analog. For more information, call or chat with your PAD Studio Consultant today.

Specifications

• Digital I/O formats: AES/EBU, Pro Tools DigiLink Mini, Dante IP Audio
• Supported sample rate: Up to 192kHz MADI/up to 384kHz, and DSD
• Synchronization: AES11, Word Clock, all digital inputs; Video Sync (word clock connector) / PAL, NTSC, SECAM
• DSD sample rates: 8224 and 5.6448MHz (64/128FS)
• Dynamic range (A): > 128dB
• THD+N(A): < -110dB @ -3dBFS / 0.00031%
• Cross talk: < 120dB
• Max output level: Adjustable from -60dBu to 24dBu in steps of 0.1dB
