MADI-192 MADI Option Card
Bring high-channel, high-quality MADI connectivity to VENUE | S6L with this easy-to-install audio interface card. The MADI-192 MADI Option Card enables you to send and receive up to 64 channels of audio per card between S6L and any MADI audio device, such as an external audio mixer, recorder, or processor. You can install up to four MADI cards in the E6L-192 or E6L-144 engine for up to 256 channels of bi-directional audio.
Work with tons of channels
The MADI Option Card makes it easy to support the largest live audio productions. Each card can provide up to 64 channels of bi-directional audio at 96 kHz. Simply add more cards to increase your channel count—up to 256.
Achieve pristine sound

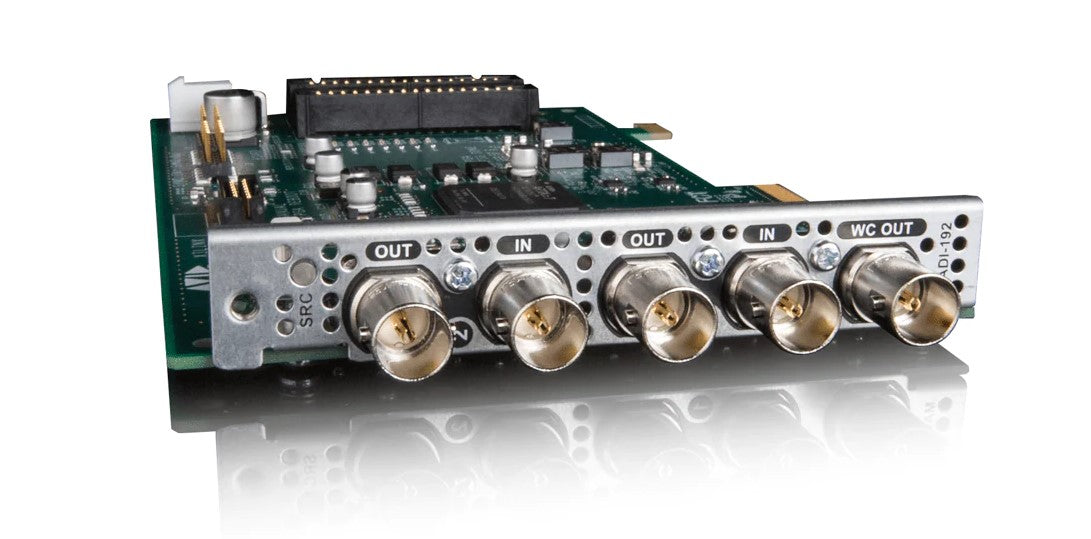

Each MADI card provides four premium BNC connectors and a single BNC Word Clock output connector. This enables you to stream a large number of audio channels and keep things in sync over two simple lightweight cables, without any signal degradation.
Get real-time Waves processing
Through MADI, you can integrate S6L with Waves SoundGrid systems, enabling you to run your favorite Waves reverbs, EQs, dynamics, and other plugins right alongside your VENUE AAX ones.
- VENUE | S6L system running VENUE 5.3 and higher software
| Audio channel support (per card)
Up to 64 channels of bi-directional audio at 96 kHz
|| Four MADI BNC connectors, one BNC Word Clock output connector
| Card connection
|| PCIe for installation in any E6L engine
| Maximum card/channel support
||Up to four cards in either an E6L-192 or E6L-144 engine (for a maximum total of 256 channels)|
