Avid HDX THUNDERBOLT 3 CHASSIS

Sale price$ 599.00
SKU: 9900-74108-00

Options: HDX THUNDERBOLT 3 CHASSIS DESK

Options

Call us at 1-877-223-8858 or Ask a Question below

Avid HDX THUNDERBOLT 3 CHASSIS

Model

Avid HDX THUNDERBOLT 3 CHASSIS

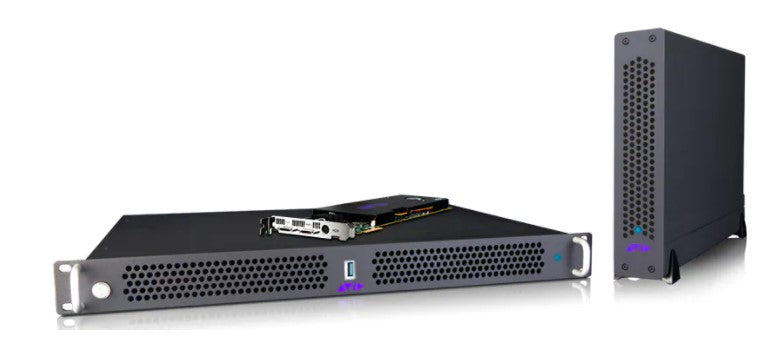

Bring the power of Pro Tools | HDX to your desktop or studio rack with the Pro Tools | HDX Thunderbolt 3 Chassis, built in partnership with Sonnet. The 1U rack-mountable chassis can house a single HDX PCIe card (not included) and Mac mini, providing portability and easy connection to the latest high-performance computers. Or get a ready-to-go HDX system in one easy bundle.

FEATURES

Connect HDX through Thunderbolt 3

Integrate Pro Tools | HDX with Thunderbolt 3-equipped Mac and Windows-based computers—including laptops—with a high-performance, ultra-quiet chassis. Take advantage of the greater processing power today’s machines offer, enabling you to work with more AAX Native plugins on top of AAX DSP.

Take HDX on the go

The rackmount chassis can securely house a Mac mini and HDX card, enabling you to configure a powerful yet portable self-contained system. Plus, it can be converted from rackmount system to desktop, and vice-versa, making it easy to move HDX from home studio to facility, and from live rig to hotel room.

Work and travel with peace of mind

In partnership with Sonnet, the chassis is robustly built with rugged aluminum and steel housing to protect your inside investments during transport and in any environment. It’s custom-designed for the size, power, and heat requirements of HDX, providing the guaranteed performance HDX reliably delivers.

Get everything in one easy bundle

Save money and set-up time with a preconfigured Pro Tools | HDX Thunderbolt 3 System Bundle that’s ready to go. Each system includes your choice of desktop or rackmount chassis, one HDX card, Pro Tools | Ultimate software, and your choice of Pro Tools hardware I/O interface.

SPECIFICATIONS

System Requirements: Avid-qualified Thunderbolt-equipped computer (see details)


Form factor Available as a desktop or rackmount chassis; desktop and rackmount conversion accessories also available as options
PCIe connectivity
One expansion slot for a Pro Tools | HDX PCIe card (sold separately)
Thunderbolt connectivity
Two Thunderbolt 3 ports—one for computer connection and one for daisy-chaining up to five additional Thunderbolt/USB devices
USB connectivity
One USB 3.0 port on the front panel of the rackmount chassis
Mac mini enclosure Internal enclosure to secure optional Mac mini with Thunderbolt 3 ports (rackmount chassis only)
Bandwidth

Thunderbolt interface: 40 Gbit/s

PCIe interface: 2,750 MB/s

Power supply
96W
Operating temperature
32º–95º F (0º–35º C)
Dimensions (H x W x D)

1U rack

Desktop chassis (with feet): 9.4 x 2.2 x 14.5 inches (238 x 57 x 368 mm)

Rackmount chassis (with rack ears and rails): 1.7 x 19 x 17.3 inches (44 x 482 x 439 mm)
