Class A/B Studio Power Amp - 100w/CH
200 WATTS OF STUDIO-GRADE POWER.

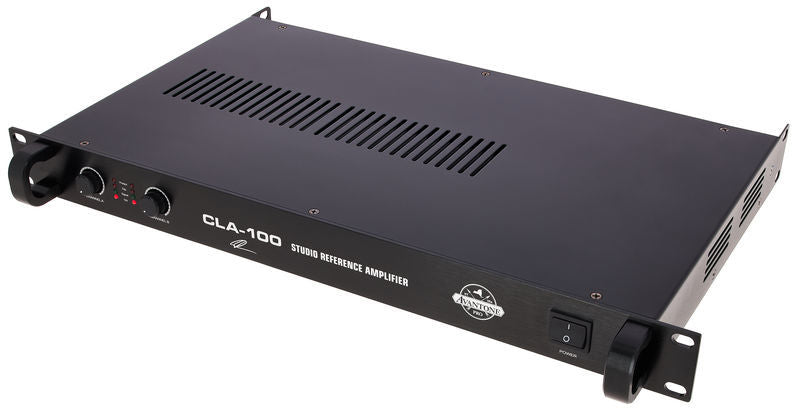

The newest addition to the CLA family of products, the 100WRMS per channel CLA-100 is a robust, convection only cooled, 1U rack mounted amplifier with the classic sound of hifi and studio class AB systems. Similar to its more powerful brother, the CLA-100 is powered with an oversized toroidal transformer and populated with generous, high-quality Japanese filter caps; driven by a classic complement of power MOSFETs for a detailed high end.
The CLA-100 is a miniature workhorse, delivering 100WRMS at less than 1%THD+Noise (1kHz) into 8 ohms per channel. Razor flat response of +/-0.25dB from 20Hz to 30kHz at full rated power gives the listener sonic quality equivalent to amplifiers costing several times as much.
ZERO FAN NOISE.
The CLA-100 Studio Reference Amplifier is designed to be used in a studio environment requiring high power output with no fan noise. The CLA-100 has zero fan noise, as it’s convection cooled — which makes it perfectly suited for control room installation.
THE CLA MONITOR FAMILY — ONLY FROM AVANTONE.
We’ve worked tirelessly to bring this classic monitor system back to the world — but it took more than just recreating a single speaker. A tremendous amount of attention has been put into every detail: matching the original MDF and wood veneer for the cabinet, matching the original winding dimensions/value/dc resistance of the inductors, profiling the most popular amplifier pairings of the original, just to name a few things. All of this development has culminated into a slew of monitor solutions.
The CLA-10 and CLA-10A: the iconic “white cone” monitors, in both passive and active configurations.
The CLA-100 and CLA-200: reference amplifiers with the perfect voicing to compliment the CLA-10 and original “white cones”
AV10 MHF and AV10 MLF: the classic “white cone” drivers — now available for the first time in decades as direct replacements for the original.
AV10 MXO: replacement crossover for original Yamaha™ NS10M™ studio monitors.
Specifications
-
FREQUENCY RESPONSE: 20-30Khz +/- 0.25Db
-
OUTPUT POWER: 100W into 8Ω / 245W bridged into 8Ω
-
DISTORTION: 0.3% THD+N, 1Khz (1% At Rated Input)
-
IMPEDANCE: 20KΩ
-
AMPLIFIER: Class AB
-
DIMENSIONS: 19”w x 10.25”d x 1.75”h
-
WEIGHT: 14.8 lbs
