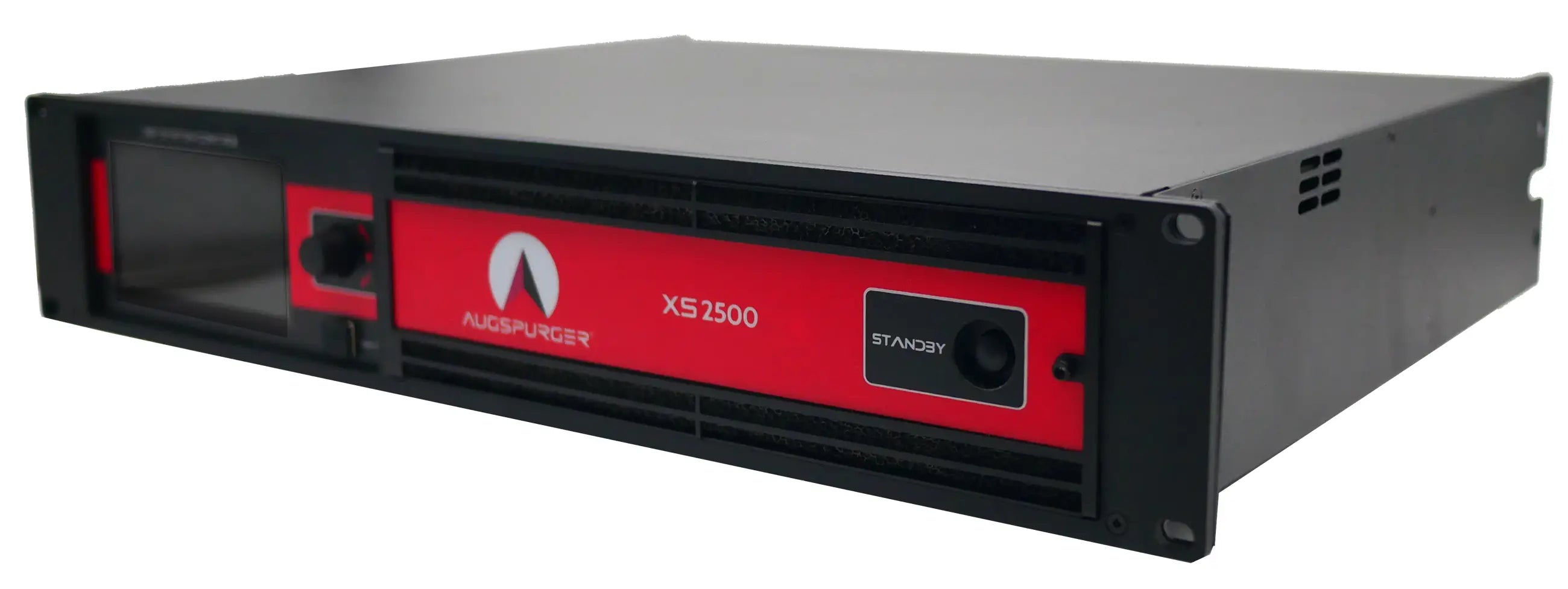

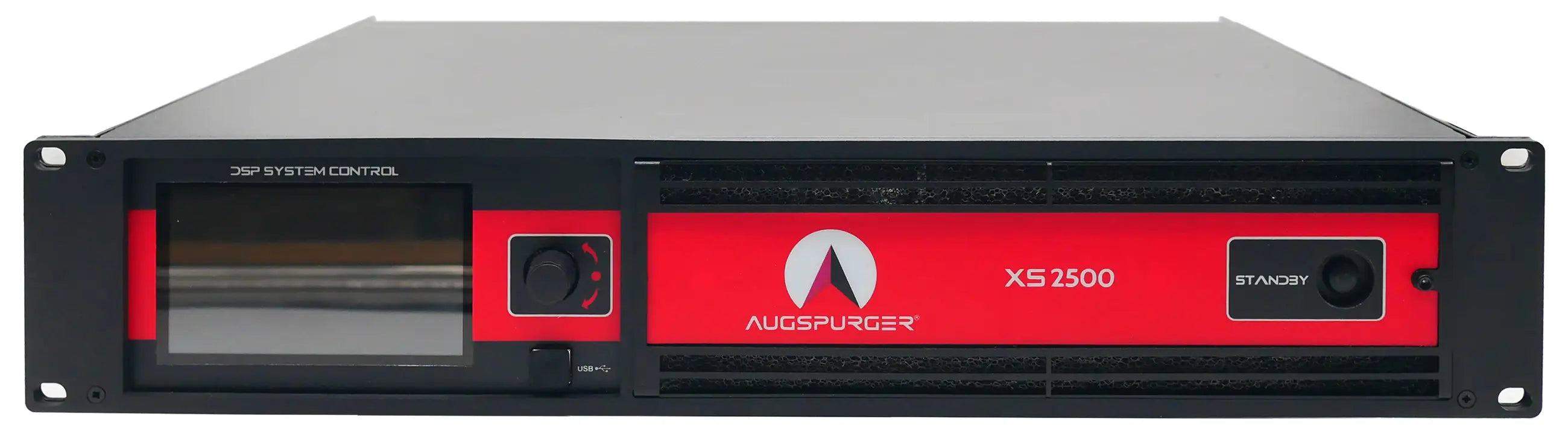

Augspurger® SX2500 4-Chl Amplifier

The Augspurger SX2500 is a 4-channel amplifier designed specifically for lower power system requirements, such as immersive environments like Dolby Atmos. It is equipped with a high-quality 64-bit double-precision 96kHz FIR-DSP and a large IPS display with a capacitive touch panel user interface. Powered by the advanced Augspurger DSPtune, this DSP allows power to be shared between channels based on the user's needs.

FEATURES

• Large IPS display, capacitive touch panel user interface
• 64-bit double-precision 96kHz DSP process
• Optional DanteTM Networking (AES67) and AES3 Digital inputs
• Two ports Ethernet and USB port for DSP control
• Low weight high efficiency class D topology
• Universal power supply with PFC
• 8, 4, and 2 Ohm low impedance operation
• 100, 70, 50, and 35 V high impedance modes
• Augspurger DSPtune
• Industry standard Neutrik® XLR and Speakon® connectors
• Neutrik® PowerCon mains connector
• Removable dust filter foam
• Up-side-down design to avoid fan dust accumulation
• Temperature controlled, front to back cooling fan

Augspurger DSPtune also offers three libraries with 100 system preset memories, 20 user preset memories, and 20 user snapshot memories. DSPtune includes multi-level password protection, ensuring security for critical setup parameters and overall system protection.

The Augspurger SX2500 is ideal for powering four MX-65P passive speakers in a Dolby Atmos setup, offering a maximum total output power of 2500 W across 4 channels.
