$ 37,750.00

Dual 15" Three-way active Main Monitor system with DSP control and 2X18 Sub, priced per PAIR.

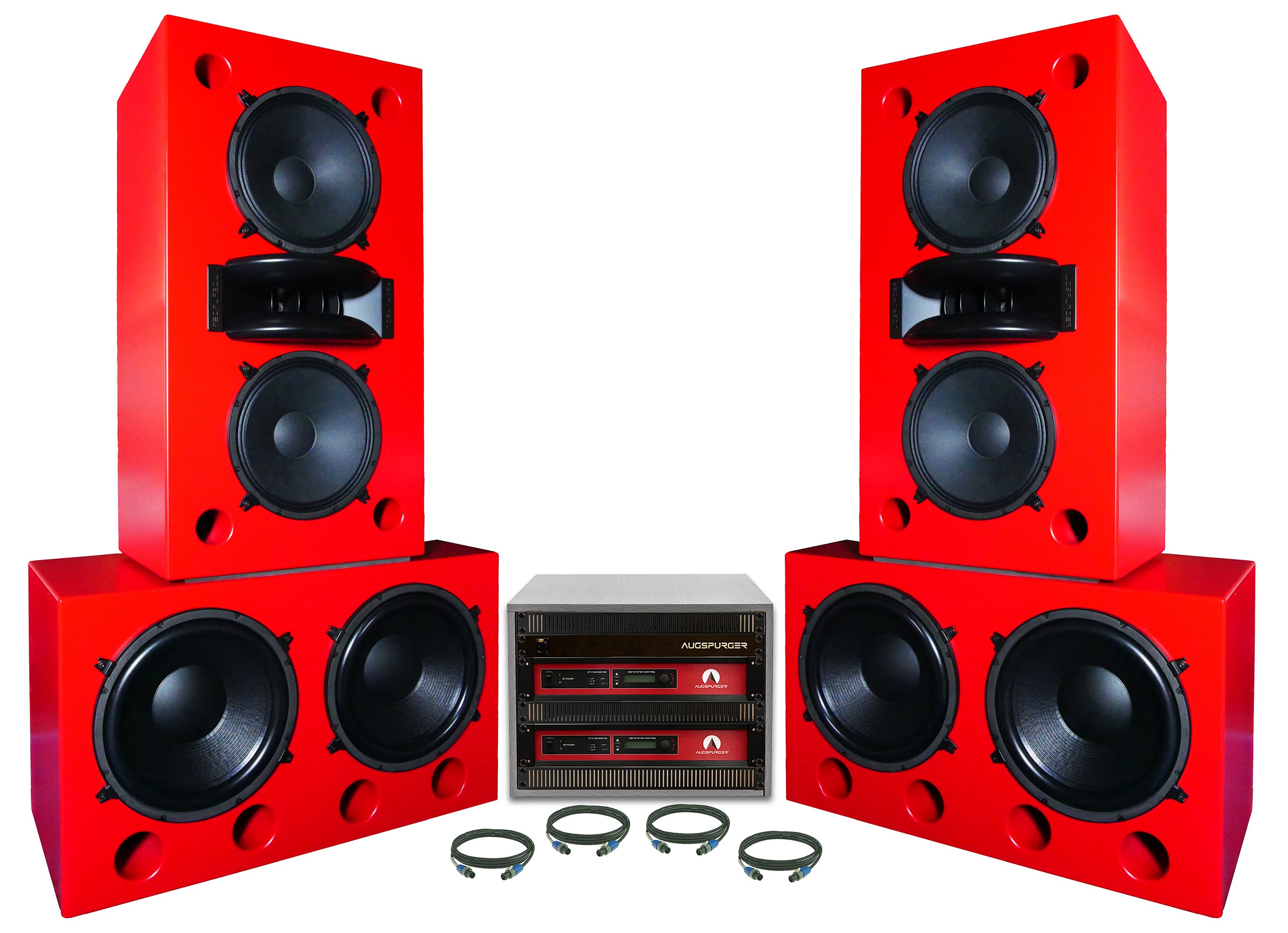

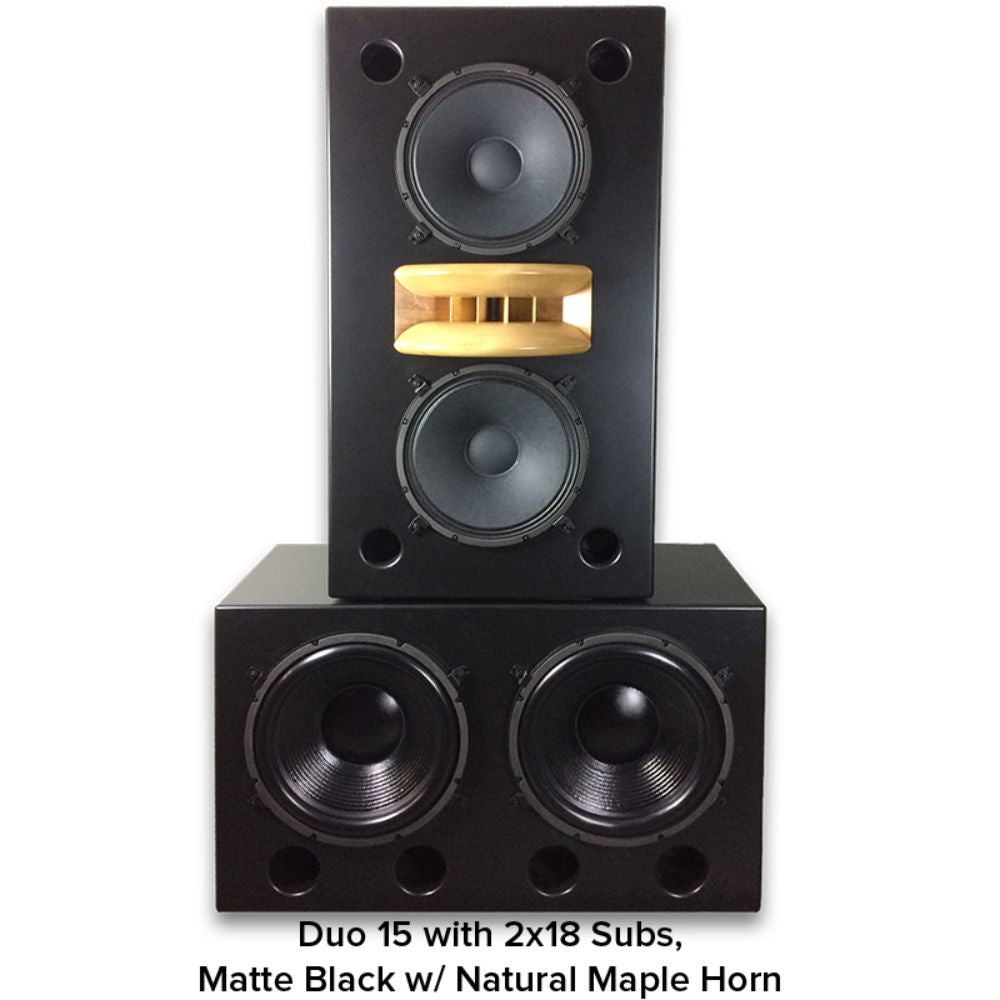

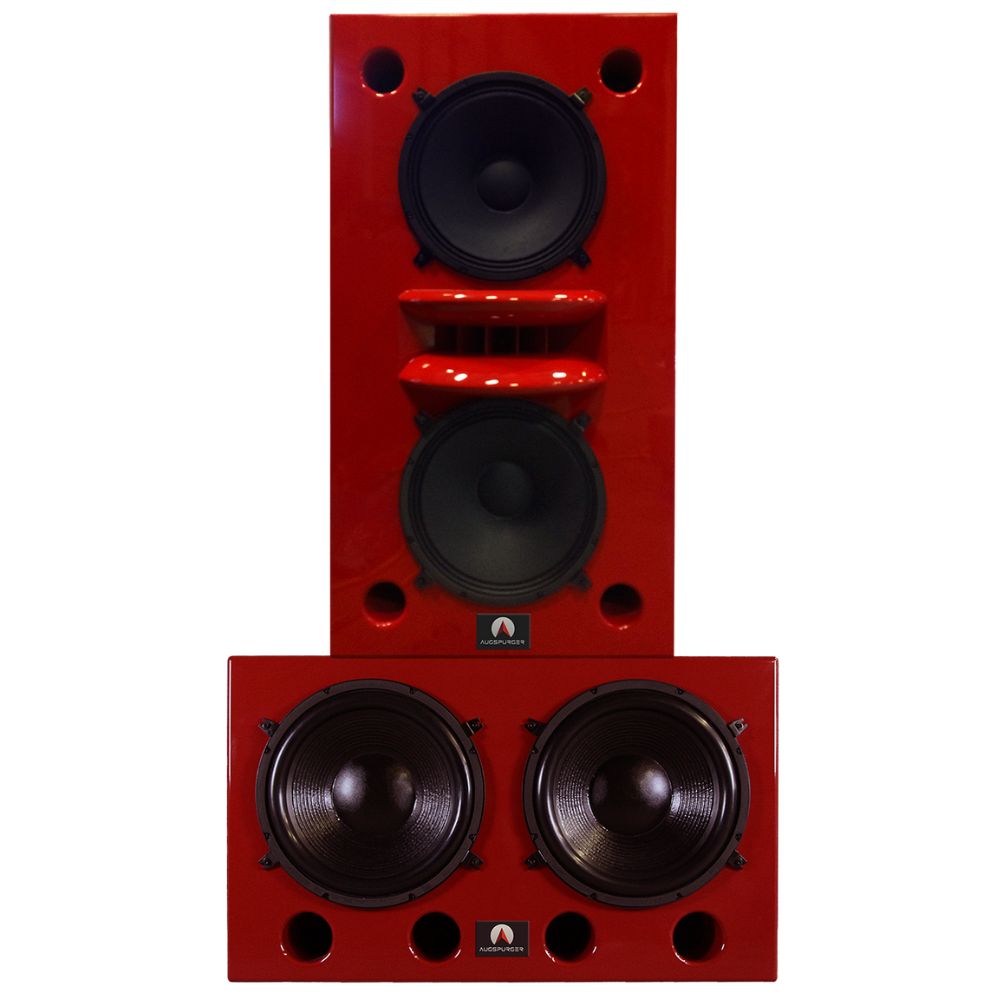

The Duo 15 S218 combines a pair of 215V Main monitor cabinets, with a pair of DSP3 3-way amplifier modules with integrated DSP, and a pair of Dual 18" Subwoofer cabinets into a fully integrated cost-effective three way main monitor system.

The Augspurger Duo 15V (Vertical) Active DSP main monitor system represents the culmination of Augspurgerʼs renowned cabinet and horn design, with our experience in custom main monitor construction and systems integration.

The Duo system incorporates a pair of dual 15” drivers with a compression driver feeding a hardwood horn in a DʼAppolito array for precise imaging and optimal phase coherency. The cabinet features Augspurger's proprietary drivers, which are the result of years of design, field testing and refinement. The end result is a system that is extremely accurate and linear, while providing power and impact like no other monitoring system.

The Active DSP is matched to the specific drivers, and adjustments can be made to compensate for deficiencies or room modes. The system can be precisely tuned to your roomʼs exact profile by one of our room tuning experts, or with the user software running on your PC.

The system is powered by a custom electronics package that features 2500W multi-channel power per side (1400W to each side subwoofers,800W to each side 15” drivers, and 250W to each side compression horn), and incorporates an integrated DSP processor that provides active crossover, equalization, limiting and delay for driver alignment and phase correction. The Active DSP is matched to the specific drivers, and adjustments can be made to compensate for deficiencies or room modes. The system can be precisely tuned to your roomʼs exact profile by one of our room tuning experts, or with the user software running on your PC.

Free-standing or soffitable.

  • SXE/2500 three-way Class D networkable amplifiers (1400W, 800W & 250W) with active DSP providing crossover, limiting, driving alignment and system equalization & control software, rackmounted.

Main Dims: 47.5"H x 26"W x 18"D/120.65 x 66.04 x 45.72 cm

Subs Dims: 26.25"H x 44"W x 20"D/ 66.67 x 111.76 x 50.8 cm

The speakers come standard in a matte black finish, and custom high gloss automobile paint finishes are available in any color to complement your room decor. Matte silver (MacBook) is available at no upcharge.

    Breathtaking Power. Unmistakable Clarity



    Description:

    2-way actively powered Main Monitor with dual 15” LF/Mid drivers and wooden horn, with on-board

    DSP for system voicing. Optional 3-way amp to power LF/Subwoofer via Speakon NL2 connection

    Cabinet Materials:

    1.5” High density fiberboard baffle, 1” high density fiberboard sides and back, recycled cotton fiber

    fill.

    Horn:

    Single cut, rock maple for painted cabinets, figured Big Leaf Maple for wood finished horns,

    machine milled, hand assembled and finished.

    HF Driver:

    4” 99.8% Pure beryllium diaphragm by TruExtent, powered by neodymium compression driver with

    ultra-low distortion capable of 125w RMS/250w program for exceptionally high SPL without

    distortion, 16 ohm, 104db sensitivity.

    LF/MF Driver:

    15” Carbon fiber loaded paper cone, sanoprene surround, conex spider woofer with ferrite magnet,

    11.0 mm X max, 700W RMS / 1200 program, 8 ohm.

    Amplifiers:

    2-Way systems: DSP-2 2-way D-Class ultra-low distortion, high output amplifier with DSP

    controlled crossover, eq, phase, driver alignment, limiting (user optional) and level control. HF amp

    channel with 150w at 16 ohm, LF channel with 600w at 8 ohm

    3-Way systems: DSP-3 3-way D-Class ultra-low distortion, high output amplifier with DSP

    controlled crossover, eq, phase, driver alignment, limiting (user optional) and level control. HF amp

    channel with 150w at16 ohm, MF channel with 600w at 8 ohm, LF/Sub channel with 1100w at 4

    ohm

    Control: Software: Via USB with proprietary PC Software offering 16 FIR user definable EQ Filters

    per band, Phase Alignment, Time alignment of each band, limiting and level control.



    Frequency Response: 25Hz - 20kHz ±3db, no sub.

     SPL: 125db without sub, 135db with 18” sub

    AC Power Input: 110 to 240 Auto sensing, internally fused

    Cooling: Convention cooled, rear mounted heat sinks, no fans

    Weight: 180lbs each without amps, 196lbs each with amps

    Shipping weight: 200lbs each without amps, 220lbs with amps

    Cabinet Dimensions: 47.5"H x 26W" x 18”D.  cm: 120.65 x 66.04 x 45.72
