$ 31,900.00

Free-standing or soffit-mounted Dual 12" two-way active Main Monitor system with "MidField" horn and DSP control, plus 2X18 Sub, priced per PAIR

At only 18” wide, 20” deep and 38" high, Augspurger’s Duo 12MF is an ultra-compact footprint studio reference monitor ideal for tracking, mixing, and mastering, featuring Augspurger’s renowned DSP-based tuning capabilities. The free-standing system is a variant of Augspurger’s popular Duo 12V 2X12 cabinet design, replacing the Duo 12V’s classic Augspurger horn with the Dave Malekpour designed 30% smaller “MF” horn, which was introduced in 2015 with the Duo 8 MiniMian and continued in early 2016 with the Solo 12MF. This enables the powerful Duo 12 main monitor design to be placed in the midfield zone, closer to the mix position. (Both Duo 12V and Duo 12MF models are concurrently available).

Augspurger’s MF Range is designed to fit in smaller control rooms where a traditional soffited mains system would not be possible, and where the distance between the mixer and the mains is tighter. Like all Augspurger Active systems, power is provided by on-board DSP amps delivering 600 watts RMS per side with .003 THD (Total Harmonic Distortion). Optional matching subwoofers are available in 1X12, 2X12, 1X18 and 2X18 sizes, expanding the system to a three-way, full-range solution. Wattage is then boosted to 2500W per side.

Free-standing or soffitable.

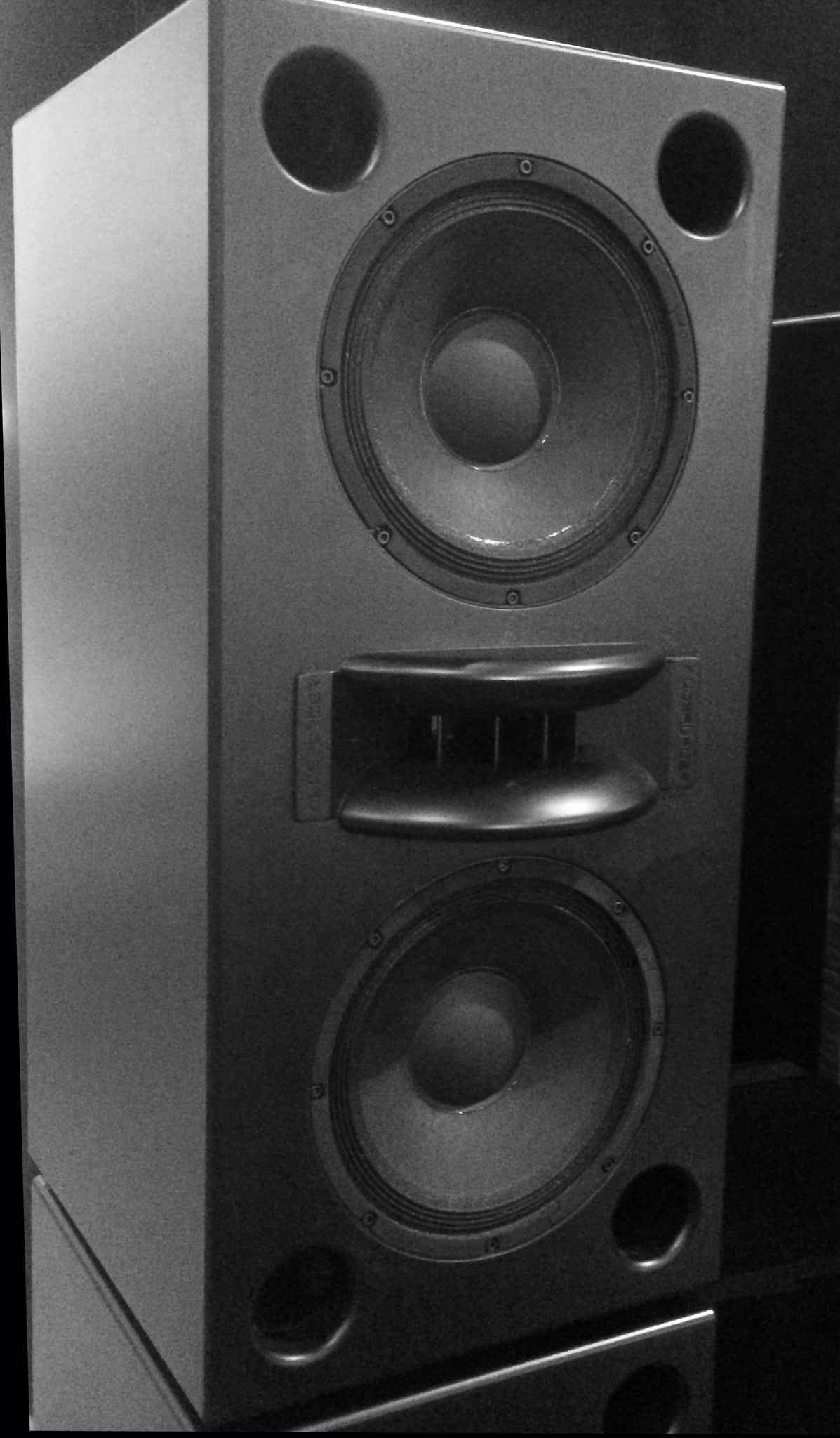

    • (2) Two-way main monitor cabinets loaded with two 12” LF drivers and one 4’’ high compression driver with beryllium diaphragm on a Malekpour-designed rock maple “MF” (MidFocus) horn.

    • (2) S218 Subwoofer cabinets with two 18" sub driver each.
    • (2) SXE3/2500 Three-way Class D networkable amplifier (1400W, 800W & 250W) with Active DSP providing crossover, limiting, driver alignment and system equalization & control software, rack-mounted

      Mains Dims: 38”H x 18”W x 20”D / 96.52 x 45.72 x 50.8 cm

                    Subs Dims: 26.25"H x 44"W x 20"D/66.675 x 111.76 x 50.8 cm
Sonic Scoop article on Duo 12MF

The speakers come standard in a matte black finish and matte silver at no upcharge, Custom high gloss automotive paint finishes are available in any color to complement your room decor. Call for custom paint pricing.



    Breathtaking Power. Unmistakable Clarity.



    Duo 12MF Specifications:

    2-way main monitor with optional 3-way amp to power LF/Subwoofer via Speakon NL2 connection.

    Connections:

    XLR Input and pass thru output, USB, Powercon, Speakon NL-2 output on 3way systems.

    Cabinet Materials:

    1.5” High Density Fiberboard Baffle, 1” High density fiberboard back and sides, recycled cotton fiber fill.

    Horn:

    Single Cut, Rock Maple for painted, machine milled, hand assembled and finished.

    HF Driver:

    4” 99.8% Pure Beryllium Diaphragm by TruExtent for Augspurger, powered by Neodymium compression driver with ultra-low distortion capable of 125W RMS/ 250W Program for exceptionally high SPL without distortion 16 ohm.

    LF/MF Driver:

    12” Carbon Fiber loaded paper cone woofer with Ferrite Magnet, 700W RMS / 1400W Program, 8 ohm



    Amplifier Options;

    2-Way systems: DSP-2 2-way D-Class Ultra-low distortion, high output amplifier with DSP controlled Crossover, Eq, Phase, Driver alignment, Limiting (user optional) and level control. HF Amp Channel with 250W at 8 ohm, LF Channel with 1000W at 8 Ohm.

    3-Way systems: DSP-3 3-way D-Class Ultra-low distortion, high output amplifier with DSP controlled Crossover, Eq, Phase, Driver alignment, Limiting (user optional) and level control. HF Amp Channel with 150W at 16 ohm, MF Channel with 1000W at 8 Ohm, LF/Sub Channel with 1100 W at 4 ohms

    Controls: Software: Via USB with proprietary PC Software offering 16 FIR user definable EQ Filters per band, Phase Alignment, Time alignment of each band, limiting and level control.

    Cabinet Dimensions: 18W x 38H x 20D (in) - 45.7W x 96.5H x 50.8D (cm)

    Frequency Response: 22Hz – 20kHz ±3dB (with sub)

    SPL: 118 db without sub, 124db to 128db with subs

    AC Power Input: 110 to 240 auto sensing, internally fused

    Cooling: Convention cooled, rear mounted heat sinks, no fans
