$ 31,500.00

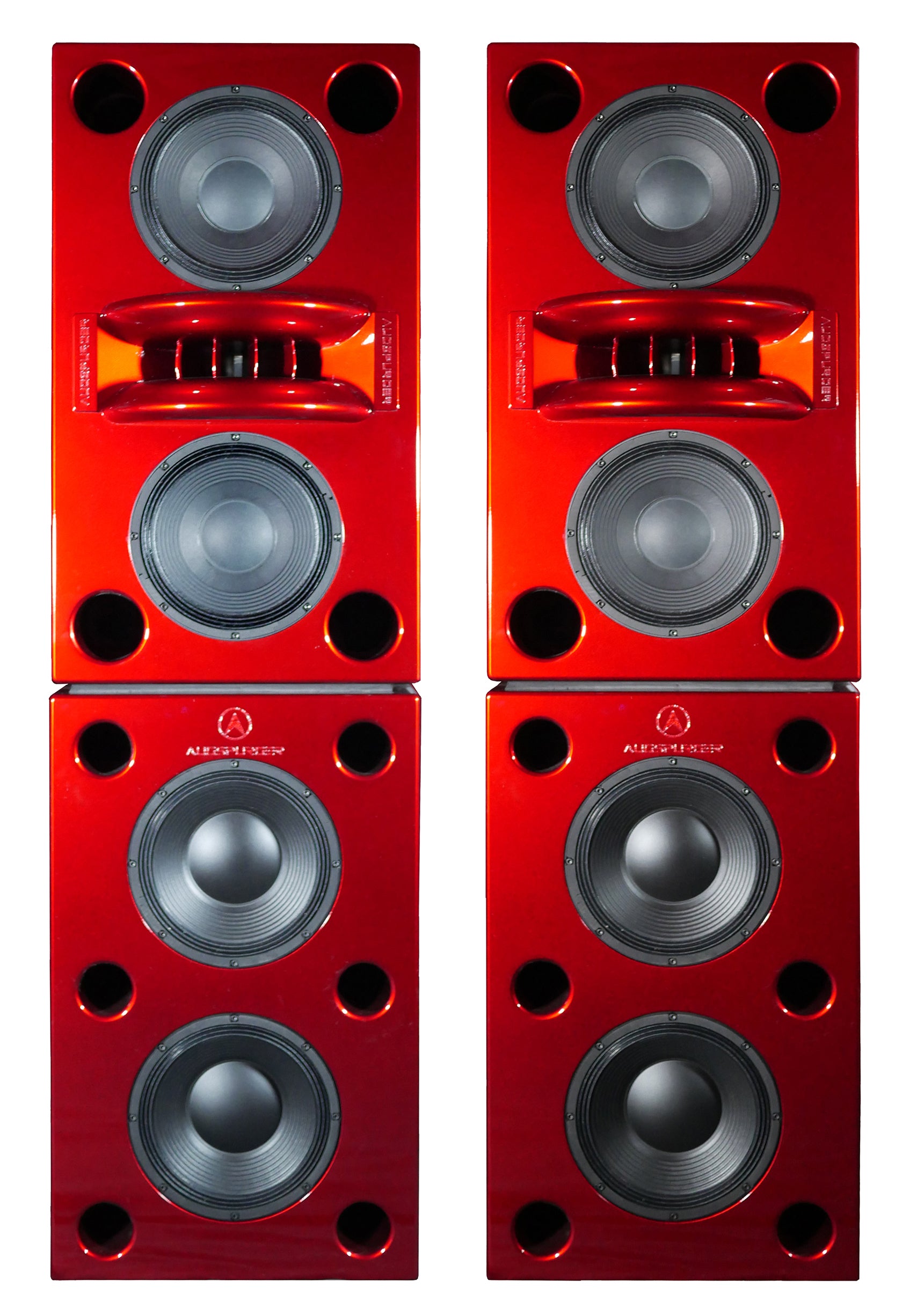

Dual 12" two-way active Main Monitor system with DSP control, stereo, plus 2X12 Sub, priced per PAIR..

The Duo 12V aims to take the considerable physical size of Augspurger systems out of the equation for today's smaller studios. Duo 12 captures the magic of the original Augspurger design in a compact format, with all the clarity, depth and power of its larger siblings. Noteworthy features include main monitor cabinets with dual 12″ drivers, the distinctive Augspurger wooden horn with custom compression driver with beryllium diaphragm, Optional separate subwoofer cabinets are available with 12" or 18" drivers. Both two and three-way systems are powered by cabinet-mounted Class-D Amplifier systems, with 2500W per side (1400W to Sub, 800W to Mid drivers, 250W to Horn). Extensive DSP provides crossover, limiting, driver alignment and system equalization.

Free-standing or soffitable.

(2) Two-way main monitor cabinets loaded with two 12” LF drivers and one 4’’ high compression driver with beryllium diaphragm on an Augspurger-designed rock maple wood horn.
(2) S212 subwoofer cabinets with two 12" sub driver each
(2) SXE3/2500 Three-way Class D networkable amplifiers (1400W, 800W & 250W) with Active DSP providing crossover, limiting, driver alignment and system equalization & control software, rack-mounted.

    Main Dims: 38”H x 21.5”W x 18”D. / 96.52 x 54.61 x 45.72 cm

    Sub Dims: 35"H x 18"W x 20"D/ 88.9 x 45.72 x 50.8 cm

      The speakers come standard in a matte black finish, and custom high gloss automobile paint finishes are available in any color to complement your room decor. Matte silver (MacBook) is available at no upcharge.

        Breathtaking Power. Unmistakable Clarity


        2-way actively powered Main Monitor with dual 12” LF/Mid drivers and wooden horn, with on-board

        DSP for system voicing. Optional 3-way amp to power LF/Subwoofer via Speakon NL2 connection

        Cabinet Materials:

        1.5” High density fiberboard baffle, 1” high density fiberboard sides and back, recycled cotton fiber



        Single cut, rock maple for painted cabinets, figured Big Leaf Maple for wood finished horns,

        machine milled, hand assembled and finished.

        HF Driver:

        4” 99.8% Pure beryllium diaphragm by TruExtent, powered by neodymium compression driver with

        ultra-low distortion capable of 125w RMS/250w program for exceptionally high SPL without

        distortion, 16 ohm, 104db sensitivity.

        LF/MF Driver:

        12” Carbon fiber loaded paper cone, sanoprene surround, conex spider woofer with ferrite magnet,

        11.0 mm X max, 700W RMS / 1200 program, 8 ohm.

        Amplifiers (active systems):

        2-Way systems: DSP-2 2-way D-Class ultra-low distortion, high output amplifier with DSP

        controlled crossover, eq, phase, driver alignment, limiting (user optional) and level control. HF amp

        channel with 150w at 16 ohm, LF channel with 600w at 8 ohm

        3-Way systems: DSP-3 3-way D-Class ultra-low distortion, high output amplifier with DSP

        controlled crossover, eq, phase, driver alignment, limiting (user optional) and level control. HF amp

        channel with 150w at16 ohm, MF channel with 600w at 8 ohm, LF/Sub channel with 1100w at 4


        Control: Software: Via USB with proprietary PC Software offering 16 FIR user definable EQ Filters

        per band, Phase Alignment, Time alignment of each band, limiting and level control.

        Frequency Response: 25Hz - 20kHz ±3db, no sub.

         SPL: 115db without sub, 120db with 12” sub, 124db with 18” sub

        AC Power Input: 110 to 240 Auto sensing, internally fused

        Cooling: Convention cooled, rear mounted heat sinks, no fans

        Weight: 120lbs each without amps, 136lbs each with amps

        Shipping weight: 150lbs each without amps, 166lbs with amps

        Cabinet Dimensions: 38” H x 21-1/2” W x 18” D
