Your recordings, made better.

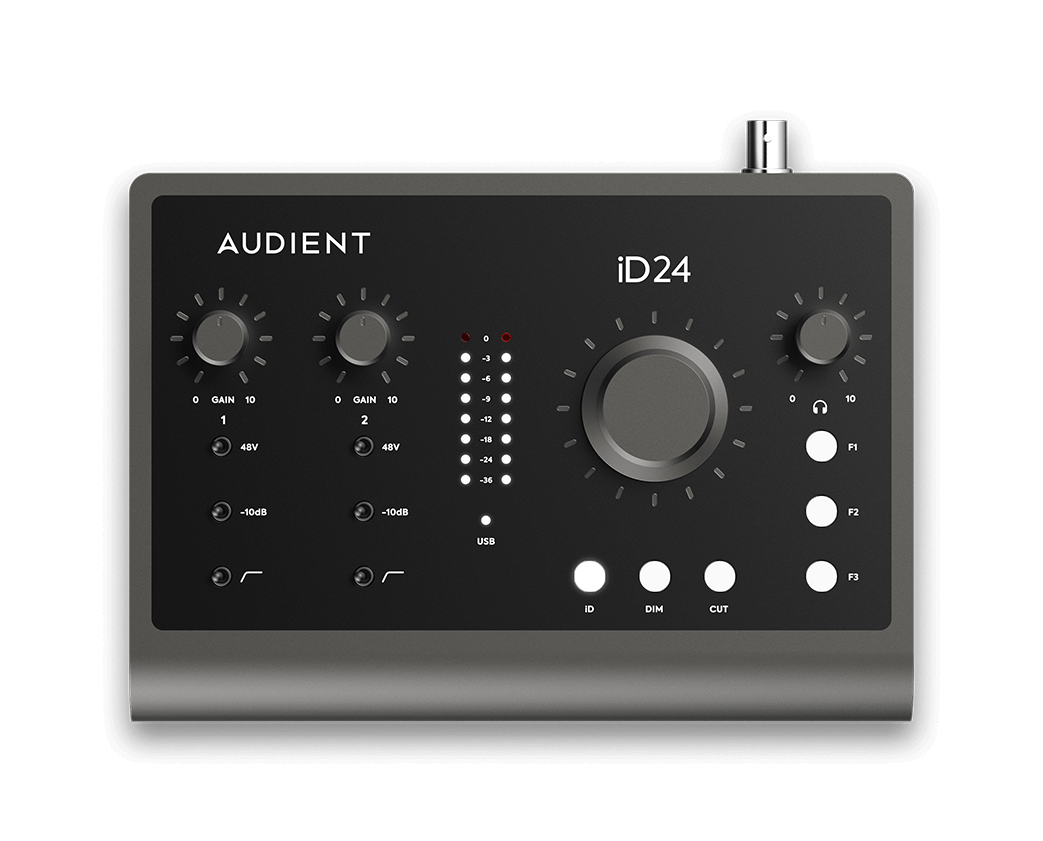

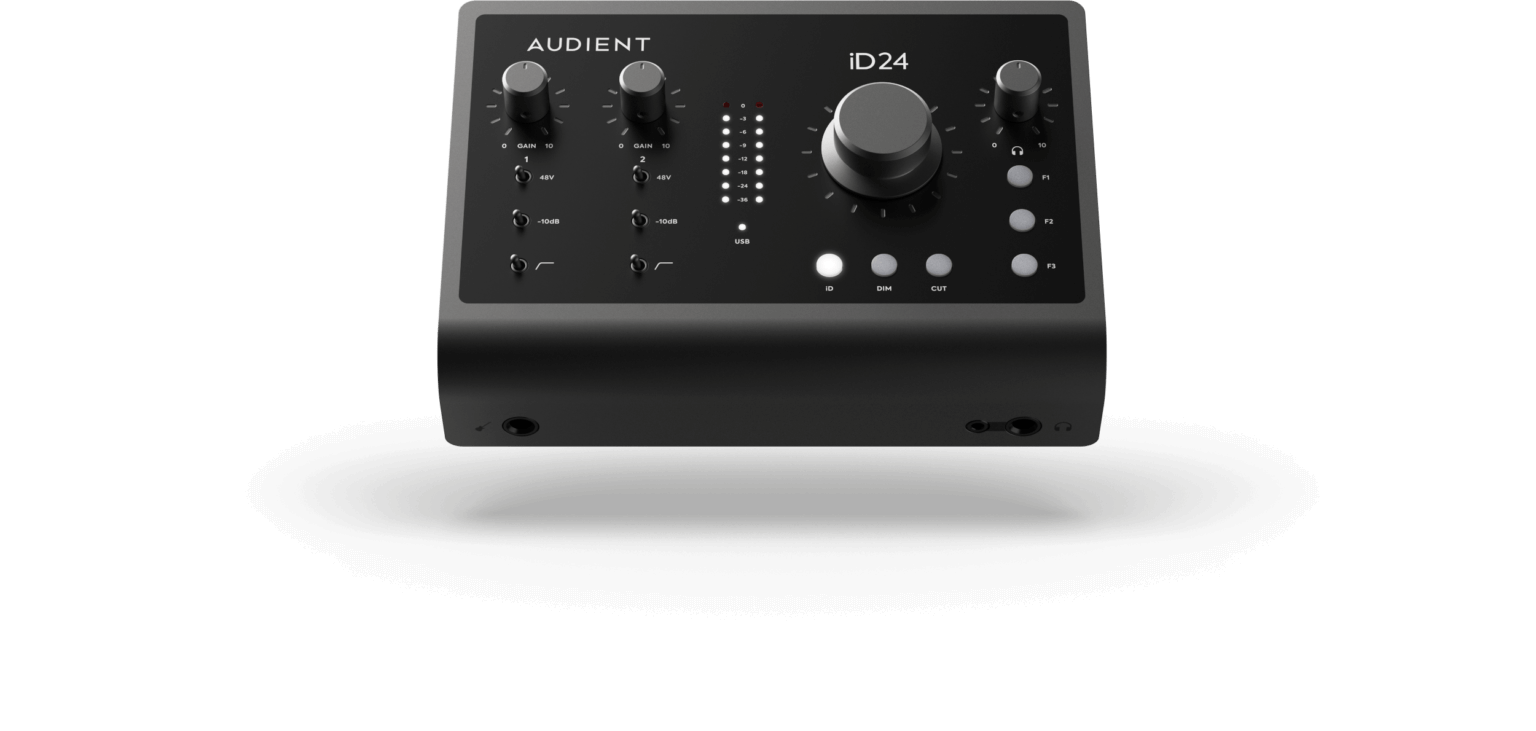

Introducing iD24, the audio interface made for producers and engineers. Featuring two Audient Console Mic Preamps, class leading converters and an intuitive layout, iD24 effortlessly combines astonishing audio performance with ease of use. Add to that professional must have features like balanced inserts, ADAT expandability and customisable monitor control, iD24 makes getting studio quality results easier than ever.

The professional sound you deserve

Every iD interface features the Audient Console Mic Preamp, the same discrete circuit design found in our renowned recording console the ASP8024-HE. Designed to deliver ultra- low noise and low distortion with a touch of classic analogue warmth, iD24’s two Audient Console Mic Preamps deliver a clean, accurate and true to source translation of your audio.

How does it sound?

The Audient Console Mic Preamp is a high grade hybrid discrete and op amp design that delivers a clean, accurate and detailed translation of your source.

Now that’s quiet

With a noise floor 30,000 times quieter than the signal level your recordings will be captured with stunning clarity.

Class Leading Converters

It’s all in the details


Hear every nuance, every aspect of your audio with iD24’s class leading converters. With 32-bit DAC converter technology and 126dB of dynamic range, iD24s converters make sure you hear subtle details, identify problematic issues and make better mix decisions. Experience remarkable clarity from the moment you press play.

Expand and conquer

Be ready to expand when you need to tackle bigger sessions like recording drums or a live band with iD24’s optical input and output connections. Supporting both ADAT and SPDIF, iD24 lets you boost your I/O by adding up to 8 channels of mic preamps to your setup.

Hardware Integration

Integrate your favourite outboard FX prior to conversion and start creating signal chains that rival the very best. The insert returns also gives you direct access to the A/D converters providing the cleanest signal path possible, making it great for print-backs or integrating outboard line level sources.

Plug and play

Designed to replicate the input stage of a classic valve amplifier, iD24’s harmonically rich JFET Instrument Input gives you the perfect sonic foundation for your guitars or basses before you hit your amp sims.

Set up in seconds

iD24 is fully bus powered via USB, meaning there is no need for an external power supply. Just pro features in a portable desktop package with zero compromise on sound quality or performance.

Headphone Outputs

Confidently reference check your mixes on headphones with iD24’s independent stereo headphone amp, providing enough power to support headphones up to 600Ohms. And with both a ¼” jack and a mini-jack, iD24 allows you to plug in two sets of headphones at once ensuring you and your artist can work together seamlessly.

Speaker Outputs

Connect and listen to your mixes through two sets of speakers with iD24’s four line outputs. Alternatively use the extra line outputs to send audio to an external headphone amp for distribution to your artists.

Features

  • 2 x Audient Console Mic Preamps
  • Class Leading AD/DA Converters
  • 1 x JFET Instrument Input
  • 2 x Fully Balanced Inserts
  • 1 x ADAT Input & Output
  • 4 x Line Outputs
  • 1 x Dual Headphone Output
  • 1 x Word Clock Output
  • 3 x User Defined Function Keys
  • Dedicated Dim and Cut Controls
  • +48V, Pad, and HPF Switches
  • ScrollControl
  • Ultra-low Latency Software Mixer (Direct Monitoring)
  • Audio Loop-back
  • True Phantom Power over USB
  • USB3.0 Bus Powered
  • 24bit/96khz
  • Mac & Windows Compatible
  • All Metal Design
  • Free Software + Plugins

Specifications

Microphone Preamplifier

MIC GAIN: 0 to +58dB

MAXIMUM INPUT LEVEL: +12dBu

CROSSTALK: <-100dBu @ 1kHz & 10kHz

THD+N: @0dBu 1kHz: 0.0015%, -96dB

MIC EIN: -130dBU A-Weighted

CMRR: >75dB@1kHz

SNR: 97.5dB Unweighted, 100dB A-Weighted

FREQUENCY RESPONSE: +/- 0.5dB 10Hz to 40kHz

INPUT IMPEDANCE (Mic): 3kΩ balanced

INPUT IMPEDANCE (Line): 10kΩ balanced

PAD: -10dB

HPF CUTOFF FREQUENCY: 100Hz

PHANTOM POWER: 48V +/-4V @ 10mA/Channel

XLR COMBI FEMALE: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)

1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

Line Inputs

LINE GAIN:-10 to +48dB

MAXIMUM INPUT LEVEL:+22dBU

THD+N @0dBu 1kHz:0.0013%, -97dB

D.I / Instrument Input

D.I GAIN:0 to 58dB

MAXIMUM INPUT LEVEL:+12 dBu

THD+N @ 0dBu (1kHz):0.0075%, -82dB

SNR:95dB unweighted, 97.5dB A-weighted

FREQUENCY RESPONSE:+/- 0.5dB 0.5dB 10Hz to 40kHz

INPUT IMPEDANCE:500kΩ unbalanced

1/4” JACK:TIP (Hot) & SLEEVE (Shield)

Analogue to Digital Converter

MAXIMUM INPUT LEVEL:12.5dBu=0dBFS

CROSSTALK:@1k -135dB, @10k -125dB

FREQUENCY RESPONSE:+/- 0.2dB 0.5dB 10Hz to Fs/2 (Nyquist)

THD+N @ -1dBFS (1kHz):0.0004%, -108dB

DYNAMIC RANGE:122dB A-weighted

INPUT IMPEDANCE:>10kΩ

1/4” JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)

Digital to Analogue Converter

MAXIMUM OUTPUT LEVEL:12dBu=0dBFS

THD+N @ 1kHz -1dBFS:0.0003%, -110dB

DYNAMIC RANGE:126.5dB A-weighted

CROSSTALK:-130dB @ 1kHz, -115dB @ 10kHz

FREQUENCY RESPONSE:+/- 0.1dB 10Hz to Fs/2 (Nyquist)

OUTPUT IMPEDANCE:<100Ω

1/4” JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)

Headphone Outputs

MAXIMUM OUTPUT LEVEL:18.5dBu=0dBFS

THD+N @ -1dBFS (1kHz):0.0006%, -104dB

DYNAMIC RANGE:124dB A-weighted

CROSSTALK:-117dB @ 1kHz, -101dB @ 10kHz

FREQUENCY RESPONSE:+/- 0.2dB 10Hz to Fs/2 (Nyquist)

OUTPUT IMPEDANCE:<50Ω unbalanced

MAX LEVEL INTO 30R:2.63V Peak, 1.87V RMS, 232mW

MAX LEVEL INTO 60R:4.28V Peak, 3.03V RMS, 295mW

MAX LEVEL INTO 600R:7.91V Peak, 5.6V RMS, 104mW

USB-C High Speed

NO. OF INPUT CHANNELS:10 (2 Analogue, 8 Digital)

NO. OF OUTPUT CHANNELS:14 (6 Analogue, 8 Digital)

CONNECTOR:USB Type-C

INCLUDED CABLES:1m USB 2.0 Type-C to Type-C

Digital Input

8-CHANNEL ADAT:44.1kHz to 48kHz

4-CHANNEL ADAT:88.2kHz to 96kHz (SMUX)

STEREO S/PDIF44.1kHz to 96kHz (Stereo)

Digital Output

8-CHANNEL ADAT:44.1kHz to 48kHz

4-CHANNEL ADAT:88.2kHz to 96kHz (SMUX)

STEREO S/PDIF44.1kHz to 96kHz (Stereo)

DSP Mixer Latency

Round Trip (in-to-out)

44.1kHz:0.344ms

48kHz:0.312ms to 96kHz (SMUX)

88.2kHz:0.188ms

96kHz:0.177ms

Word Clock Output

WORD CLOCK OUTPUT:44.1kHz to 96kHz
