Apogee SYMPHONY I/O MKII DANTE + PT HD CHASSIS WITH 16 ANALOG IN + 16 ANALOG OUR
Put the Sound of a Symphony on the Most Popular Audio Over IP Network
With the Symphony I/O Mk II Dante + Pro Tools HD option card and a simple Ethernet cable, Symphony I/O Mk II can be easily connected and shared across post production, broadcast, live sound or recording studio networks, unleashing legendary sound quality on the world’s most popular audio-over-IP solution. The Symphony I/O Mk II Dante option card also includes Pro Tools connectivity for integration of Pro Tools | HD systems into a Dante network environment. No other Dante-enabled audio interface offers this level of quality, flexibility and modularity.
The Symphony I/O Mk II Dante option card uses Audinate’s Brooklyn II module which features plug-and-play media networking for up to 32 bidirectional channels at 96kHz and 16 bidirectional channels up to 192k. The system can be configured with a number of custom options ranging from 8-32 analog I/O channels. Symphony I/O MK II Dante allows up to 32 channels with Pro Tools and redundant Dante connectivity to be fitted into a single two space rack device providing the smallest footprint available with this feature set.
Ultimate Sound Quality – Features Apogee’s Flagship AD/DA conversion and optional mic preamps I/O Flexibility – Up to 32 channels of analog inputs and outputs per unit with optional 8 mic preamp module
Pro Tools HD Peripheral Port – Up to 32 bidirectional channels up to 192kHz. Route Symphony I/O module inputs or Dante Rx to Pro Tools inputs by blocks of 8 channels. Pro Tools HD outputs are routed to Dante Tx and I/O module outputs
Interoperable networking technology – Works seamlessly with any other Dante-powered device
Up to 32 bidirectional channels at 96kHz – 16 bi-directional channels at 192kHz
Pro Tools | HD over-IP made easy
If Pro Tools is part of your network environment, Symphony I/O Mk II’s Pro Tools | HD peripheral port lets you route audio between your Pro Tools session, the Dante network and Symphony I/O Mk II modules, no need for an additional, stand-alone box.
- Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors
- Coax IN: S/PDIF on 1 RCA connector
- Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors
- Coax OUT: Supports SPDIF on 1 RCA connector
Connection: Dante + Pro Tools | HD
Performance: 44.1kHz – 192kHz
Compatibility: macOS or Windows

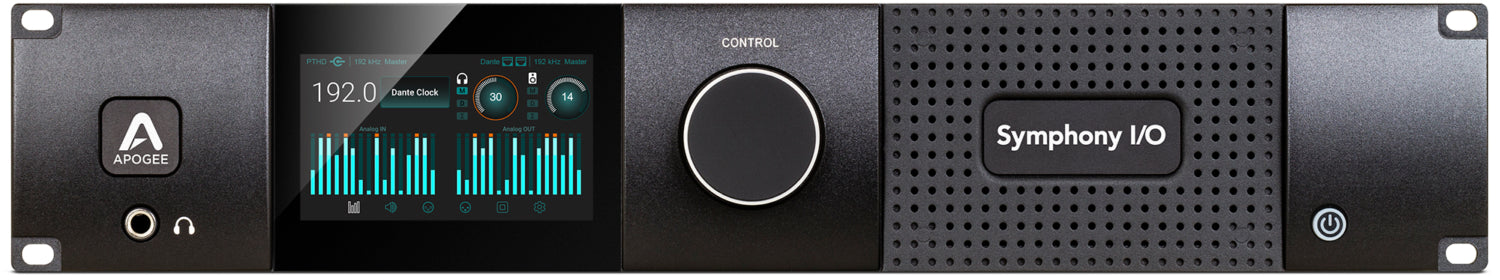

Control: Front panel touch screen
