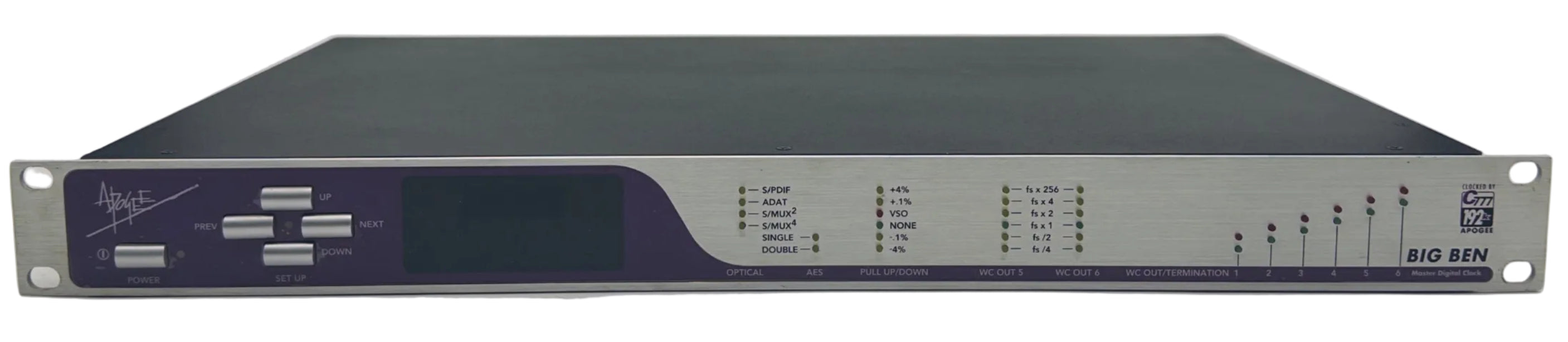

Apogee Big Ben Digital Clock (Preowned)

Name: Apogee Big Ben Digital Clock (Preowned)
Brand: Apogee
Price: 400.0 USD
Availability: InStock

$ 400.00

QTY:

Apply for Financing PADvantage

Call us at 1-877-223-8858 or Ask a Question below

Apogee Apogee Big Ben Digital Clock (Preowned)

$ 400.00

Apogee Big Ben Digital Clock (Preowned)

Model

Apogee Big Ben Digital Clock (Preowned)

The Apogee Big Ben is a dedicated master word clock generator engineered for high-precision digital audio synchronization. Utilizing Apogee’s C777 Clock Technology, it minimizes digital jitter across complex studio setups and provides real-time format conversion up to 192 kHz.

Core Functionality

C777 Direct Digital Synthesis (DDS): Advanced clock generation engine with Adaptive Loop Filtering (ALF) for maximum jitter reduction.
Sure Lock System: Maintains continuous, stable clock output at the last detected frequency if an external reference signal drops.
Format Conversion: Concurrent signal routing and conversion between AES/EBU, S/PDIF, and ADAT/Optical formats.
Smart Termination Sensing: Integrated visual indicators automatically detect incorrect BNC cable termination.

Technical Specifications

Feature	Specification
Clock Engine	Apogee C777 Direct Digital Synthesis (DDS)
Supported Sample Rates	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (±12% VSO)
Pull-Up / Pull-Down	±0.1% and ±4% rates supported

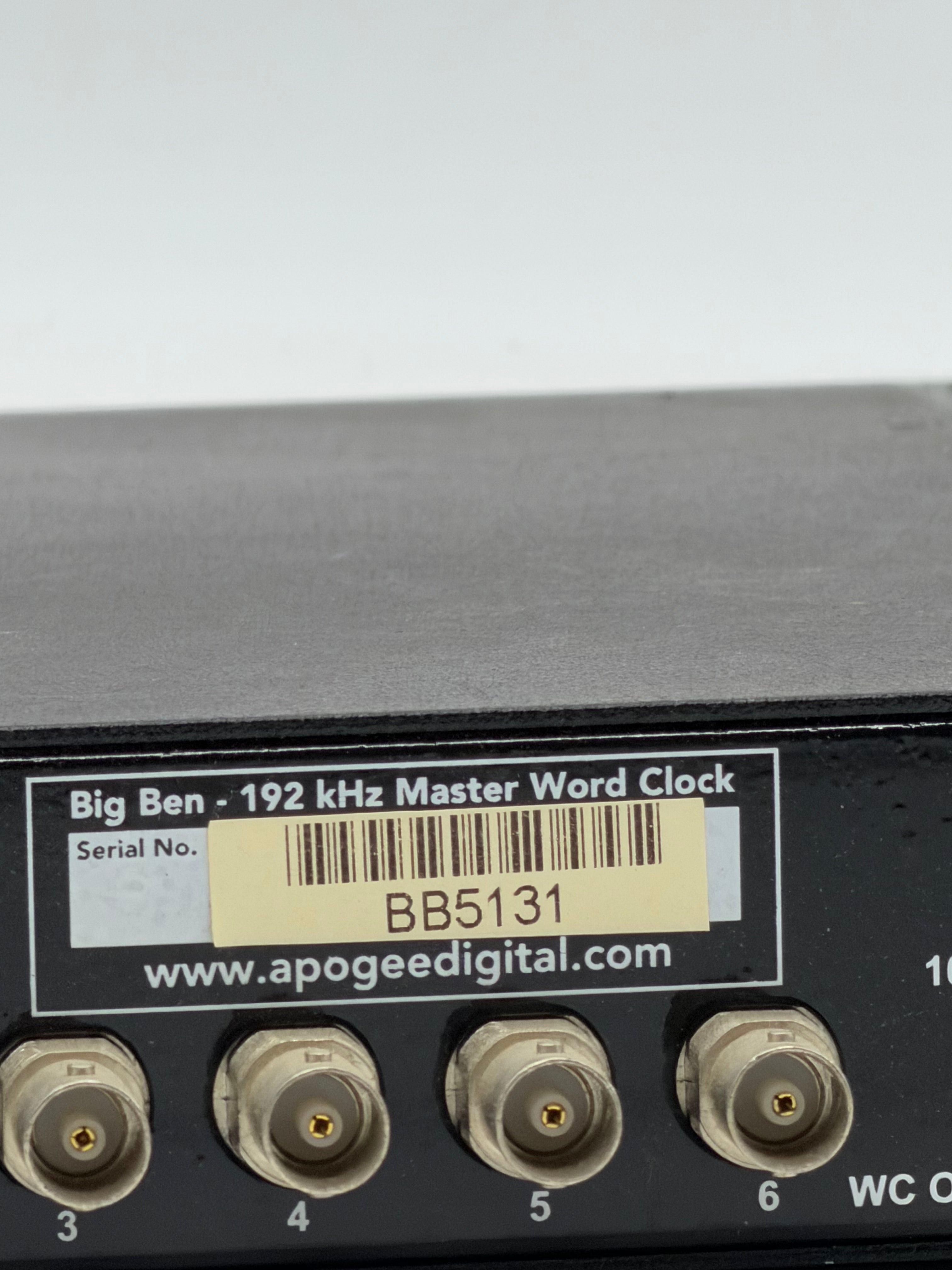

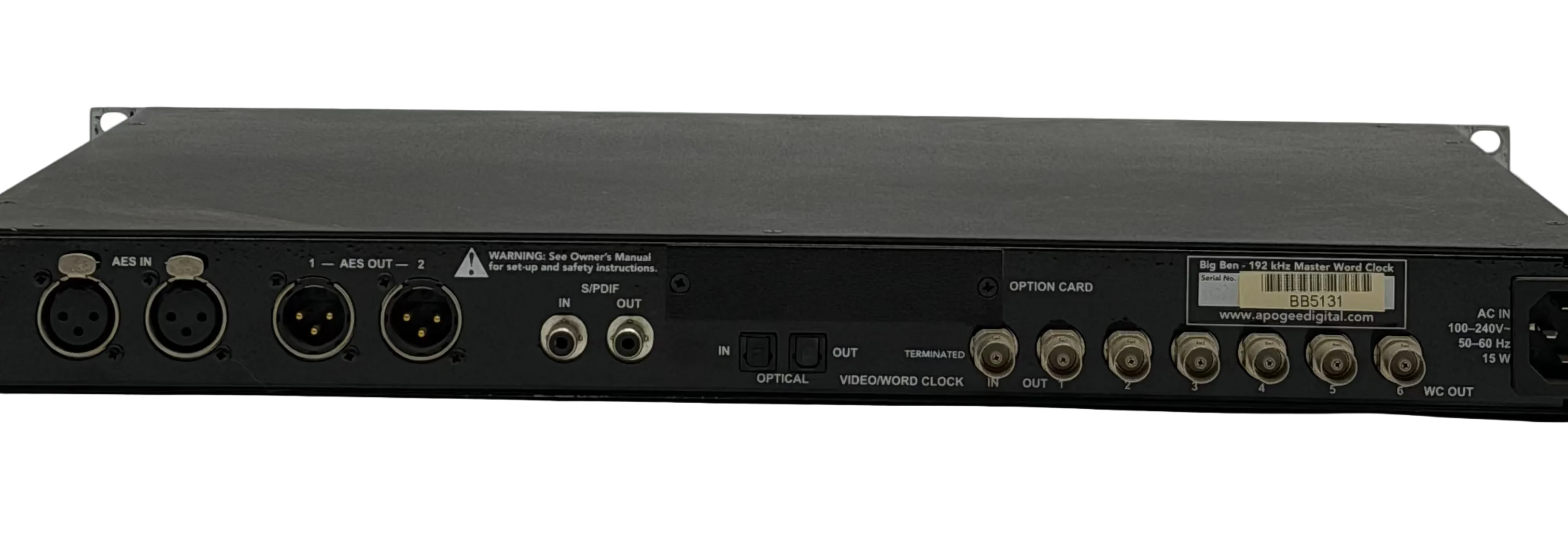

Word Clock Inputs	1 x BNC (supports Word Clock or Composite Video / HD Sync)
Word Clock Outputs	6 x BNC
AES/EBU I/O	1 x XLR Input, 2 x XLR Output (Single/Double/Quad Wide)
S/PDIF Coaxial I/O	1 x RCA Input, 1 x RCA Output
Optical I/O	1 x Toslink Input, 1 x Toslink Output (S/PDIF, ADAT, S/MUX)
Expansion Slot	1 x Option Card Slot (for X-Video cards)
Form Factor	1U Rackmount (19-inch standard)
