Antelope Audio Isochrone OCXHD

SKU: Antelope Audio Isochrone OCXHD
$ 1,495.00

Antelope Audio Isochrone OCXHD

768 kHz HD Master Clock

For over a decade, Antelope’s legendary OCX Master Clock has been a dominant force in the audio world.

This legacy now continues with the newest master clock by Antelope Audio – Isochrone OCX HD.

OCX HD and the vast choice of clocking options it offers studio professionals make it the most versatile audio clock on the market


OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope’s best-in-class 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator.

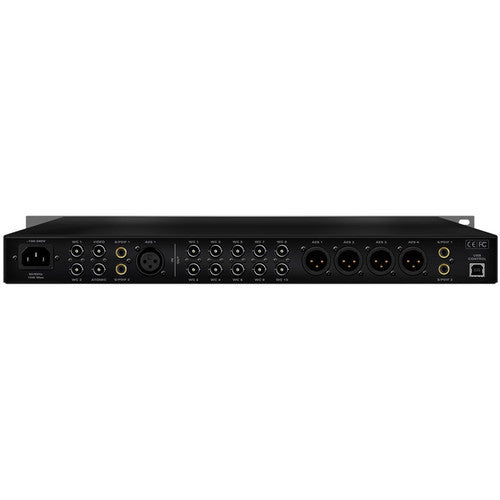

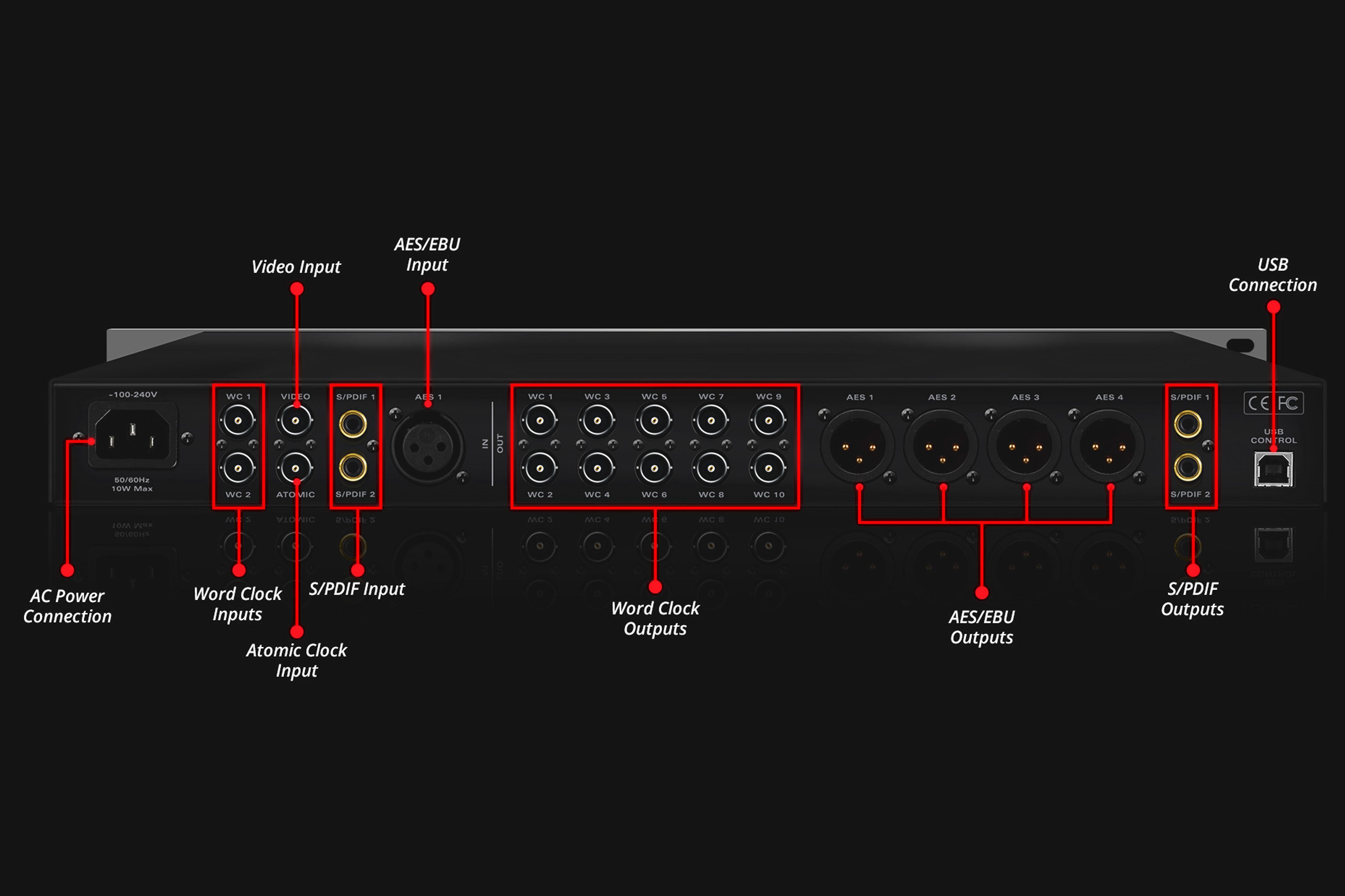

OCX HD Master Clock offers a great variety of clocking options – 10 configurable in pairs Word Clock Outputs on BNC, four AES/EBU Outputs and two more on S/PDIF. This vast assortment of connectivity makes the OCX HD the most versatile audio master clock on the market, while proven, proprietary clocking technology delivers the most musical and reliable audio sync generation on the market.

Video Clocking

All that you love about Antelope’s cult Trinity Master Clock now in just 1U

Additionally, OCX HD offers two Word Clock Inputs and a Video Sync Input, which can resolve to a huge variety of SD and HD formats, as well as clock distribution with gear-boxing, and pull-up and pull-down rates, as featured in the triple clock powerhouse, Trinity Master Clock. A 10 MHz Input allows for syncing with Antelope’s newest Atomic Clock – 10MX.

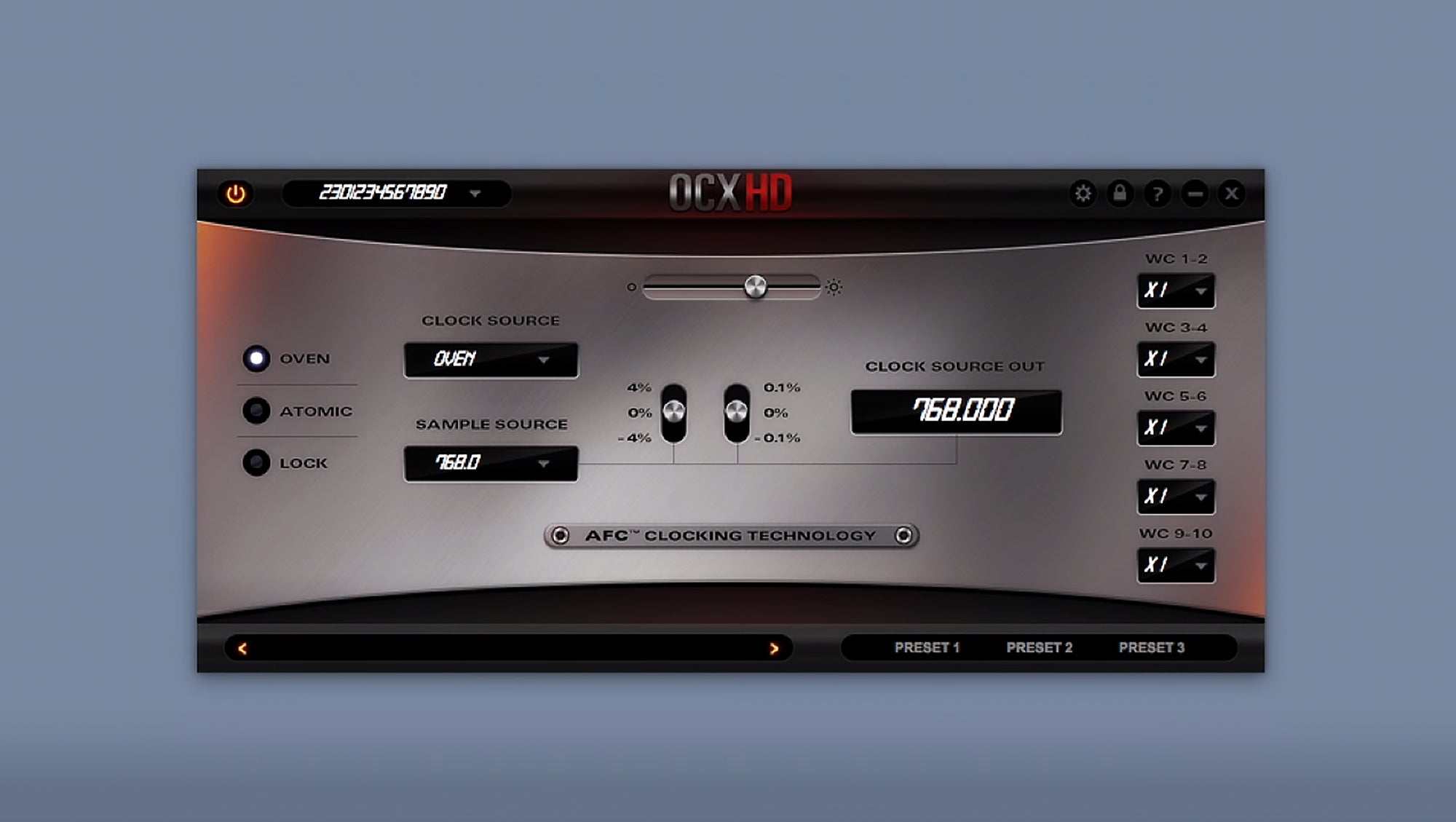

Access all OCX HD features via Antelope Audio’s flexible software control panel

Antelope’s latest master clock benefits from flexible firmware update functionality, as featured in all new-generation Antelope products, allowing for fast and easy firmware updates on the user-friendly software control panel, available for both OS X and Windows.

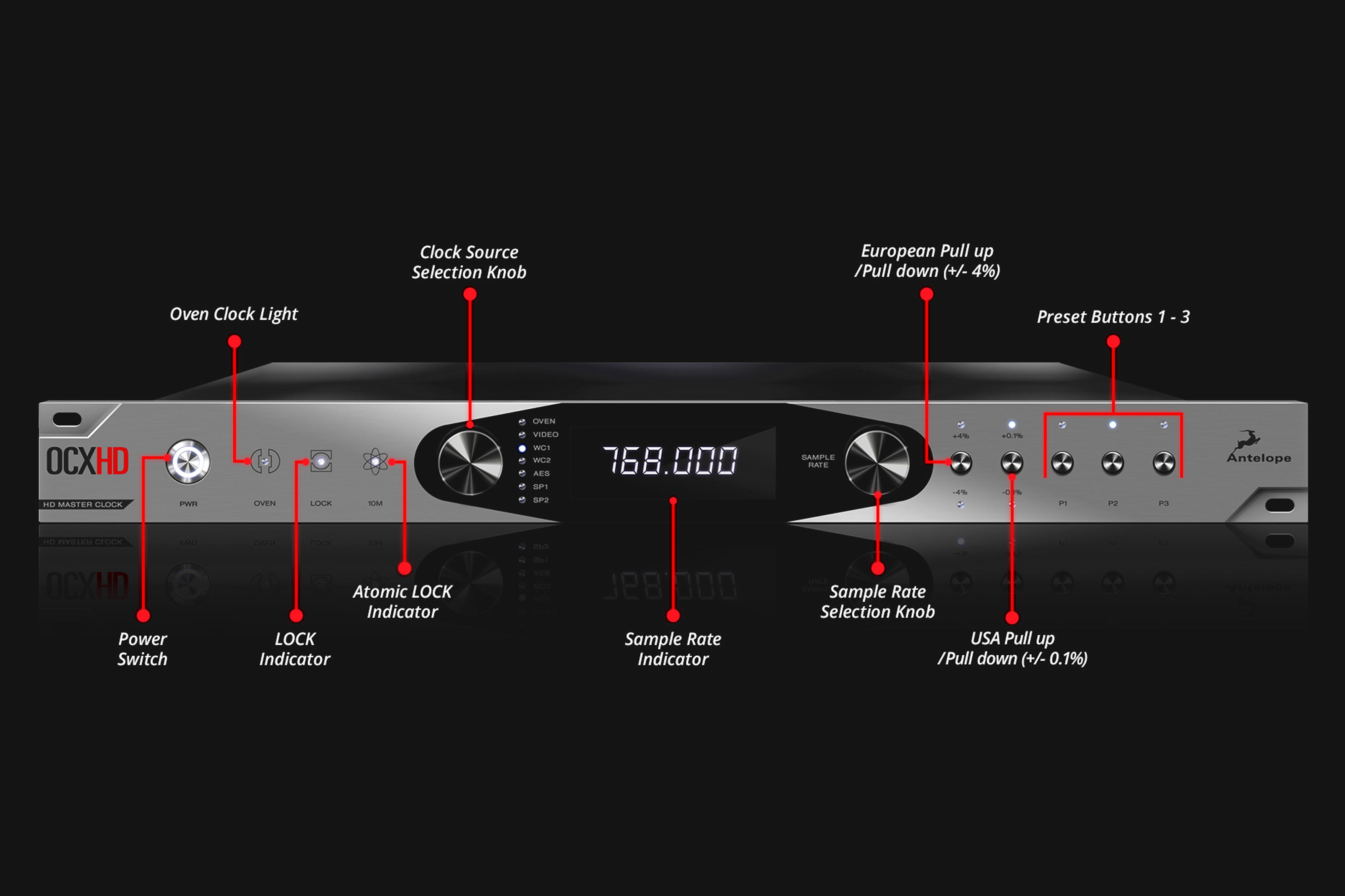

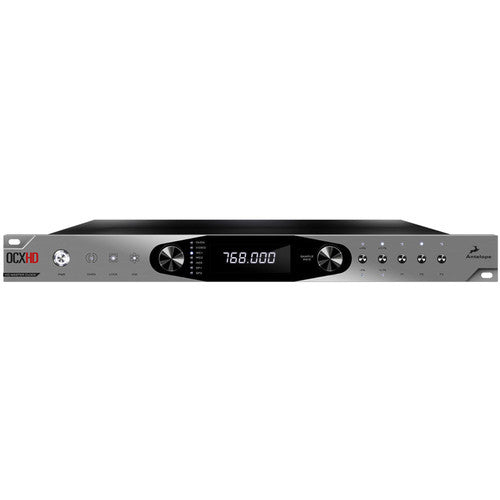

The desktop app provides convenient remote control to simplify project workflow. The device is also easily configurable from an elegant front panel, which will add a futuristic aesthetic to any gear rack.





    Specifications

    • Sample Rates Generated: 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768kHz
    • Master Clock Outputs
      • 10x Word Clock Outputs up to 768kHz
      • 4x AES/EBU Outputs up to 192kHz
      • 2x S/PDIF Outputs up to 192kHz
    • Inputs
      • 2x Word Clock Inputs up to 768kHz
      • 1x Video Input accepting wide range of SD and HD
      • video signals
      • 1x Atomic Input
      • 2x S/PDIF Inputs up to 192kHz
      • 1x AES/EBU Input up to 192kHz
      • 1x USB Input for control
    • Atomic Clock Input
      • 1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC
      • 44.1 – 384kHz
    • Humidity: 30 – 80% RH non-condensing
    • Clocking System: 4th Generation Acoustically Focused Clocking, 64-bit DDS,Oven Controlled Crystal Oscillator.
    • Clock Calibration: < +/-0.001 ppm
    • Clock Stability: <+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F
    • Clock Aging: < 1 ppm per year
    • Atomic Clock Input: 1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC
    • Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384
    • Operating Temperature: 0 – 50°C, 32-122°F
    • Power Supply: AC Universal Input ~95-245V, 20 Watts Max
    • Dimensions: 19 (W) x 9.05 (D) x 1.75 (H) inch
    • Weight: 5.84 lb (2.65 kg)

    System Requirements

    • Mac
      • OS X: 10.9/10.10/10.11 (El Capitan 10.11.5 Recommended)
      • Disk Space: Minimum 512 MB available disk space
      • USB: 1x USB 2.0/3.0 Port
      • Required USB bandwidth (for firmware update): 80%-90%
      • Memory (RAM): 4GB Minimum (8GB or more recommended)
      • CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)
    • Windows
      • OS: Windows 7/8/8.1/10
      • Disk Space: Minimum 512 MB available disk space
      • USB: 1x USB 2.0 Port
      • Required USB bandwidth (for firmware update): 80%-90%
      • CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
      • Memory (RAM): 4GB Minimum (8GB or more Recommended)
