SKU: AN-16/o v.4 16-Channel Mic and Line-Level Output Module
$ 1,470.00 -5%
$ 1,395.00

AN-16/o v.4

The AN-16/o v.4 Output Module connects to any Pro16 input module, console card, or A-Net distributor and provides 16 balanced TRS line-level analog outputs. Five output levels, from mic to +24dBu, are available to easily accommodate the level requirements of the gear its output signals are being connected to.

Use the AN-16/o v.4 anywhere analog outputs are required: on stage or at FOH in a digital snake, in the studio, for a recording split, or in even the most complex audio networks. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module.

Compatibility Note: AN-16/o v.4 Output Modules with serial numbers 51162 and lower are compatible with only Pro16 A-Net and not Pro16e A-Net. The Pro16e version of A-Net is used by the AN-16/i v.2 as well as the D800 and D400 series of A-Net Distributors.

Product Details

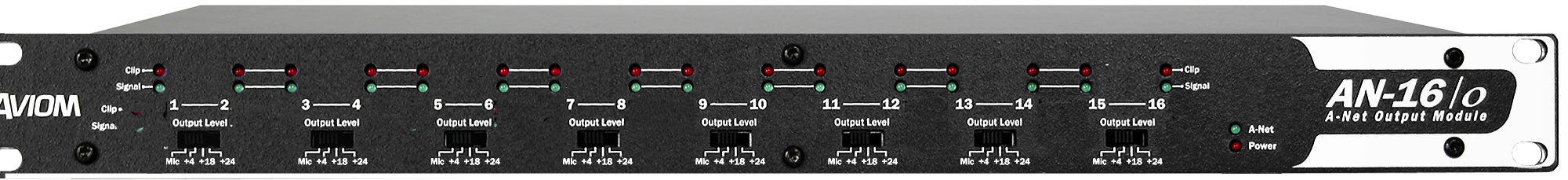

The AN-16/o v.4 Output Module is a 1U rack-mount 16-channel digital-to-analog converter for Pro16® digital snake and audio distribution systems. Digital audio transmitted to the AN-16/o v.4 via Aviom's A-Net® Pro16 digital audio transmission protocol is converted to analog using 24-bit, 48kHz converters.

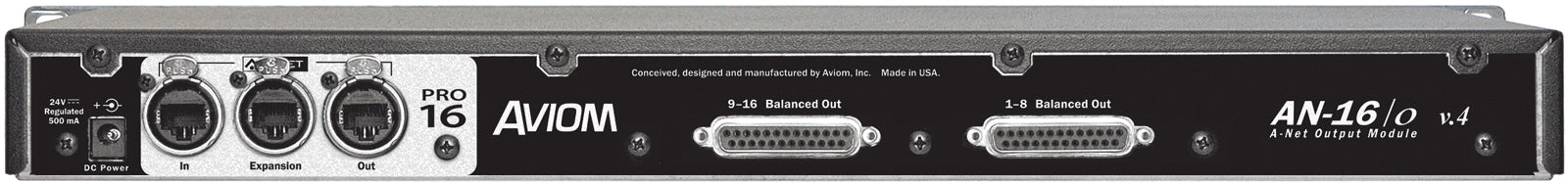

Sixteen balanced outputs are provided on the rear panel via DB25 multipin connectors. The analog outputs can be set (per channel pair) to +24dBu, +18dBu, +4dBu, or mic level.

Connecting to Wireless In-Ear Monitors

In personal mixing systems using the A360 Personal Mixer with the D800 or D800-Dante A-Net Distributors, the AN-16/o v.4 simplifies connections to wireless IEM systems.

Each A360 Personal Mixer sends its stereo mix output back into the network which appears as a pair of channels on the AN-16/o v.4. Each AN-16/o v.4 supports up to eight A360s. Simply patch the analog outputs on the AN-16/o v.4 into the IEM transmitter's inputs. No analog cables are required at the A360 on stage. Learn more about Network Mix Back.

Digital Snakes and Audio Networks

Use the AN-16/o v.4 anywhere analog outputs are required: on stage or FOH in a digital snake, in the studio, for a recording split, or in even the most complex audio networks. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module.

The AN-16/o v.4 can be connected to a Pro64 digital snake or audio network by adding the ASI A-Net Systems Interface.

AN-16/i v.2 Technical Specifications

Audio Inputs 16, balanced line-level, 1/4-inch TRS connector
Inputs Tip: Audio +; Ring: Audio -; Sleeve: Ground
TRS Thru Impedance matched output
Analog to Digital Conversion 48kHz sample rate, 24 bit
Frequency Response 4Hz-22kHz
A- Net In One Category 5 (RJ45 connector)
Four-position slot range selector switch for use with Pro16e A-Net
A-Net Out One Category 5 (RJ45 connector)
Gain Settings Four-position switch, -10dBv, 0dBu, +4dBu, and +22dBu
Channel LED Indicators Signal Present and Clip, per channel
Line Inputs Impedance: 48k ohms
Metering LEDs; green: Signal Present, red: Clip; per channel
Stereo Operation Stereo Link, per channel pair;
Two-position switch (Normal, Link)
Maximum Input Level +22dBu
Input Impedance 17.8k ohm
Freq. Response 4Hz-22kHz +0.2dB/-3dB
THD +N < 0.003%
Crosstalk -90dB
Bit Error Rate (BER) 10(-12)
Signal to Noise (unweighted) 90dB typical, A/D to D/A
Measured from AN-16/i to AN-16/o Output Module
Digital Outputs A-Net: 1; RJ45 connector
Pro16e A-Net Use unshielded Cat-5e UTP (or better) cable
Latency <0.880 msec (measured from analog input to analog output)
Power Supply
      Input Voltage
      Output Voltage
      Plug Size
External, DC, universal switching type
100-240 volts, 50/60Hz, 30VA
18-24 VDC, 0.5 amp
2 mm
Power 18-24 VDC, 500mA
Dimensions 19" (482.6 mm) wide x 5.75" (146 mm) deep;
1U high
Weight 6.8 lb (3.08 kg)
