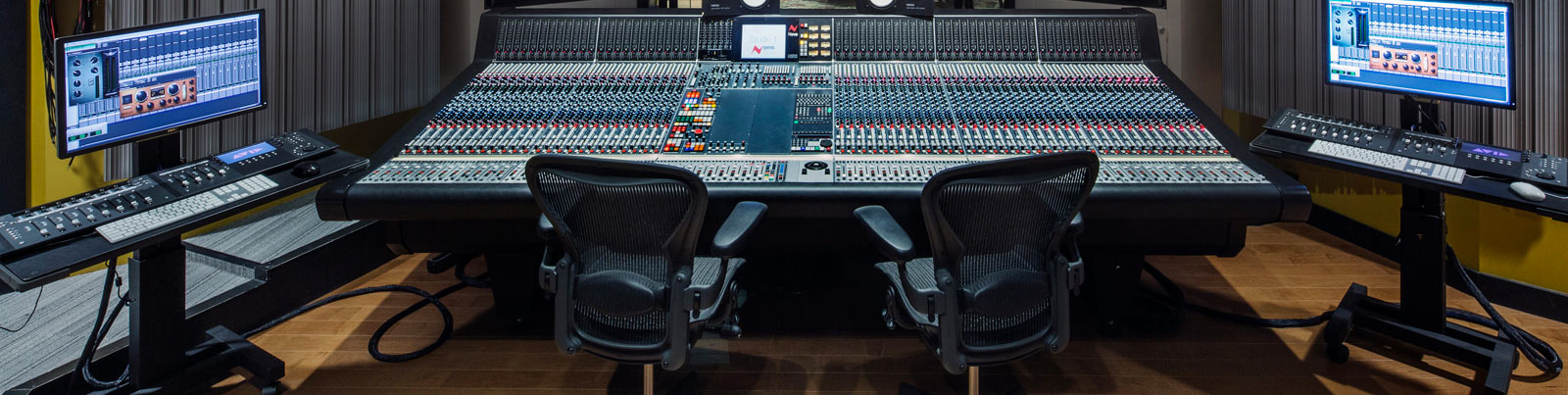

AMS Neve 88RS

PAD has one unused AMS Neve 88RS available for immediate delivery. This is a once-in-a-lifetime opportunity to save 20% on a world-class console.

The AMS Neve 88RS is a 48-channel analog console built for surround mixing, featuring Encore Plus automation, Neve fidelity, and audio performance beyond 24-bit/192kHz resolution.

Inline monitor console with split function

Learn More

The clearest pure signal path with No VCAs

Learn More

Legendary Neve soft knee compression

Learn More

AMS Neve 88RS Unique Features

Inline monitoring architecture with console split feature enables four simultaneous mixes

Designed for surround from inception, 5.1 monitoring standard

Audio performance beyond 24-bit/192kHz digital

The clearest pure signal path with no VCAs

Encore Plus automation

AFL surround solo monitor

Latest VCA technology for low noise and excellent low-level distortion

Fader starts on all channel faders, all VCA group faders, and all output faders

Enhanced Neve spectral format equalization

Legendary Neve soft knee compression

Remote mic amp option

Enhanced “S” channel strip

AMS Neve 88RS key features:

Motorized large and small faders
Over-press PFL on each channel fader
Four main output faders, L/R, C, S, and LS/RS
Solo system defaults to safe mode
Acoustically optimized frame
Available with or without patchbay
24-step precision volume control
Two faders per channel strip
Optional SP2 scoring panel, stem mixer, and remote preamps

Called the “Rolls Royce of the industry” by the late Sir George Martin, Pro Audio Design has come into possession of a new and unused 48-channel AMS Neve 88RS.

The console available through Pro Audio Design was commissioned for a studio build that met with unforeseen circumstances and couldn’t go forward with construction. Normally there is an 18-month lead time from order to completion on an 88RS, which means that if you ordered one today, you wouldn’t take delivery until 2020.

AMS Neve 88RS — Beneath the Surface



Inline monitor console with split function

88RS is Neve’s completely new electronic and mechanical design, while based on classic Neve attention to audio quality, mechanical detail, and ergonomics. The Neve 88RS starts at 24 channels (48 mic inputs) and is expandable by 12-channel buckets. The 88RS comes with a range of options including the SP2 Scoring Panel, the powerful Stem Mixer, and Classic Neve remote mic pre-amps.

A range of essential features for broadcasters is also available, including a redundant PSU, VCA fader system, and rugged streamline frame designed purposely for OB trucks. The 88RS is capable of broadcasting and recording simultaneously.

Signal flow through the console can be tailored for recording, mixdown, and overdub tasks using central master controls in conjunction with local channel switches.

Two distinct signal paths are processed by each input module. The channel path handles input sources during recording and tape playback during mixdown.

The monitor path is used primarily for monitoring multi-track sends and returns when recording and for effects sends or returns during mixdown. The monitoring path can also provide additional tape inputs for large mixdown operations.

Built for surround from the ground up

After its introduction in 1998, the 88R found its place in film score recording and mixing. In 2003, Sony Pictures commissioned a custom surround stem management/ monitor panel from Neve based on input from Oscar-winning mixer Shawn Murphy, 4-time Oscar-nominated mixer Dennis S. Sands, C.A.S-winner Simon Rhodes, Sony's Pat Weber and Mark Koffman, and AIR Studios’ Geoff Foster.

Incorporating such input from professional users, the 88RS was reimagined for surround while retaining its stereo music production facilities. What that means is that surround sound is built in; the I/O module pan pots have both LCR and LR (stereo) pan laws. Also, there are dedicated surround mix busses, monitoring, and metering features. Mix busses, metering, and monitoring are configured for stereo, LCRS, 5.1, or 7.1* in a single movement via switches on the central re-assign panel. *Standard 88RS consoles are capable of stereo, LCRS and 5.1 operation. 7.1 format mixing requires the optional “SP2” scoring panel.

Let's Talk About Your Next Console

If you’re ready to upgrade your Studio A or B to the unparalleled sonic purity and fidelity of the Neve 88RS — the console of choice for Skywalker Sound, AIR Studios Lyndhurst, Abbey Road, Fox Newman Scoring Stage, Warner Bros’ Eastwood Scoring Stage, Conway Studios, Capitol Records, The Village, Sony Pictures, and Ocean Way, to name a few — Pro Audio Design can deliver, wire, and provide ongoing support for your new Neve 88RS as we have done for world-class studios and educational facilities. If you wish to be in the company of such studios or want the ultimate competitive edge in the marketplace, you won’t have to wait until 2020 to realize a fully integrated Neve 88RS.



The clearest pure signal path with No VCAs

The desk’s 100kHz analog bandwidth* surpasses the resolution of 24-bit/192khz digital quality and has been engineered to deliver recordings of the highest conceivable quality onto any format at any sample rate, capturing all the energy and atmosphere of the original performance as perfectly as possible. There are no VCAs or MDAC's (digital audio controllers) in any audio path, including the monitor section. As the centerpiece of recordings ranging from Daft Punk’s Grammy-winning homage to the ’70s to the Kronos Quartet to Christophe Beck’s score for the film Frozen, the Neve 88RS has a proven ability to handle any type of music, whether it’s raucous rock, acapella chorale, or full tutti symphonic score with a side order of guitar and synthesizers à la Hans Zimmer.

*PAD Tech Note: Rupert Neve was the first pro audio designer to realize that preamps band-limited to 20kHz (the supposed upper limit of human hearing) were not telling the whole story. Mr. Neve reasoned that since harmonics above the range of human hearing exist in nature, and nature doesn’t engage in unnecessary excess, they must be taken into account. If nothing else, the popularity of the 1073 preamp to this day (released in 1970) proves him correct. However, it was Abbey Road’s Geoff Emerick who heard “something wrong” with a channel on a newly commissioned Neve desk at Abbey Road. Eventually, after much troubleshooting, Mr. Neve discovered a capacitor wired improperly, which impacted the signal at 60kHz! That experience validated his initial hypothesis. To this day, Mr. Neve’s favorite proof of the impact of ultra-high frequencies on the audible spectrum is to output a sine wave on a signal generator at 12kHz (which anyone should be able to hear) and switch it to a square wave, which everyone can easily identify. When you realize that a square wave is simply the addition of a sine wave an octave higher than the fundamental (24kHz added to 12kHz), it becomes readily apparent that ultra-high frequencies do affect the audible spectrum. Further audio research has shown that the linearity of frequencies well beyond human hearing do have an audible impact. A signal 3dB down at 25kHz can show a measured in-band phase shift of roughly -50 degrees (10kHz!).

Latest VCA technology for low noise and excellent low-level distortion

In normal monitoring mode, there are no VCA's in the signal path; the volume control is a 24-step switched passive control. VCA'S only get switched into the monitoring path for dim and AFL/PFL monitoring.

Enhanced “S” channel strip

While the “S” primarily relates to surround mixing, there are also improvements to EQ and dynamics sections. Each channel strip contains all the facilities necessary for multi-track recording, overdubbing and mixdown. While its functional design is traditional inline architecture, the 88RS has the powerful feature of split operation, which means that the console can be operationally divided into two halves (to the left and right of the master control panel) with independent status control and split mix busses. The various I/O module sections can be switched between the two paths, allowing the operator to configure each path with the optimum processing.

AFL surround solo monitor

The 88RS has a sophisticated solo system with selectable momentary, interlocking, and latching action push-buttons performing either solo in place, PFL (pre-fader listen) or surround AFL (after-fader listen). Another very useful solo feature is “Isolate,” which is independently available for both the large and small faders. Isolate defeats the channel and monitor solo mutes, which enables the channel to be used as a reverb/effects return.

Enhanced Neve Spectral Format Equalization

The Spectral Format EQ has four overlapping frequency bands with more frequency ranges and a relatively sharp curve at either end (LF 33-370 Hz, LMF 190 Hz-2 kHz, HMF 0.8-8.7 kHz, HF 1.5-17 kHz). It has up to +/-20dB boost/cut, more Q range (bandwidth), and non-overlapping low-frequency sections. The low-frequency and high-frequency bands are switchable peak or shelf filters, while the low-mid and high-mid bands have a flexible Q control. The equalizer section can be switched before or after the dynamics section.



Legendary Neve soft knee compression

Full limiter/compressor and gate/expander facilities are available on every channel, each of which can be individually switched in or out of circuit. The channel compressor is more musical, with classic Neve soft knee for transparent performance or hard knee choices for percussive sounds. It also has more threshold settings and slower attack and faster release times available. Similarly, the noise gate has a wider range and better control of threshold due to the inclusion of a hysteresis control. Hysteresis sets the difference in threshold for signals that are rising or falling in level, enabling smoother operation to prevent gate chatter. Pulling out the release control inverts the key (control) signal to the gate, turning it into a “ducker."

Fader starts on all channel faders, all VCA group faders, and all output faders

A “fader start” is a very useful feature in Neve’s Encore Plus automation. Fader Start enables you to select a relay from the optional Relay Control Unit or relays associated with controls in the signal path, which can be toggled or closed by moving the fader up. For example, set to Mic for Channel 1, the fader relay will only fire (when the fader is over-pressed) if Channel 1 is switched to Mic and there is a source connected to the Mic input.

Encore Plus Automation

The 88RS is equipped with the groundbreaking Encore Plus automation system. Encore Plus combines the best of Flying Faders for music with the Logic automation system for post-production, creating the ultimate music and music-for-picture automation system. A cross-platform system, Encore features fully integrated recall for storing and recalling control positions. In addition to dynamic automation and recall, Encore assists in console configuration tasks such as overdubbing. The console can also run manually without Encore. In the event of a computer failure, the 88RS continues to function seamlessly.

Options

The 88RS comes with a range of options including the SP2 Scoring Panel, which enables 7.1 surround, the powerful Stem Mixer, and Classic Neve remote mic pre-amps. It’s interesting to note that with access to a wall full of the best preamps and custom modifications, Alan Sides of Ocean Way prefers the sound of the remote 1081R and Air preamps that came with his 88R.

**PAD ALERT! Pro Audio Design has three racks of 1081 Remote Mic Pres, each configured with 8 channels of 1081R and 2 channels of 1081AIR (Montserrat). We can configure a package with one, two, or all three racks (at additional cost.)

What the pros are saying about the Neve 88RS

When Daft Punk set out to make Random Access Memory, their spare-no-expense homage to the golden age of recording—where nothing but the best would do—the Grammy-winning album was tracked and mixed by 11-time Grammy winner, Mick Guzauski on Conway Studio’s Neve 88R. Other notable Neve 88R owners and users include 20-time Grammy winner Al Schmitt, Alan Sides (Ocean Way Studios), 7-time Grammy winner Frank Filipetti, and Skywalker Sound’s 4-time Grammy winner, Leslie Ann Jones. Here are some quotes:

“The new Neve 88R at the Village gave me the sound and integrity associated with vintage 1066 and 1081s while providing the convenience, ergonomics, and reliability of a modern desk.” — Roy Thomas Baker (Queen, The Cars, Journey)

“The 88RS is truly the next level of aural quality and console flexibility. The sonic quality of the console is unbelievable.” — Leslie Ann Jones (Skywalker Sound)

“The sound of the 88RS is unbelievable. It is the best sounding desk we have ever heard. It’s a beautifully engineered, exquisitely manufactured piece of gear.” — Jeff Greenberg (The Village)

“I love this console… From the equalization to the dynamics this console is a class A product.” — Mark Miller (Allentown Studios)

“The 88RS is an awesome console. It’s the ultimate in analog consoles.” —Tom Misner (Studios 301)

Neve consoles are the Rolls Royce of the industry. You’ve got to do the right thing by your business. You’ve got to buy the right console at the right price. When it comes down to it, the Neve has the edge on any other. — Sir George Martin

“The 88RS stood out as a no-compromise console that would provide exceptional sound quality and reliability whether we are recording a large classical ensemble, chamber group, jazz or rock.” — Scott Metcalfe (Director, Recording Arts and Sciences, Peabody Conservatory)

Professionals throughout the world have chosen the full, clean sound of the 88RS console. Its high-bandwidth pure audio path, superior dynamics, greater dynamic range, and superior control make the 88RS the first choice for recording studios and post-production facilities who demand the purest high fidelity recordings. For more information, contact your PAD Studio Integrator today.
