Antelope Audio Zen Tour Synergy core

Sale price$ 1,695.00

Call us at 1-877-223-8858 or Ask a Question below

Antelope Audio Zen Tour Synergy core


Antelope Audio Zen Tour Synergy core

    Limited Time Offer!!

    Buy Zen Tour Synergy Core and get the following FREE:

    1. Native FX – our subscription for 59 plugins for 6 months.
    2. Bitwig DAW essentials

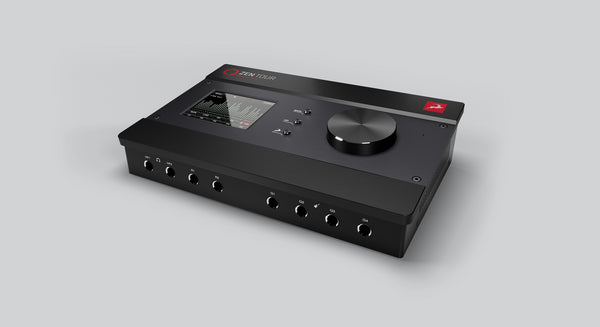

    A desktop audio interface in a league all its own, the Antelope Audio Zen Tour Synergy Core packs Antelope’s cutting-edge Synergy Core FX processing platform into the compact, road-ready form factor of the Zen Tour. Small yet mighty, the Zen Tour Synergy Core offers comprehensive analog and digital I/O, with both USB and Thunderbolt 3 connectivity. A major step up from the hit original Zen Tour interface, the Synergy Core adds upgraded pro-class A/D and D/A conversion, Antelope's signature Acoustically Focused Clocking technology, and the easy-to-use touchscreen control from Antelope’s flagship Goliath interfaces. Simply put, the Zen Tour Synergy Core outperforms any competing product with its unbeatable value and vast studio potential -- a complete all-around solution for artists and producers, both on your desktop and on the go.

    Stacked with Effects Potential

    Want to record wet/dry and monitor in real-time through a mic preamp emulation, EQ, compressor(s), modulation, and reverb? With your plug-ins offloaded to the dedicated FX processing built into the Zen Tour Synergy Core, complex FX chains are no sweat. The Synergy Core platform takes the load off your host CPU, eliminating the distracting latency that plagues DAW native plug-ins – so you can reduce your buffer size and improve your recording system’s stability. Loaded with 4 ARM DSP cores and 2 FPGA processors, the Zen Tour Synergy Core can process up to 256 FX instances over 32 audio channels with ultra-low latency and zero CPU drain.

    Kickstart Your Production With 37 Core FX – Included Free

    Get creative in the studio and enhance your tracks with a vast variety of effects, including Antares Auto-Tune Synergy, Vari-Speed Tremolo, Space Flanger, Opto-2A, and tons more. Your Zen Tour Synergy Core comes with 37 premier FX from Antelope’s growing library, so you can get going immediately -- including 2 preamp models, 4 equalizers, 5 compressors, 23 guitar amps & cabs, 2 special processing FX, and AuraVerb reverb.

    Hear the Truth: Updated Converters + Antelope Clocking

    Antelope Audio re-engineered the Zen Tour’s input and output stages with upgraded op-amps and updated converter chips. Utilizing Antelope’s signature Acoustically Focused Clocking technology, the Zen Tour Synergy Core maintains pristine AD/DA conversion for artifact-free recording and critical listening, with a best-in-class dynamic range of 124 dB on the ADC, 127 dB on the line out DAC, and 130 dB dynamic range on the monitor output. You get the pro-class conversion found in the Orion Studio Synergy Core interface – in a much more portable package.

    Small Interface, Massive I/O

    Zen Tour Synergy Core's comprehensive connectivity rivals that of rackmount pro audio interfaces with 4 Instrument/Line inputs, 4 Mic/Line Ins, 8 Line Outs (DC-Coupled), 1 Stereo Monitor Out, 2 Headphone Outs and 2 Re-Amp Outs – a total of 8 inputs and 14 outputs – with ADAT & S/PDIF expandability for an additional 10 channels of digital I/O. The Zen Tour Synergy Core is ready to plug into your Mac or Windows PC, with Thunderbolt 3 (Type-C) as well as USB 2 (Type-B) for cross-platform compatibility -- and users of multiple computers/operating systems can switch connections on the fly.

    Route Any Audio, Anywhere

    The comprehensive Routing Matrix inside Antelope’s software Control Panel houses a full-fledged digital patch bay, so you can freely route audio between the interface's analog and digital inputs. Process DAW tracks through Synergy Core FX and re-amp guitar DIs with the Shred Guitar Amps & Cabs, or integrate external audio equipment. With the 'training wheels' removed, your workflow can be as intricate as you want it to be.

    Sturdy & Portable

    Hand-assembled in Europe, the Zen Tour Synergy Core can rock both your studio desktop and your band’s practice space – and live to tell about it!

    Like the Original Zen Tour Interface – Only Better

    Ever since it hit the pro audio world back in 2016, the original Antelope Zen Tour interface has been in a league of its own. Never before had artists and producers enjoyed this kind of connectivity, sound quality, and touchscreen control on a desktop unit. The Zen Tour Synergy Core more than lives up to its predecessor’s impressiveness – and unlocks Antelope’s future-proof Synergy Core FX processing platform, too.


    • Synergy Core FX processing: 4x ARM DSP + 2x FPGA handling up to 256 effects instances per session
    • 37 Synergy Core FX plug-ins included
    • Compatible with the Antelope Audio AFX2DAW bridge plug-in
    • USB (Type-B) & Thunderbolt 3 (Type-C) computer connectivity
    • Up to 130 dB dynamic range AD/DA conversion at up to 24-bit/192kHz resolution
    • Proprietary 4th-generation Acoustically Focused Clocking & Jitter Management clocking technology with 64-bit DDS
    • 4 Discrete transistor mic preamps with mic modeling support (for Antelope Audio Edge & Verge modeling microphones)
    • Dedicated mastering monitor out DAC for critical listening
    • Two pairs of headphone outputs
    • Two pairs of re-amp outputs
    • 8 DC-coupled line outs on DB25 for sending CV/Gate to your analog synthesizers
    • ADAT and S/PDIF digital connectivity. External converters can be clocked via ADAT
    • Multifunctional touchscreen display for monitoring and operation
    • Hand-assembled in Europe
    • Free technical support is available 20 hours/business day over phone, chat & ticketing system

    Zen Tour Synergy Core comes with 37 Synergy Core FX:

    • Gyraf Gyratec IX - Dual Tube Mic Preamp with HPF
    • VCA160 - VCA Compressor / Limiter
    • Stay-Levin - Vari-Mu Tube Compressor
    • FET-A76 - FET Compressor / Limiting Amplifier
    • VEQ-1A - 2-Band Tube EQ
    • VMEQ-5 - 3-Band Tube Mid-Range EQ
    • X903 - VCA Compressor / Limiter
    • PowerFFC - Feed-Forward Compressor
    • Clear Q - Parametric EQ
    • Power EX - Expander
    • VEQ-HLF - Tube 2-Band HPF / LPF
    • Auraverb - Reverb
    • BA-31 - Germanium Mic Preamp
    • Power Gate - Noise Gate
    • A-Tuner - Guitar Tuner
    • Plexi 59 (UK) - Tube Guitar Amp
    • Bass SuperTube VR - Tube Guitar Amp
    • Darkface 65 (US) - Tube Guitar Amp
    • Top30 (UK) Bright - Tube Guitar Amp
    • Tweed Deluxe (US) - Tube Guitar Amp
    • Overange 120 (UK) - Tube Guitar Amp
    • BurnSphere (DE) Lead - Tube Guitar Amp
    • Marcus II (US) Lead - Tube Guitar Amp
    • Modern (US) CH3 - Tube Guitar Amp
    • Rock 75 (UK) - Tube Guitar Amp
    • Rock 22.10 (UK) - Tube Guitar Amp
    • Darkface 65 2x12 - 2x12 Guitar Cabinet
    • Top30 2x12 - 2x12 Guitar Cabinet
    • Modern 4x12 - 4x12 Guitar Cabinet
    • Green 2x12 - 2x12 Guitar Cabinet
    • Vintage 4x12 - 4x12 Guitar Cabinet
    • Green 4x12 - 4x12 Guitar Cabinet
    • Caliper 50 1x10 - 1x10 Guitar Cabinet
    • Bluelux 1x12 - 1x12 Guitar Cabinet
    • Clst 1x12 - 1x12 Guitar Cabinet
    • England 4x12 - 4x12 Guitar Cabinet
    • Bass Tube 1x15 - 1x15 Guitar Cabinet

    Technical Specifications


    Analog Inputs

    4 x Hi-Z / Line Inputs

    4 x Mic / Line Inputs on Combo XLR jacks

    Analog Outputs

    1 x Stereo Monitor Out on TRS 1/4 Jacks (Pair), +20 dBu max

    8 x Line Outs on TRS, +20 dBu max (DC-Coupled)

    2 x Stereo Headphone Outputs

    2 x Re-amp Outputs

    Mic Preamp

    EIN: -128 dBu (A-weighted)

    Dynamic Range: -121 dB (A-weighted)

    THD: -106 dB

    Max input: +20 dBu

    Max Gain: 65 dB

    D/A Monitor Converter

    Dynamic Range: 130 dB

    THD + N: -115 dB

    D/A Converter (Line Out)

    Dynamic Range: 127 dB

    THD + N: - 106 dB

    DC Coupled

    A/D Converter

    Dynamic Range: 124 dB

    THD + N: -110 dB


    Digital Inputs

    1 x ADAT (up to 8CH)

    1 x S/PDIF (up to 2CH)

    Digital Outputs

    1 x ADAT (up to 8CH) also transmitting word clock

    1 x S/PDIF (up to 2CH) also transmitting word clock

    USB 2.0 I/O

    USB 2.0 Type B connector

    (Up to 24 channels)

    Thunderbolt™ 3

    Thunderbolt™ 3 Type C connector

    (Up to 32 channels)


    Clocking System

    4th Generation Acoustically Focused Clocking

    64-bit DDS

    Sample Rates (kHz)

    44.1, 48, 88.2, 96, 176.4, 192


    Operating Temperature

    0-50°C, 32-122°F

    Weight (Approx)

    1.6 kg/ 3.5 lbs

    Dimenions (Approx)

    Width: 255 mm / 10.0”

    Height: 62 mm / 2.4”

    Depth: 168 mm /6.6”

    Power Consumption

    25 Watts

    System Requirements


    PC: Computer with USB ports and Thunderbolt™ 3 (backwards compatible with Thunderbolt™ 2)

    OS: Windows 10 x64 with the latest updates

    RAM: 4GB minimum (8GB or more recommended)

    CPU: Intel Core i3™ or AMD FX and higher


    Model: Apple Mac 2012 or newer with USB ports and Thunderbolt™ 3 (backwards compatible with Thunderbolt™ 2)

    OS X: macOS 10.12 (Sierra) and higher - Recommended macOS 10.14 (Mojave)

    Memory: (RAM)4GB minimum (8GB or more recommended)

    Additional Info: Internet connection required for product activation.

    In-the-Box Content

    • Zen Tour Synergy Core Interface
    • Quick Start Guide
    • Inline External Power Supply Unit
    • USB Cable
