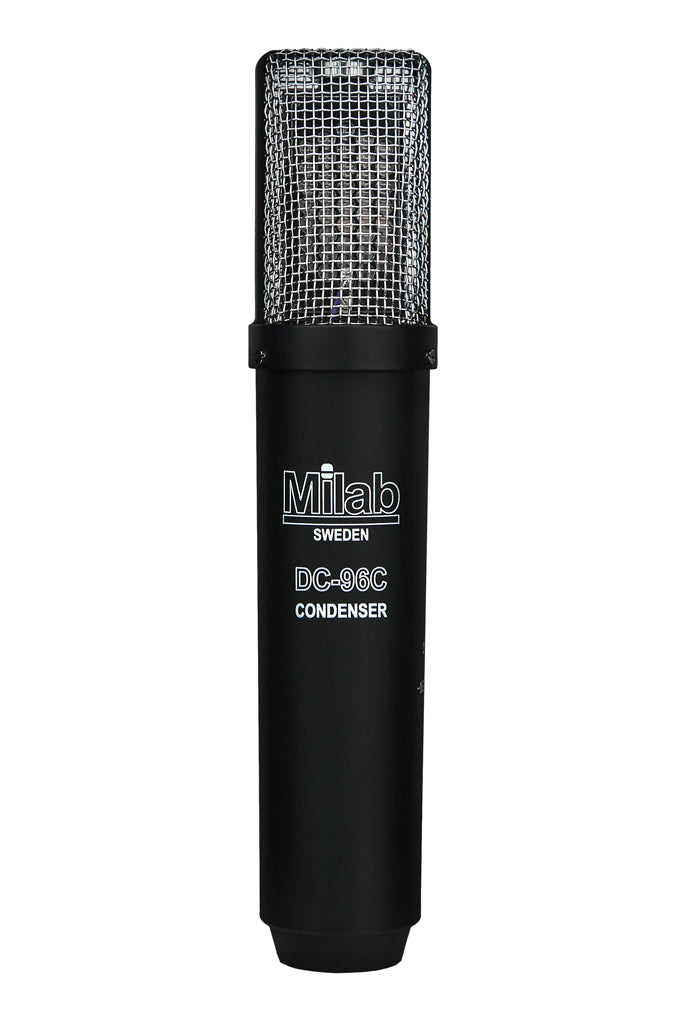

Milab DC-96C - Large Diaphragm Condenser Microphone

Milab DC-96C - Large Diaphragm Condenser Microphone

The newest version of the classic Milab DC-96. Received stellar reviews and was nominated as "microphone of the year" in Resolution Magazine upon its release.

The latest addition to the classic Milab DC family is the DC-96C, a side-addressed large membrane microphone designed mainly for studio work, but also excellent for many live applications.

The original DC-96 was released in the late 1960’s. In 1983, it was replaced by the updated DC-96B which would become one of the most iconic Milab models. The “C”-version has been equipped with Milab’s latest capsule and amplifier technology to make sure that the DC-series remains at the top of the game. In fact, Resolution Magazine said that the Milab DC-96C “is a great example of how a classic design can and should be reinvigorated.”

The DC-96C is suitable for a wide range of applications, including studio vocals, acoustic guitar and piano, hi-hats and overheads, guitar amps and more.

“These mics picked up the body and depth of the soul of the instrument beautifully. […] The low end that the Milabs capture is absolutely stunning as well. There were moments where I couldn’t believe how richly the mic captured the bass of the guitar.” – Recording Hacks

Package includes: 3127 stand holder, 3403 windscreen and an individual frequency graph.

Features

• Milab 2900 rectangular capsule
• Cardioid polar pattern
• Transformerless
• Rubber fitted capsule
• 12 dB attenuation pad
• Gold plated XLR connector

Specifications

• Product name

  Milab DC-96C

• Type

  Condenser

• Article number

  1138

• Frequency response

  20 to 20,000 Hz

• Polar pattern

  Cardioid

• Pre-attenuation pad

  -12 dB

• Max SPL (1 % THD at 1 kHz)

  132 dB

• Max SPL with 12 dB pad

  144 dB

• Sensitivity at 1 kHz

  21,5 mV/Pa (± 1 dB)

• A-weighted noise level (IEC 179-A)

  11 dB (typical); 12 dB (max)

• Power supply

  48 ± 4 V Phantom (DIN/IEC)

• Current consumption

  4.2 mA

• Output impedance

  <200 Ω

• Minimum load impedance

  1 kΩ

• Connection

  3-pin XLR

• Length

  145 mm

• Diameter

  27 mm

• Net weight

  220 g
