JOCAVI ATP REFLEX Diffuser Panel
JOCAVI ATP REFLEX Diffuser Panel
JOCAVI ATP REFLEX Diffuser Panel
The REFLEX represents another option on acoustic diffusers, thus allowing different aesthetic and performance possibilities. It is made of high-quality 100% recyclable ecologic EPS raw material. It is used on side or back walls to blend the direct and early reflected sound, thus increasing speech intelligibility and enhancing musical clarity.
This diffusion panel offers optimal shape and more omnidirectional scattering diffusion than traditional, non-optimised panels do. It is a very good cost-effective choice for a 2D sound diffuser.
Features
- Average diffusion: 0.50/m2 [>500Hz;<5KHz]
- NRC: 0.26/m2 [>100Hz;<5KHz]
- Fire resistance: Euroclass B-s3,d1 (similar to old M1)
- Finished with an ecological paint
- Very easy to install
- Other colours available upon consultation
Tech drawings and Dimensions
| Model | Height | Width | Depth | Weight |
| RFL060 | 60 cm (23.62") | 60 cm (23.62") | 10 cm (3.9") | 0.8 kg (1.8 lbs) |
| RFL120 | 120 cm (47.24") | 60 cm (23.62") | 10 cm (3.9") | 1.6 kg (3.5 lbs) |

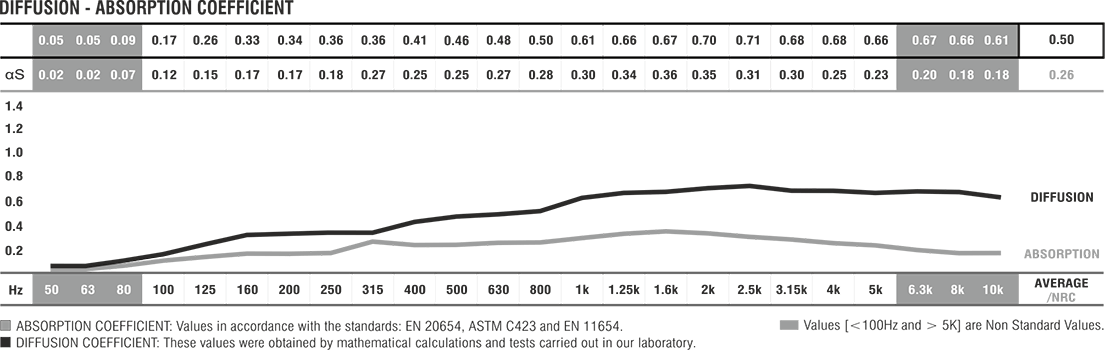

Absorption Coefficients
Colors and Finishings
EPS:
