For decades, TAD (Technical Audio Devices) has hard earned the considerable respect and trust of the world’s leading artists and studio engineers.
In 2019, we introduced to the consumer market the critically acclaimed TAD Reference One flagship speaker system, the culmination of our point-source sound concept achieved by combining TAD engineers’ wealth of experience and expertise in speaker design with leading-edge speaker technologies to create the ideal audio experience in a home environment. Now we have reached another milestone with the introduction of the TAD Compact Reference One, which has taken advantage of every element of advanced technologies incorporated into the design of our flagship model.

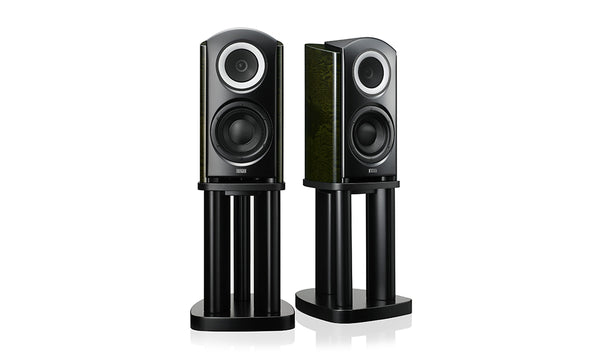

The TAD Compact Reference One delivers the rich point-source sound with the quality that makes the listeners forget they are listening from a speaker system. Its extraordinarily resonant sound will satisfy even the most discerning audiophile.


Model No



Three-way bass-reflex stand-mounting

Drive Units

LF: 20cm (8 in.)

Midrange/Tweeter: concentric
16 cm (6 1/2 in.) MF / 3.5 cm (1 3/8 in.) HF

Performance Data

Frequency response: 32 Hz to 100 kHz

Crossover frequencies: 250 Hz and 2 kHz

Unit polarity: LF (+), MF (+), HF (+)

Maximum input power: 200 W

Sensitivity: 86 dB (2.83 V @ 1 m)

Rated impedance: 4 Ω

Physical Data

Weight: 46 kg (101 lb)

Dimensions: 341 mm (13.4”) (W) × 628 mm (24.7”) (H) × 446 mm (17.6”) (D)


View the full TAD Collection Brochure
