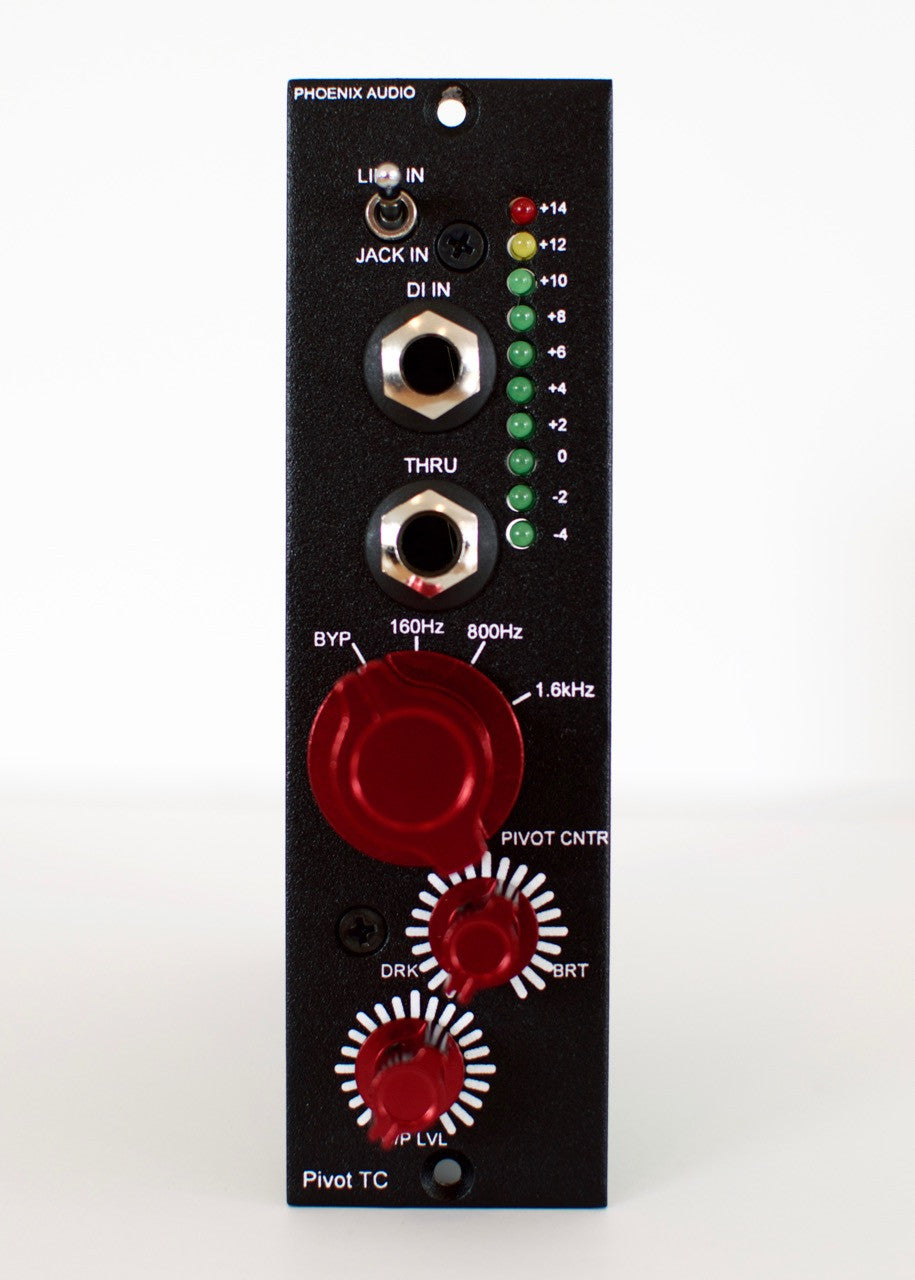

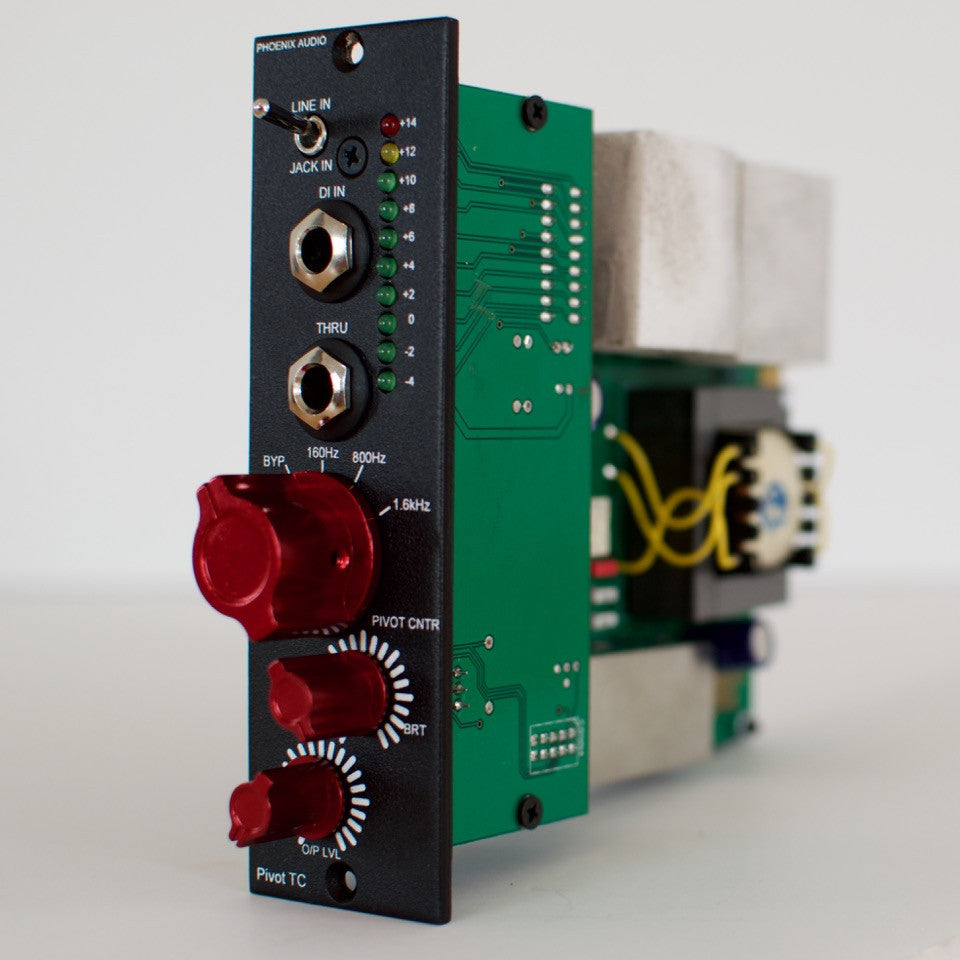

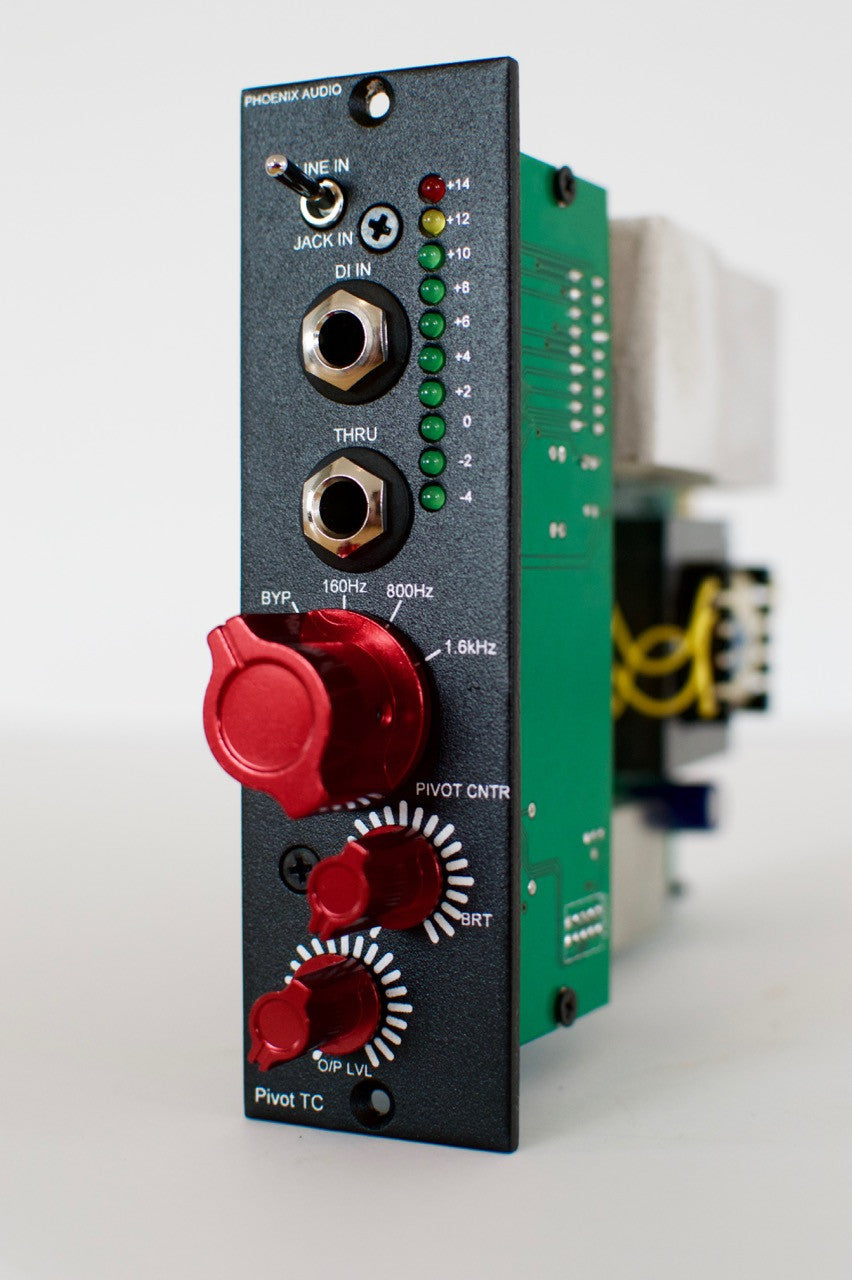

The Pivot Tone Channel 500 (formely known as the Tilt Tone channel) is a 500 series channel strip featuring a balanced line level signal processor incorporating our class A discrete buffer amp from our world renowned Nicerizer summing mixer, a DI with our 10meg ohm inputs found in our Nice DI and a 'see-saw' EQ circuit.
Pivot TC/500 uses a powerful tone control pivot position EQ , a unique 3 position 'see-saw' EQ with 3 carefully selected pivot positions to cover low frequencies at 160hz, mid frequencies at 800hz and high frequencies at 1.6khz. A dark/bright shaping control, allows you to 'see-saw' the EQ to darken your mix (add LF) or brighten the mix (add HF).
There is a also a 10 position LED metering that accurately represents the output level.

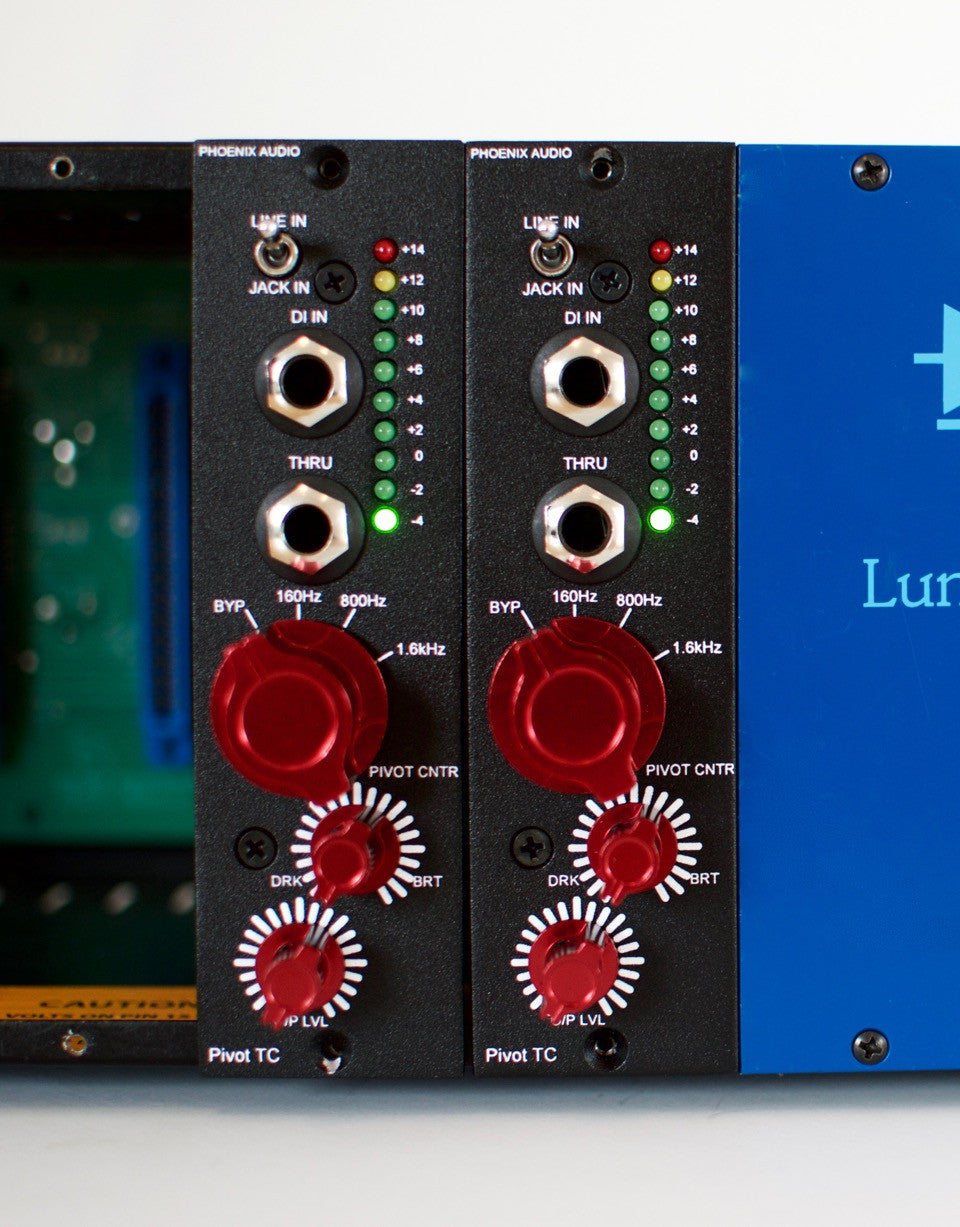

The unit can also be used in bypass mode, the ouput control can be driven bringing in the Class A discrete output circuitry and output transformer to add analogue colour and saturation to any source, and a pair of units would be excellent on a mix bus or mastering.
