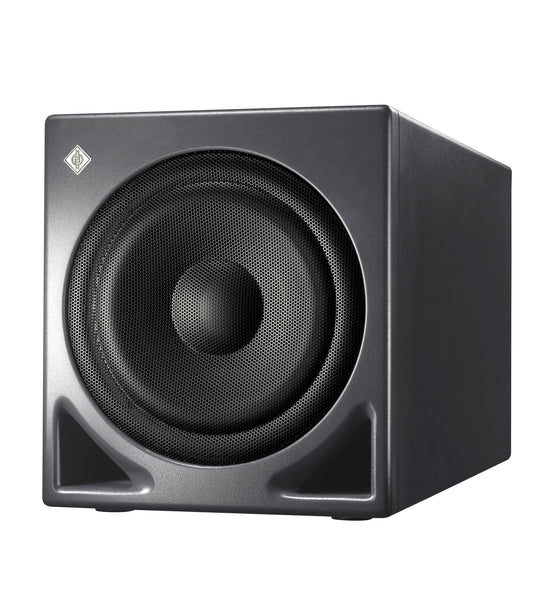

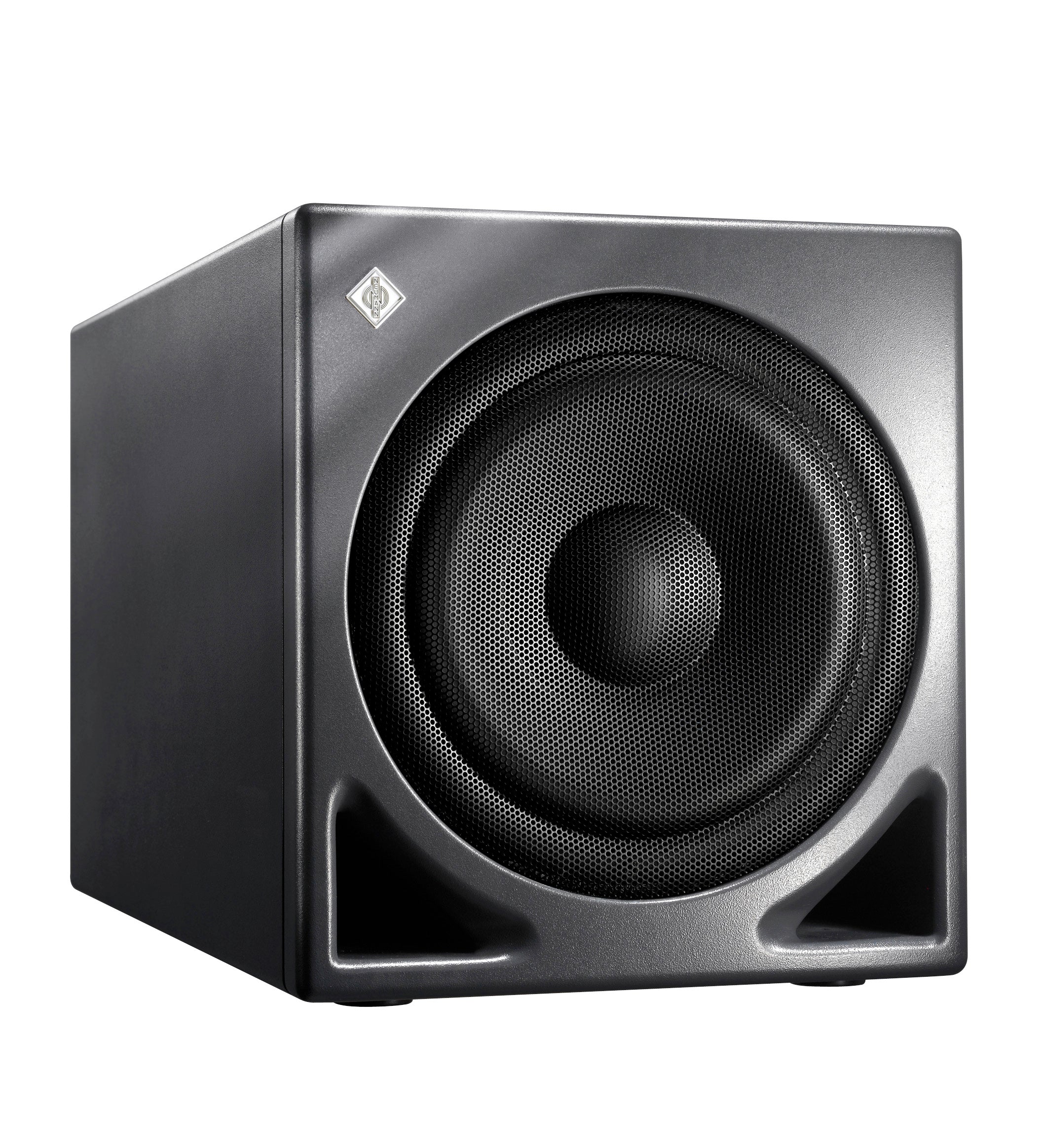

Neumann KH 810 - Active Studio Subwoofer

Sale price$ 2,895.00 Regular price$ 3,629.00
Save $ 734.00
SKU: KH 810 G

Call us at 1-877-223-8858 or Ask a Question below

Neumann KH 810 - Active Studio Subwoofer


Neumann KH 810 - Active Studio Subwoofer

As consumer technology advances at ever faster rates, professional technology increasingly finds itself trying to keep up. An example of this is the advent of the Blu-ray and other high definition formats that have increased the audio channel count to 7.1.


The KH 810 is an answer to these new demands by offering a new 7.1 High Definition Bass Manager™. This is compatible with all standard consumer formats from mono through to the latest
7.1 HD systems. Eight channels of analog ensures flexible interconnectivity for modern studios. Four-mode LFE-channel processing guarantees compatibility across all formats and industries. Forth-order crossovers and flexible acoustical controls allow for seamless system integration. Built-in volume control and a hardware remote control allows for centralized system control independent of the source, and the electronics can be remote located to reduce cabling


The latest amplifier technology and acoustical components have been used to ensure the most accurate sound reproduction possible. Robust drivers, a rock-solid cabinet, and carefully designed ports guarantee a tight, articulate, and distortion-free low frequency reproduction, even at high replay levels. Using the sum output, Plane Wave Bass Array™ (PWBA™) techniques acoustically improves lateral consistency in the listening area. The bass extends down to 18 Hz.


The KH 810 subwoofer is designed to complement our extensive range of monitors, and can be used on its own, or daisy-chained to make larger systems capable of higher SPL. The KH 810 can be used in music, broadcast, and post production studios for tracking, mixing, and mastering. The cabinet can be positioned next to a wall or flush mounted into a wall due to the front mounted port, and can be mixed freely in multichannel systems with other loudspeakers from our range - Product Selection Guide.





Flexible electronics

7.1 Channel High Definition Bass Management™ compatible with all formats from mono to 7.1
Bypassable 4th order 80 Hz active crossover for maximum compatibility with consumer reproduction
0 and +10 dB LFE gain and 4-mode LFE processing:
LFE to subwoofer and left/right
LFE to subwoofer only up to 80 Hz
LFE to subwoofer only up to 120 Hz
LFE to subwoofer with no filtering - for daisy chaining subwoofers and external signal processing systems
Independent control of bass management for front and back channels
Built-in 8 channel system volume control with remote control: NRC 1 and RS-232
Acoustical controls adapt the subwoofer's response to the environment
Output level
Low cut
Parametric equalizer
45° step phase control with a built-in test signal


Larger systems and Plane Wave Bass Arrays™ maybe constructed using the Sum output
Remoteable electronics (REK 3 and an SC nn) for installation convenience, less cabling, and convenience of use
Integrated electronic limiter for amplifier and driver protection
Low heat dissipation amplifier
Electronics can be remotely powered on with two modes of operation (0 V and 12 V trigger)

Robust driver and cabinet



Low frequency extension for main loudspeakers down to 18 Hz
Low distortion magnetically shielded long-throw driver
Reduced bass compression at high SPL from generously proportioned bass reflex ports
Allows main loudspeakers to play louder and with lower distortion
Wooden cabinet with a tough painted finish (anthracite or silver) and high density rubber isolating feet
Excellent self-damping properties leading to minimal cabinet resonances
Cabinet look conforms to the family design
