Dramastic Audio Obsidian 500 Stereo Compressor

SKU: Dramastic Audio Obsidian 500 Stereo Compressor
$ 3,495.00 -29%
$ 2,495.00

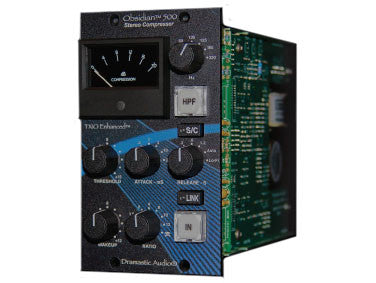

Dramastic Audio Obsidian 500 Stereo Compressor

Stereo VCA program compressor with TXIO-enhanced transformer balanced I/O. 500 series module, double-wide

The Dramastic Audio Obsidian 500 Series Compressor’s circuit design is the same as the 19” big brother, but with some flexibility with the selectable High Pass Filter. The 500 version also adds one ratio for you to use, with the gentile 1.5;1 position.

In addition to the release of the Obsidian 500, there will be a Dual Mono expansion module available which gives you independent metering for each channel, and the addition of the inputs to the Side Chain, which is crucial for many applications.

Dramastic Obsidian 500 Features
    •    TXIO Enhanced Transformer Balanced I/O
    •    Precision Stepped Controls To Accurately Recall Settings
    •    VCA Feed-Forward Compression
    •    Selectable Internal High Pass Filter
    •    Expansion Port For Additional Features
    •    Link Multiple Modules Together
    •    Selectable Pad Settings
    •    Superior Imaging

    Specifications

    • Ratio settings: 1.5:1, 2:1, 4:1, 8:1, 10:1, 12:1
    • Attack dontrol Range: 0.1, 0.3, 1.0, 3.0, 10, and 30 mSec
    • Release control range: 0.1, 0.3, 0.6, 1.2 sec, AUTO and Lo-Fi
    •  HPF settings: 30Hz, 60Hz, 105Hz, 125Hz, 185Hz, 330Hz
    • Makeup Gain Output: 12db
    • Analog Input: XLR balanced (pin 2 hot), 10k ohms (transformer balanced)
    • Analog Output
      • Connectors: XLR balanced (pin 2 hot)
      • Impedance: 600k ohms (transformer balanced)
      • Max output: +24dbu (above 0dbu with 1% THD ), +23.7dbu (onset of clipping)
      • Noise: < -86dbu in bypass, < -80dbu with compressor IN
      • THD: .005% @ 1kHz
      • IMD: In Bypass .054%, With compressor IN and no compression .069%
      • Frequency response: 10Hz to 50kHz, @ 10Hz – 0.04db, @ 20kHz – 0.36db
      • Cross talk: Measured referenced to +20dbu, -109db @ 1kHz, -73db @ 20kHz
    • Side-Chain Input
      • Connectors: XLR balanced (pin 2 hot)
      • Impedance: >20k ohms (electronically balanced)
      • HPF: 125Hz 12db/octave
    • Finish: Black Painted
    • Chassis: 2 piece cold rolled steel
    • Chassis ground: 5-way binding post
    • Dimensions: 19”x1.75”x8”
    • Weight: 8 lbs 5oz
    • AC Power: 115/230VAC50–60Hz, 3 Pin IEC power connector
    • 1 Year Limited Warranty
