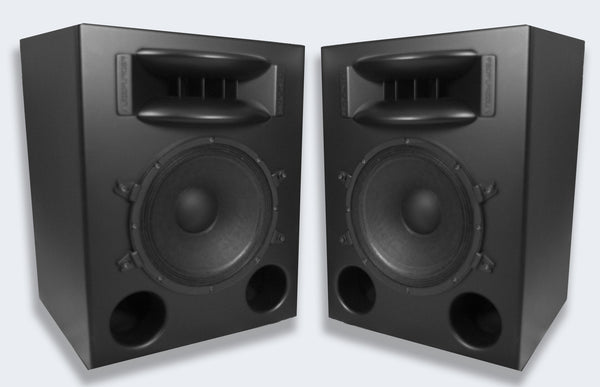

1X12 Two-way or three way active DSP main monitor system with MF "MidFocus" horn, PAIR.
Power, Precision and Punch. That’s how engineers are describing the TEC-Nominated Augspurger Solo 12MF. Using our new MidFocus horn (MF) - 30% smaller than the classic Augspurger horn - we've developed a true compact main monitor that can fit in almost any room, and in almost any budget. Set the Solo 12MF up on a pair of stands in a zone where a closer, tighter placement location to the mix position is required. Be prepared to be blown away with astonishing clarity, velocity, and enough low end to go sub-less. Like all Augspurger active systems, the Solo 12MF lets you precision-tune the monitors to any room. And at 1200watts for a two-way system, you’ll have power to burn (at a price that will not burn up your Ben Franklins)!
The Solo 12MF is a true main monitor in the size of a midfield, expertly hand-crafted in the USA. Power, Precision and Punch.
(2) Two-way main monitor cabinets loaded with ONE 12” LF driver and one 4’’ high compression driver with beryllium diaphragm on an Augspurger-designed rock maple MF (MidFocus) horn.
(2)SXE2/2500 two-way Class D networkable amplifiers (1400W, 800W & 250W) with Active DSP providing crossover, limiting, driver alignment and system equalization & control software, rack mounted.
Dims: 24”H x 18”W x 17”D / 60.96 x 45.72 x 43.18 cm
Finishes: Matte Black and matte silver finishes are standard at no upcharge. Optional paint finishes to match any color, including metallic flake and pearlescent high gloss finishes and available.
Download the flyer: Solo_12_Flyer_2
Sonic Scoop Press Blurb: Augspurger Launches Solo 12MF
2-way Main monitor with optional 3-way amp to power LF/subwoofer via Speakon NL2 connection
1.5” High density fiberboard baffle, 1” high density fiberboard sides and back, recycled cotton fiber fill.
Single cut, rock maple “Mid-field” horn (MF) 30% smaller than classic Augspurger horn.
4” 99.8% Pure beryllium diaphragm by TruExtent, powered by neodymium compression driver with ultra-low distortion capable of 125w RMS/250w program for exceptionally high SPL without distortion, 16 ohm, 104db sensitivity.
12” Carbon fiber loaded paper cone woofer with ferrite magnet, 6.0MM X max, 300w RMS/600w program, 8 ohm.
2-Way systems: DSP-2 2-way D-Class ultra-low distortion, high output amplifier with DSP controlled crossover, eq, phase, driver alignment, limiting (user optional) and level control. HF amp channel with 125w at 16 ohm, LF channel with 500w at 8 ohm
3-Way systems: DSP-3 3-way D-Class ultra-low distortion, high output amplifier with DSP controlled crossover, eq, phase, driver alignment, limiting (user optional) and level control. HF amp channel with 125w at16 ohm, MF channel with 500w at 8 ohm, LF/Sub channel with 1000w at 4 ohm
Control: Software: Via USB with proprietary PC Software offering 16 FIR user definable EQ Filters per band, Phase Alignment, Time alignment of each band, limiting and level control.
Frequency Response: 31Hz - 20kHz ±1.5db, no sub. 24Hz - 20kHz ±1.5db with 12” sub
SPL: 114db without sub, 120db with 12” sub
AC Power Input: 110 to 240 Auto sensing, internally fused
Cooling: Convention cooled, rear mounted heat sinks, no fans
Weight: 65lbs each
Cabinet Dimensions: 24” H x 18” W x 20” D
