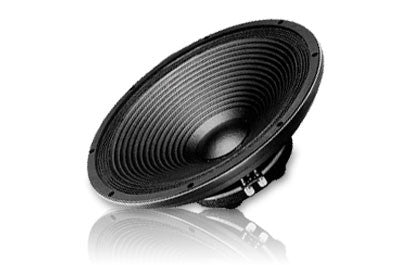

The TL-1801 from TAD (Technical Audio Devices) is a low-frequency loudspeaker featuring an 18-inch (460mm) driver. It features a high power maximum capacity of 800W thanks to the combined use of a 100mm diameter x 23mm winding depth, edgewise-wound, oxygen-free copper voice coil, a ferrite magnetic circuit with a high flux density of 11,200G, a lightweight transducer system using a cone made of highly rigid pulp and Kevlar fibers, and an advanced heat radiation design. As a result, powerful sound reproduction with a minimum of distortion is possible, even with high-power input.
The frame for the driver is made of rigid die-cast aluminum alloy to support the magnetic circuit and to allow the transducer system to reproduce powerful, accurate bass. Frame resonance is suppressed by the seven frame arms. The cone is laminated with macromolecular film, and its surface specially treated to make it water-repellent and to prevent cone breakup from degrading sound quality.
Lightweight moving parts are employed and the voice coil is of the long-travel design, to ensure a high sensitivity of 96.5dB/1W, an exceptionally high figure for its size. The large input terminal permits direct connection of speaker cables up to 14mm² (6 Gauge) in diameter.
|Nominal Impedance||8 Ohm|
|Lowest Resonance Frequency (Fo)||26 Hz|
|Frequency Range||26-2600 Hz|
|Rated Input Power||200 W|
|Maximum Input Power||800 W|
|Sound Pressure Level||96,5 dB/W (1m)|
|Total Magnetic Flux||282.200 Mx|
|Magnetic Flux Density||11.200 G|
|Highest Recommended Crossover||800 Hz|
|Recommended Enclosure||170 - 500 liter|

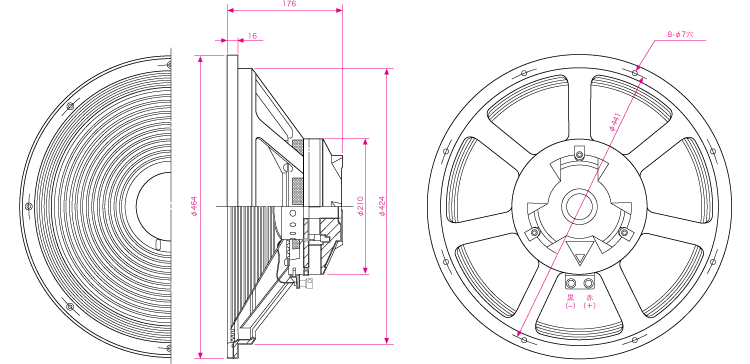

|Effective Piston Diameter||394.0 mm|
|Baffle Opening||426.0 mm|
|Mounting Dimensions||441.0 mm|
|Dimensions (diameter x depth)||464 x 176 mm|
